Lovato HR5XS21 Socket

Product Description

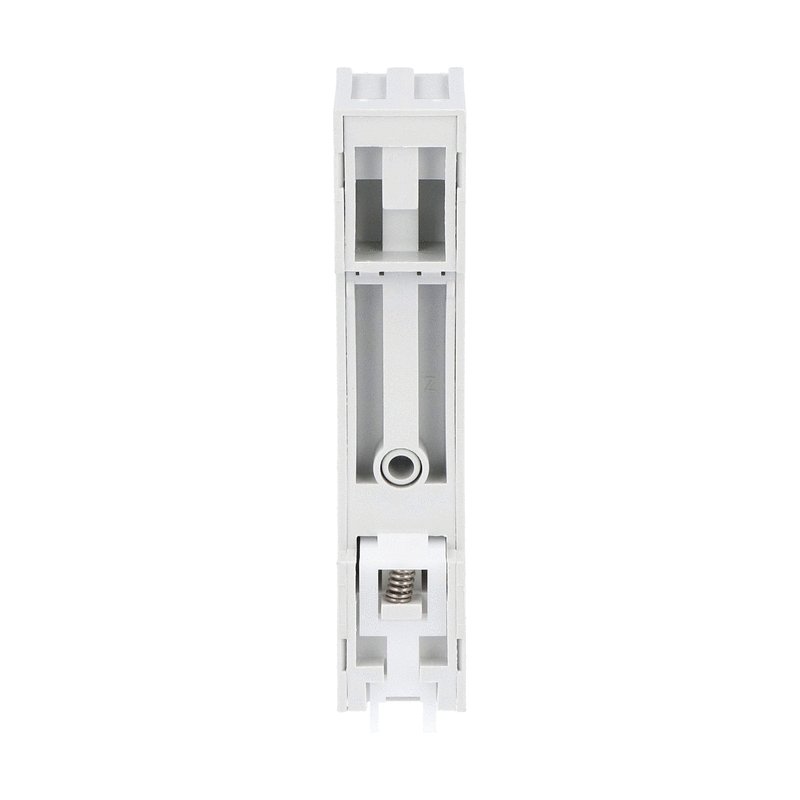

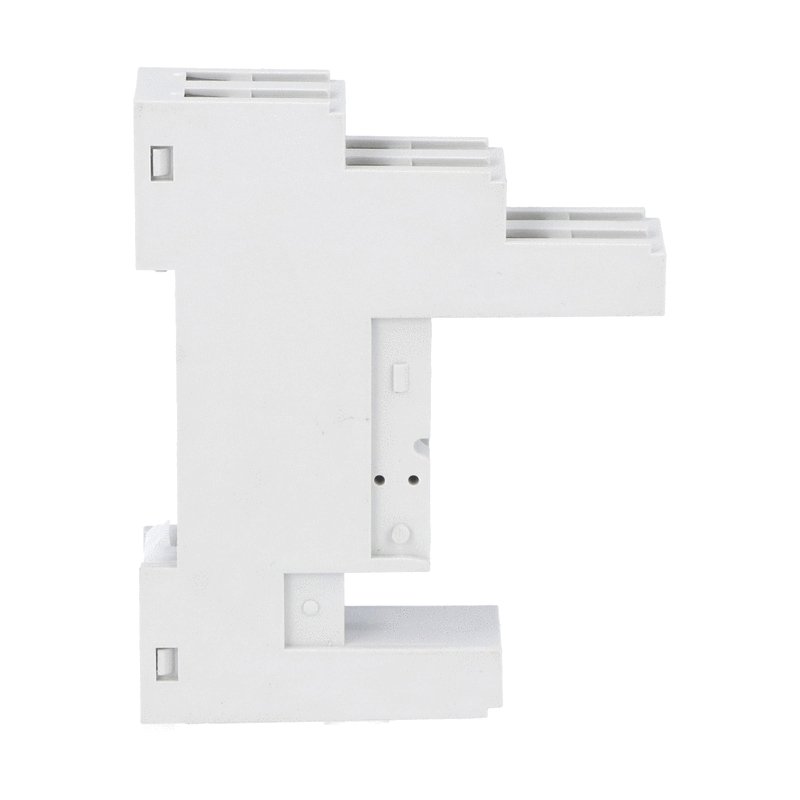

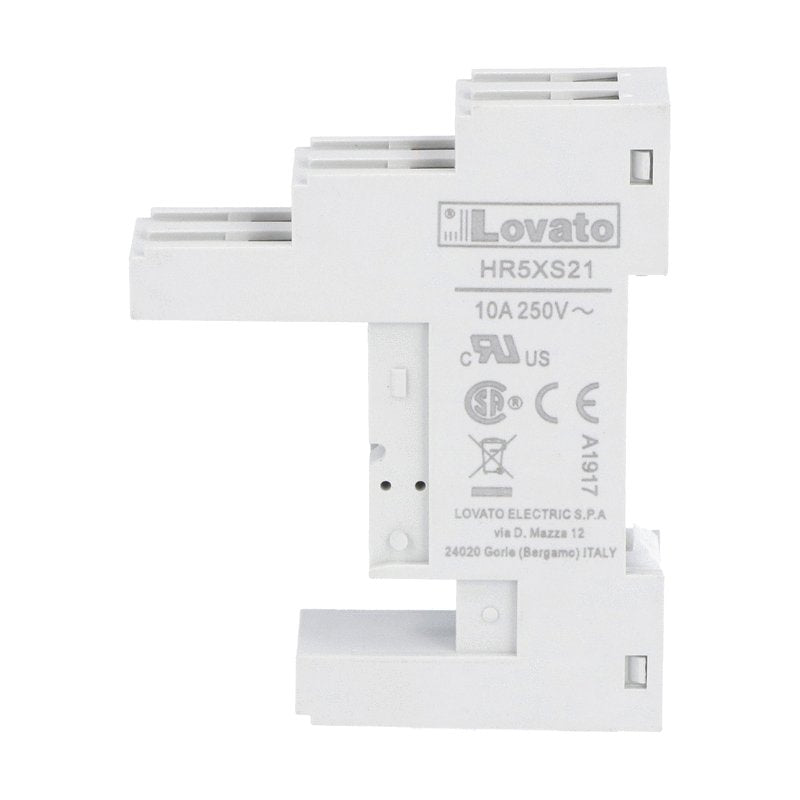

The LOVATO HR5XS21 is a socket for relays, designed for fitting on DIN rails or screws. It features screw terminals with contact terminals all on the upper side. This socket is compatible with HR30 and HR50 series relays.

• Socket for relay
• Fitting on DIN rail or screws
• Screw terminals

Product Highlights

Socket for relays with screw terminals, designed for DIN rail or screw mounting.

Product Information

Standard Information

• Brand: LOVATO
• Manufacturer Part Number: HR5XS21

Technical Specifications

• Product designation: SOCKET
• Product type designation: HR5XS21
• Rated insulation voltage Ui IEC/EN: 250V
• Rated impulse withstand voltage Uimp: 4kV
• Max socket terminal tightening torque: 0.6Nm
• Socket screw tightening tool (cross / flat blade): Phillips 1/4.5mm
• Conductor section AWG/Kcmil min: 20
• Conductor section AWG/Kcmil max: 14
• Conductor section IEC min: 0.5 mm
• Conductor section IEC max: 2.5 mm
• Fixing: DIN rail or with screws
• ETIM 8.0: EC001456 - Relay socket
• Accessories for: HR30 …;HR50 …
• Brand: LOVATO Electric
• Manufacturer Part Number: HR5XS21
• Primary Type: Relay Sockets
• Series: HR Series
• Manufacturer: Lovato
• Family Series: Lovato Relays
• Description: Socket For HR30/HR50, Screw Term
• Max Voltage: 250 V
• Current Rating: 10 A
• Comments: Screw Terminals
• Type of relays accessories: socket
• Number of pins: 8
• Current rating: 10A
• Rated voltage: 250V AC
• Mounting: for DIN rail mounting
• Application - series/manufacturer: HR30, HR50
