LOVATO Lovato GAZ100UL Enclosed Switch Disconnector 100A
LOVATO Lovato GAZ100UL Enclosed Switch Disconnector 100A
LOVATO Lovato GAZ100UL Enclosed Switch Disconnector 100A
LOVATO Lovato GAZ100UL Enclosed Switch Disconnector 100A

Lovato GAZ100UL Enclosed Switch Disconnector 100A

Brand: LOVATO
SKU: GAZ100UL
Availability: In Stock

Ships same day if ordered by 12 pm
$275.57
$275.57
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

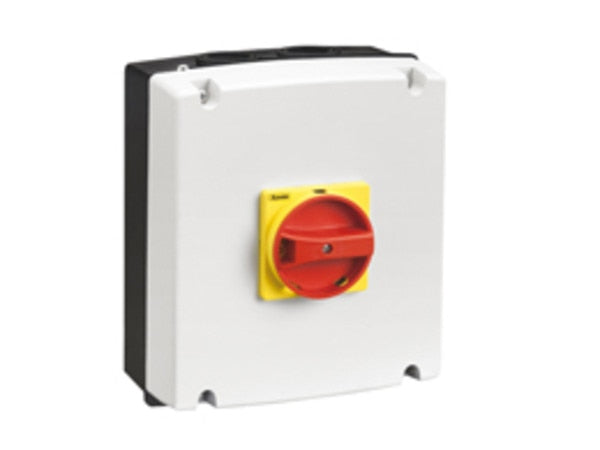

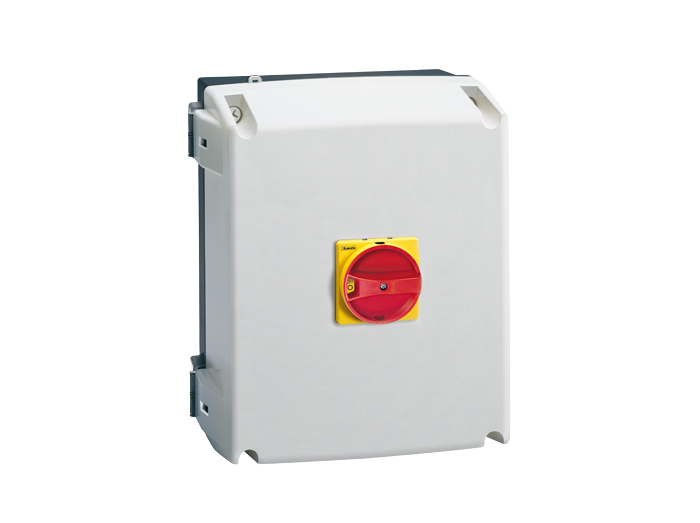

The Lovato GAZ100UL is a UL/CSA type 4/4X non-metallic enclosed three-pole switch disconnector with a rotating red/yellow handle and a 100A current rating. Enclosure dimensions are 220x280x170mm/8.7x11x6.7''. It is suitable for various applications requiring a reliable disconnect solution.

  • UL/CSA type 4/4X non-metallic enclosure
  • Three-pole configuration
  • Features a rotating red/yellow handle

Product Highlights

The Lovato GAZ100UL enclosed switch disconnector offers a robust and certified solution for disconnecting power in a variety of industrial and commercial settings.

Product Information

Standard Information

  • Brand: LOVATO
  • Manufacturer Part Number: GAZ100UL
  • Country of Origin: ITALY
Technical Specifications
Product designation
Enclosed switch disconnector
Product type designation
GAZ
Number of poles
3
Operating voltage type
AC
IEC Conventional free air thermal current Ith ≤ 40°C
100 A
Rated insulation voltage Ui IEC/EN
1000 V
Rated impulse withstand voltage Uimp
8 kV
Operating current Ie AC21A 400V
100 A
Operating current Ie AC21A 500V
100 A
Operating current Ie AC21A 690V
100 A
Operating current Ie AC22A 400V
100 A
Operating current Ie AC22A 500V
100 A
Operating current Ie AC22A 690V
100 A
Operating current Ie AC23A 400V
100 A
Operating current Ie AC23A 500V
80 A
Operating current Ie AC23A 690V
47 A
Power dissipation per pole max
4 W
Rated operational power AC23A 400V
55 kW
Rated operational power AC23A 690V
45 kW
Conditional short-circuit current (rms)
50 kA
Short-circuit protection with fuse
gG100 Class/A
Making capacity AC23A 400V
1000 A
Breaking capacity AC23A 400V
800 A
Mechanical life
30000 cycles
Electrical life AC21A
30000 cycles
Operating position
normal Vertical plan
Terminals type
Pillar
Terminals width
12.4 mm
Terminals height
10.4 mm
Terminals screw
M8
Terminals tool
Metric Allen key 4
Tightening torque for terminals min
5 Nm
Tightening torque for terminals max
6 Nm
Tightening torque for terminals min (Ibin)
45
Tightening torque for terminals max (Ibin)
54
Conductor section IEC min
4 mm²
Conductor section IEC max
70 mm²
Conductor section AWG/kcmil min
12
Conductor section AWG/kcmil max
kcmil 1
General purpose current rating
100 A
Operating voltage max
600 V
Horsepower/FLA current single phase motor 120V
5/56 HP/A
Horsepower/FLA current single phase motor 240V
10/50 HP/A
Horsepower/FLA current three phase motor 240V
30/80 HP/A
Horsepower/FLA current three phase motor 480V
50/65 HP/A
Horsepower/FLA current three phase motor 600V
50/52 HP/A
Short circuit rating
50 kA rms
Short circuit rating with fuse
J/100 Class/A
Operating temperature min
-25 °C
Operating temperature max
+55 °C
Storage temperature min
-40 °C
Storage temperature max
+70 °C
Max altitude
3000 m
Frontal IP degree
IP65
UL degree of protection
UL/CSA Type 4/4X
IP degree of protection
IP65
Pollution degree
3
ETIM 8.0
EC000216 - Switch disconnector
Brand
LOVATO Electric
Manufacturer Part Number
GAZ100UL
Series
GA Series
NEMA Rating
NEMA 4, NEMA 4X
AC Voltage
600 VAC
Operator Type
Selector - Red, Yellow
Enclosure Composition
Non-Metallic
Approvals
CSA, UL
