Lovato GAZ100BUL Switch Disconnector 100A

Product Description

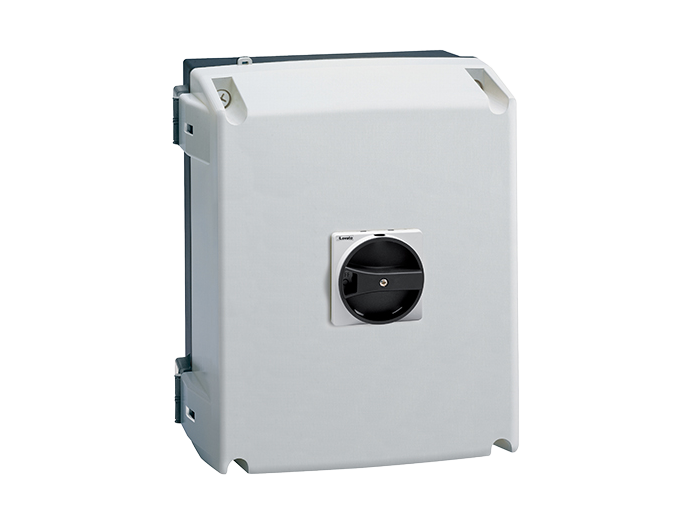

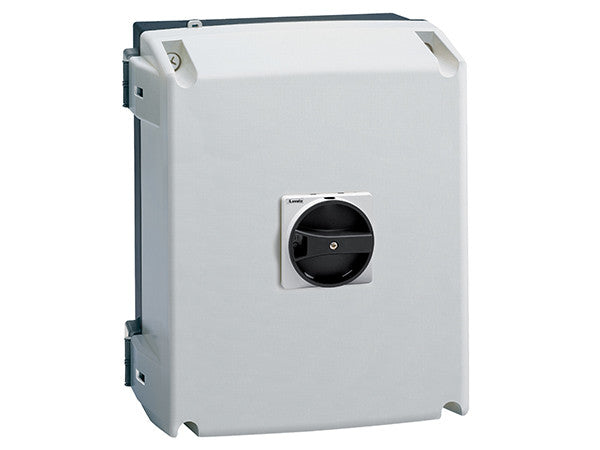

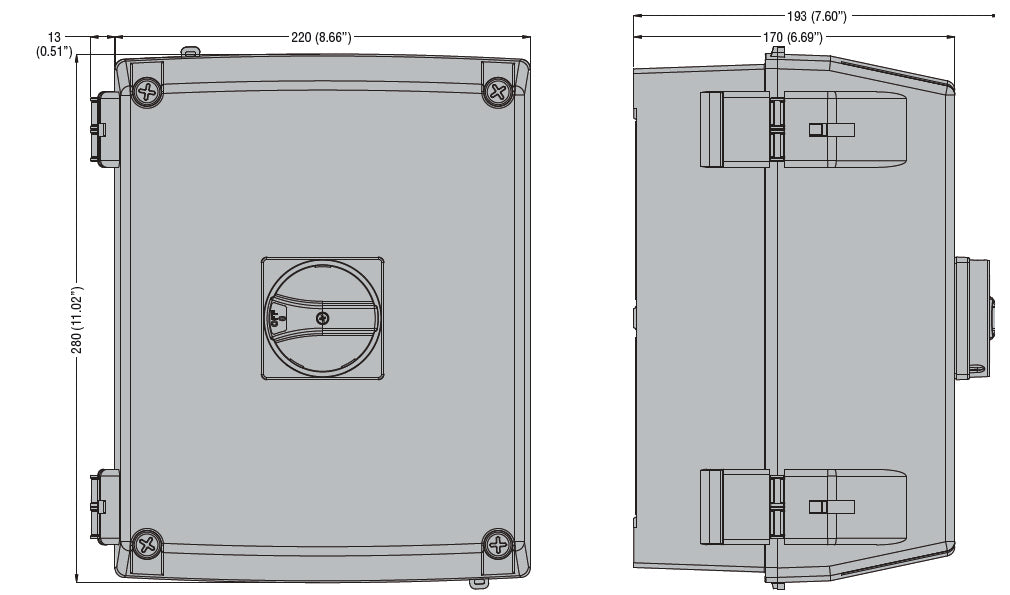

The Lovato GAZ100BUL is an enclosed switch disconnector, three-pole, with a rotating black handle. Rated at 100A, it is designed for AC operating voltage. The enclosure dimensions are 220x280x170mm/8.7x11x6.7''. It is suitable for various applications requiring a reliable disconnect switch.

• UL/CSA type 4/4X non-metallic enclosured switch disconnector
• Three-pole
• Rotating black handle

Product Highlights

The Lovato GAZ series switch disconnector ensures safe and reliable disconnection in industrial and commercial applications.

Product Information

Standard Information

• Brand: LOVATO
• Manufacturer Part Number: GAZ100BUL
• Country of Origin: ITALY

Technical Specifications

• Product designation: Enclosed switch disconnector
• Product type designation: GAZ
• Number of poles: 3
• Operating voltage type: AC
• IEC Conventional free air thermal current Ith 40 0C: 100 A
• Rated insulation voltage Ui IEC/EN: 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400V: 100 A
• Operating current Ie AC21A 500V: 100 A
• Operating current Ie AC21A 690V: 100 A
• Operating current Ie AC22A 400V: 100 A
• Operating current Ie AC22A 500V: 100 A
• Operating current Ie AC22A 690V: 100 A
• Operating current Ie AC23A 400V: 100 A
• Operating current Ie AC23A 500V: 80 A
• Operating current Ie AC23A 690V: 47 A
• Power dissipation per pole max: 4 W
• Rated operational power AC23A 400V: 55 kW
• Rated operational power AC23A 690V: 45 kW
• Conditional short-circuit current (rms): 50 kA
• Short-circuit protection with fuse: gG100 Class/A
• Making capacity AC23A 400V: 1000 A
• Breaking capacity AC23A 400V: 800 A
• Mechanical life: 30000 cycles
• Electrical life AC21A: 30000 cycles
• Operating position: normal
• Allowable operating position: Any
• Terminals type: Pillar
• Terminals width: 12.4 mm
• Terminals height: 10.4 mm
• Terminals screw: M8
• Terminals tool: Metric Allen key 4
• Tightening torque for terminals min: 5 Nm
• Tightening torque for terminals max: 6 Nm
• Tightening torque for terminals min (Ibin): 45 Ibin
• Tightening torque for terminals max (Ibin): 54 Ibin
• Conductor section IEC min: 4 mm
• Conductor section IEC max: 70 mm
• AWG/kcmil min: 12
• AWG/kcmil max: kcmil 1
• General purpose current rating (UL): 100 A
• Operating voltage max (UL): 600 V
• Horsepower/FLA current single phase motor 120V (UL): 5/56 HP/A
• Horsepower/FLA current single phase motor 240V (UL): 10/50 HP/A
• Horsepower/FLA current three phase motor 240V (UL): 30/80 HP/A
• Horsepower/FLA current three phase motor 480V (UL): 50/65 HP/A
• Horsepower/FLA current three phase motor 600V (UL): 50/52 HP/A
• Short circuit rating (UL): 50 kA rms
• Short circuit rating with fuse (UL): J/100 Class/A
• Operating temperature min: -25 0C
• Operating temperature max: +55 0C
• Storage temperature min: -40 0C
• Storage temperature max: +70 0C
• Max altitude: 3000 m
• Frontal IP degree: IP65
• UL degree of protection: UL/CSA Type 4/4X
• IP degree of protection: IP65
• Pollution degree: 3
• ETIM 8.0: EC000216 - Switch disconnector
• Type of product: Switch disconnectors
• Type of enclosure: Plastic enclosure - Black Handle
• Type of operating voltage: AC
• IEC Conventional free air thermal current Ith [A]: 100
• Type of installation: Enclosed
• Manufacturer: Lovato
• Family Series: Lovato Disconnect Switches
• Current Rating: 100 A
• AC Voltage: 600 VAC
• Operator Type: Selector - Black
• Mounting: Wall
• Enclosure Composition: Non-Metallic
• Protection Rating: IP65
• Approvals: cULus, EAC
• Brand: Lovato Electric
• Number Of Poles: 3
• Component Type: Switch Disconnect
