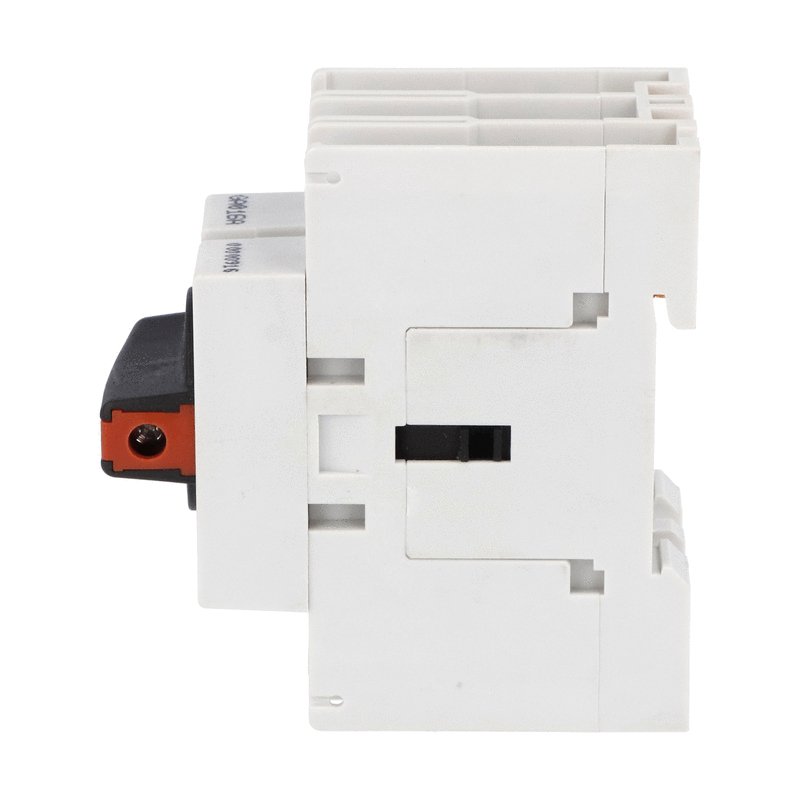

Lovato GA025A Switch Disconnector 25A

Brand: LOVATO
SKU: GA025A
Availability: In Stock

Ships same day if ordered by 12 pm
$91.13
$91.13
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The LOVATO GA025A is a three-pole switch disconnector with a direct operating version and a current rating of 25A. It is designed for applications requiring reliable disconnection. The compact size and modular design allow for easy installation and integration. Suitable for various industrial and commercial settings.

  • Three-pole switch disconnector
  • Direct operating version
  • Compact and modular size

Product Highlights

The LOVATO GA025A switch disconnector offers a reliable solution for disconnecting electrical circuits with ease of installation.

Product Information

Standard Information

  • Brand: LOVATO
  • Manufacturer Part Number: GA025A
  • Country of Origin: Italy
Technical Specifications
Product designation
Switch disconnector
Product type designation
GA
Number of poles
3
Operating voltage type
AC
IEC Conventional free air thermal current Ith ≤ 40°C
25 A
Rated insulation voltage Ui IEC/EN
1000 V
Rated impulse withstand voltage Uimp
8 kV
Operating current Ie AC21A 400V
25 A
Operating current Ie AC21A 500V
25 A
Operating current Ie AC21A 690V
25 A
Operating current Ie AC22A 400V
25 A
Operating current Ie AC22A 500V
25 A
Operating current Ie AC22A 690V
25 A
Operating current Ie AC23A 400V
25 A
Operating current Ie AC23A 500V
25 A
Operating current Ie AC23A 690V
25 A
Power dissipation per pole max
0.4 W
Rated operational power AC23A 400V
11 kW
Rated operational power AC23A 690V
22 kW
Rated short time current (1s) Icw (rms)
0.8 kA
Conditional short-circuit current (rms)
10 kA
Short-circuit protection with fuse
gG25 Class/A
Making capacity AC23A 400V
400 A
Breaking capacity AC23A 400V
320 A
Mechanical life
100000 cycles
Electrical life AC21A
100000 cycles
Operating position
normal
Vertical plan
allowable
Fixing
Screw / DIN rail 35mm
Terminals type
Pillar
Terminals width
5.6 mm
Terminals height
6.5 mm
Terminals screw
M4
Terminals tool
Phillips 2
Tightening torque for terminals min
16 Ibin
Tightening torque for terminals max
18 Ibin
Conductor section IEC min
0.75 mm²
Conductor section IEC max
16 mm²
AWG/kcmil min
18
AWG/kcmil max
6 kcmil
UL Standard
UL60947-4-1
General purpose current rating
25 A
Operating voltage max
600 V
Horsepower/FLA current three phase motor 240V
7.5/22 HP/A
Horsepower/FLA current three phase motor 480V
15/21 HP/A
Horsepower/FLA current three phase motor 600V
20/22 HP/A
Short circuit rating
5 kA rms
Short circuit rating with fuse
RK5/30 Class/A
Operating temperature min
-25 °C
Operating temperature max
55 °C
Storage temperature min
-40 °C
Storage temperature max
70 °C
Max altitude
3000 m
Frontal IP degree
IP20
Pollution degree
3
ETIM 8.0
EC000216 - Switch disconnector
Amperage
25 AMP
Mounting
Base mounted
Operation
Direct operating
Brand
Lovato Electric
Component Type
Switch Disconnect
Current Rating
25 A
Product Series
GA
Family Series
Lovato Disconnect Switches, GA Series
Description
Disconnect Switch, 3-P, 25A/600V, Non-Fusible, Panel/DIN Mount, UL508 Listed
Poles
3
Operator Type
Selector
Approvals
CSA, UL
Net Weight
0.3219 lbs
Gross Weight
0.3219 lbs
Condition
New – Open box
Country of Origin
Italy
Type
actuator handle
Model
GA025A
MPN
GA025A
Category
Business & Industrial
Manufacturer Part Number
GA025A
Series
GA Series
Numeric ID
4079255
