Product Description

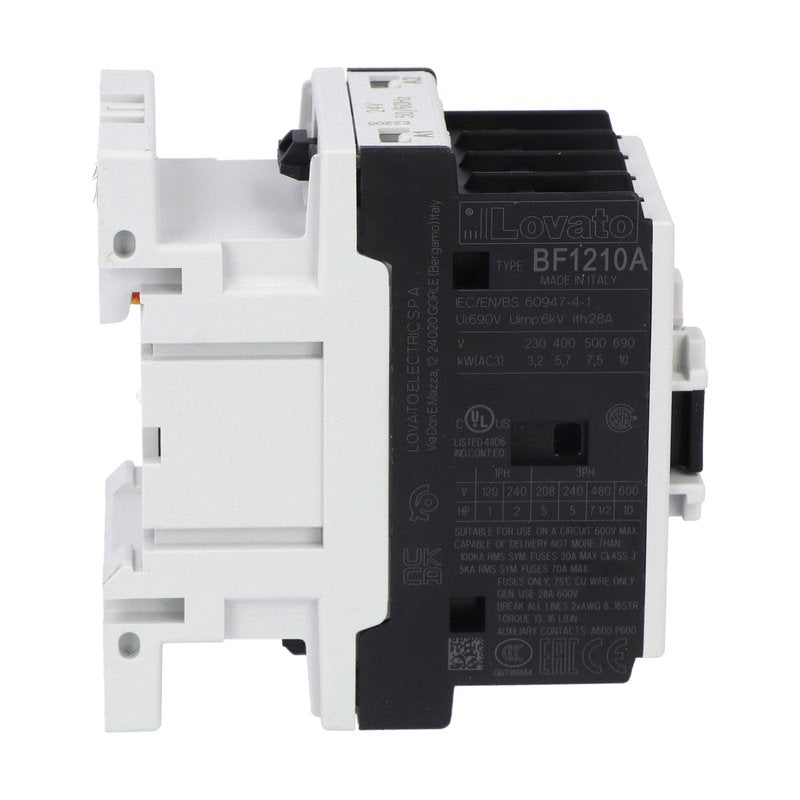

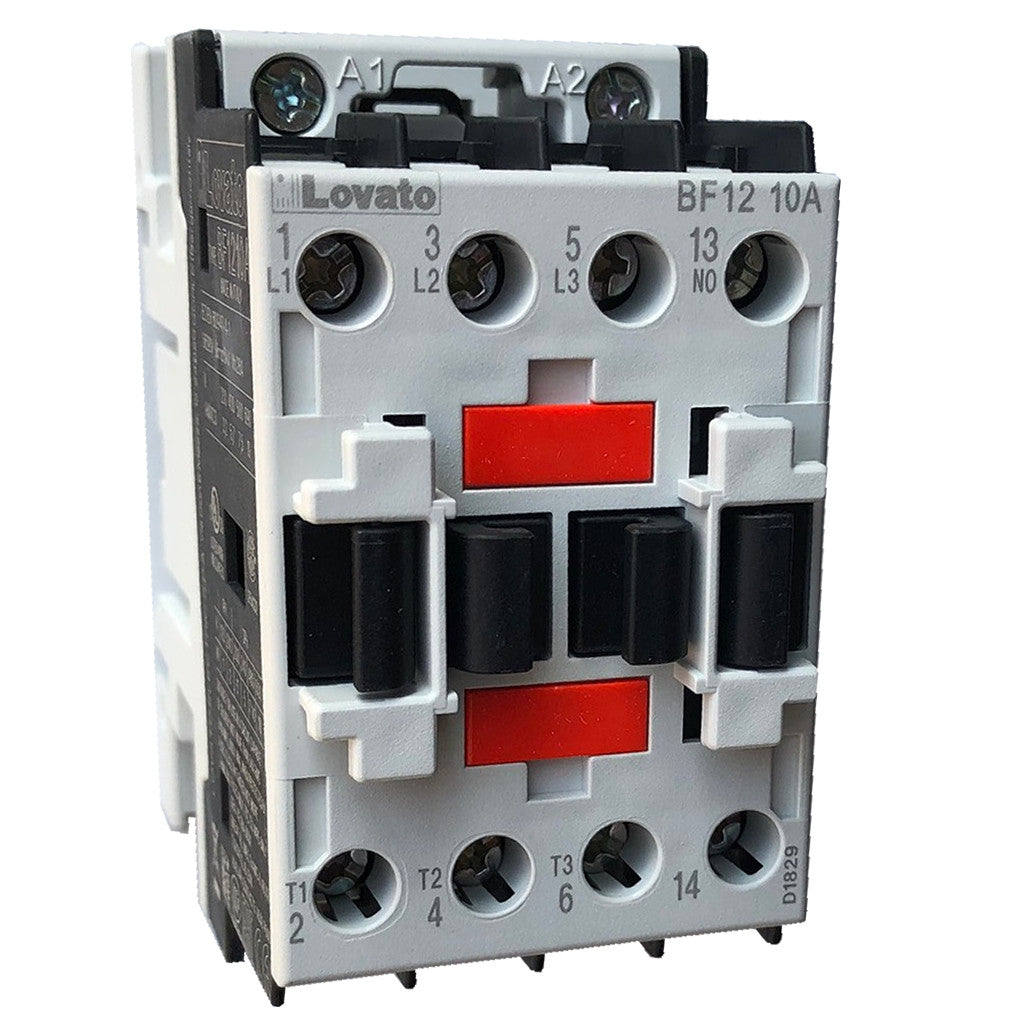

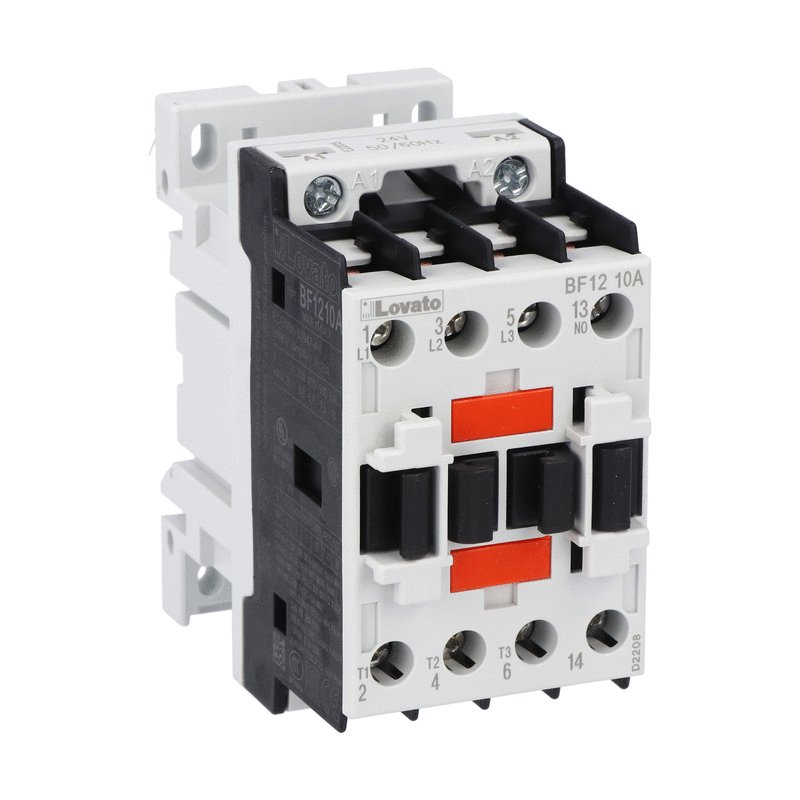

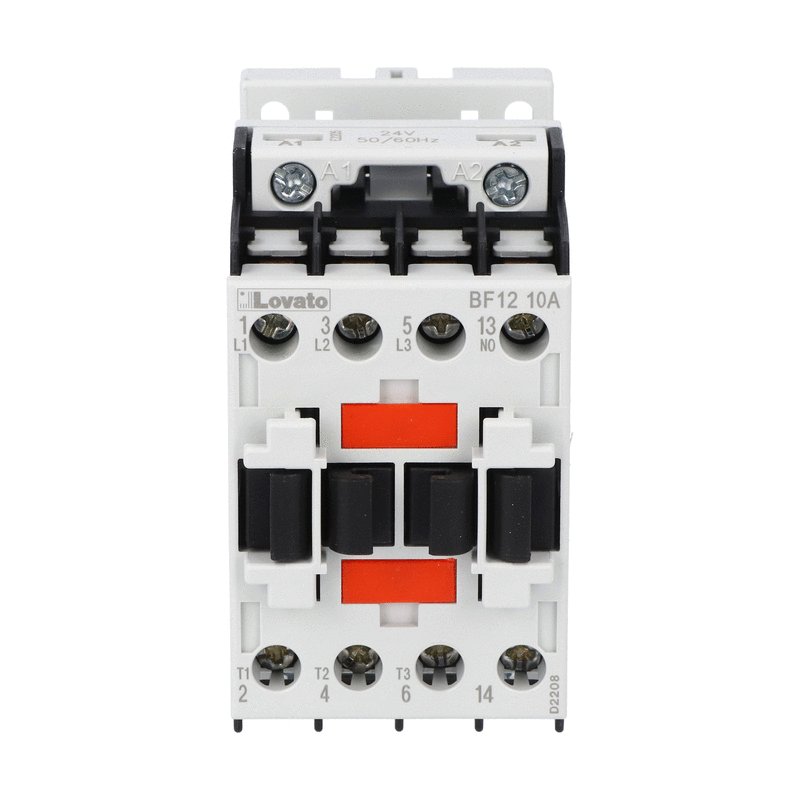

The LOVATO BF1210A12060 is a three-pole contactor with an IEC operating current Ie (AC3) of 12A and an AC coil operating at 60Hz with 120VAC. It features one normally open (1NO) auxiliary contact. This contactor is designed for various applications requiring reliable switching performance.
- Three-pole contactor
- IEC operating current Ie (AC3) = 12A
- AC coil 60Hz
Product Highlights
Reliable three-pole contactor with 12A current rating and 1NO auxiliary contact.
Product Information
Standard Information
-
Brand: LOVATO
-
Manufacturer Part Number: BF1210A12060
-
Country of Origin: United States
Technical Specifications
-
Type of product: Contactors
-
Number of poles: 3
-
Type of coil: AC coil 60Hz
-
Rated coil voltage [V]: 120
-
IEC operating current Ith (AC1) [A]: 28
-
IEC operating current and power Ie (AC3) 400V [A/Kw]: 12A / 5.7Kw
-
UL/CSA horsepower ratings 480V [HP]: 7.5
-
Type of built-in auxiliary contacts: 1NO
-

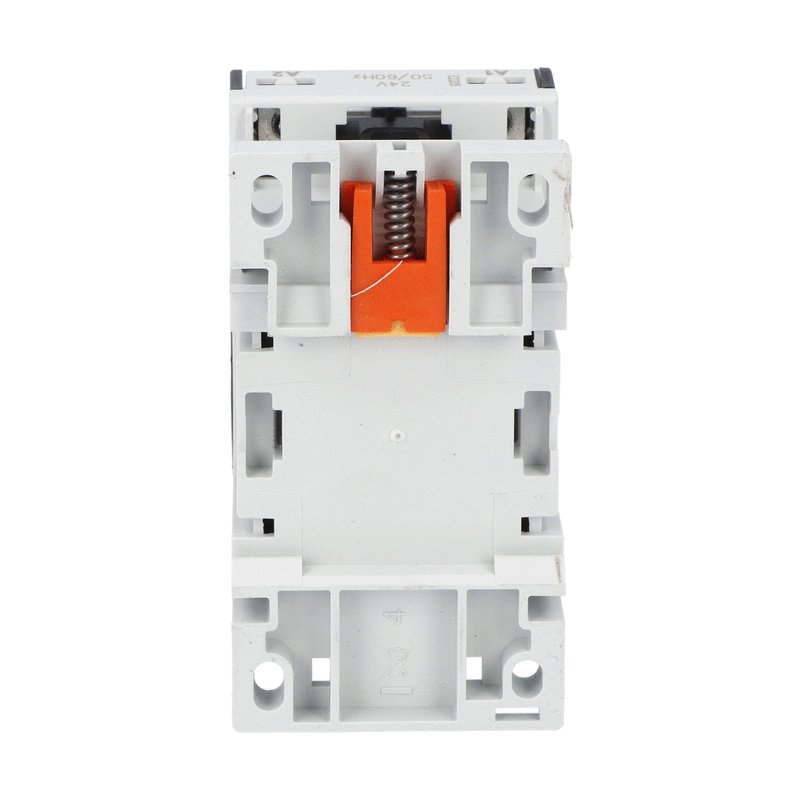

Type of mounting: Screw / DIN rail 35mm
-
Order code: BF1210A12060
-
AMP Rating: 12 AMP AC-3
28 AMP AC-1
-
Coil Voltage: 120 volt AC
-
Horsepower: 5 H.P. @ 230 volt
7.5 H.P. @ 460 volt
-
Auxiliary Contact: Normally Open (N.O.)
-
Terminals: Screw
-
Brand: LOVATO Electric
-
Current Rating: 12 A
-
Horsepower, Max, 3 Phase, at 480 V: 7.5
-
Manufacturer Part Number: BF1210A12060
-
Numeric ID: 4079255
-
Series: BF Series
-
Type: AC
-
Voltage Rating: 120 VAC
-
Manufacturer: Lovato
-
Product Series: BF
-
Family Series: Lovato Contactors, BF Series
-
Description: Contactor, 3-P N/O, 120VAC Coil, Includes 1-N/O Auxiliary Contact, AC3=12A
-
Nominal Coil Voltage: 120 VAC
-
Coil Type: Magnetic
-
Poles: 3NO
-
Termination: Screw
-
General Purpose (AC1): 20-28 A
-
UL Motor Switching (AC3): 12 A
-
Net Weight: 0.7915 lbs
-
Gross Weight: 0.7915 lbs
