Lordahl SG-1 Seat Gauge

Product Description

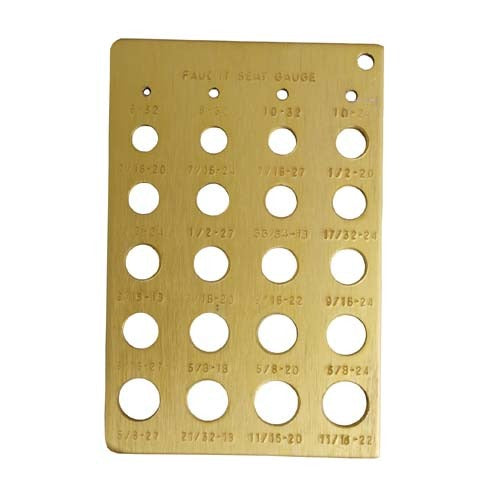

The LORDAHL SG-1 is a seat gauge used to measure and verify valve seat dimensions during service and repair work. Seat gauges give technicians a reliable reference for checking seat depth, width, or profile to ensure proper valve seating before reassembly. This type of tool is commonly used by licensed plumbers, HVAC technicians, and mechanical contractors working on valve bodies, faucets, or similar serviceable components where seat condition directly affects leak-free performance.

The SG-1 is suited for service environments where valve seat inspection or measurement is part of the standard repair workflow. It is a bench or field tool typically used alongside seat dressers or reamers during valve overhaul procedures in both residential and light commercial applications.

Key Features

• Designed for measuring and verifying valve seat dimensions
• Supports accurate fit checks before valve reassembly
• Compact gauge format for field or shop use
• Compatible with standard valve seat service workflow

Compatibility

Designed as a seat measurement gauge for use in valve service and repair applications where seat geometry verification is required.

Installation Notes

This gauge is a measurement tool and does not require permanent installation. Ensure the valve or fitting is fully depressurized and isolated before inspection. Use in conjunction with appropriate seat dressing or reseating tools as required by the repair procedure. Follow applicable plumbing or mechanical codes for the jurisdiction where service is performed.

Technical Specifications

• Product Type: Seat Gauge

Standard Information

• Brand: LORDAHL
• Manufacturer Part Number: SG-1
