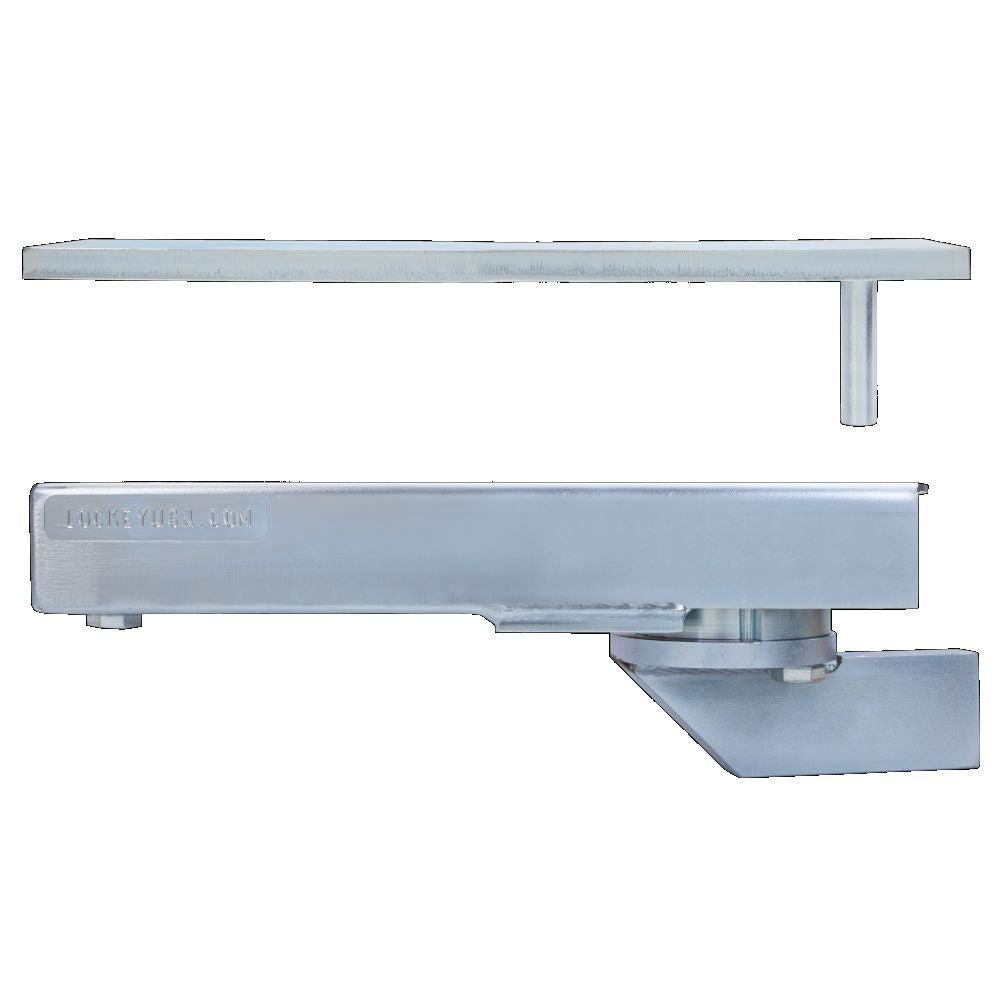

Lockey TB950 Magnum Gate Closer and Hinge System

Product Description

The LOCKEY TB950 Magnum Gate Closer is an all-in-one closer and hinge system designed for high-use gate applications. It combines the gate closing mechanism and hinge into a single unit, reducing hardware count and simplifying installation on heavy gates ranging from 50 to 250 pounds. The TB950 is built for demanding conditions where gate cycles are frequent and reliable self-closing action is required. Licensed contractors and experienced gate installers working on commercial or residential perimeter fencing will find this unit suited to high-traffic entry points where a standard spring hinge alone is insufficient.

The TB950 is intended for gates weighing between 50 and 250 pounds, making it appropriate for heavy wooden, metal, or composite gate panels. Typical installation scenarios include pool enclosures, commercial yards, parking facilities, and residential estates where code-compliant self-closing gates are required. The integrated design means a single component handles both the pivot function and the controlled return close, keeping the gate from swinging freely or slamming shut.

Key Features

• All-in-one design combines closer and hinge into a single unit
• Rated for gates from 50 to 250 pounds
• Reduces hardware count compared to separate closer and hinge installations
• Suitable for high-use gate cycles in commercial and residential applications
• Compact form factor at 8.2 inches long by 5.1 inches wide by 3.1 inches tall

Compatibility

Designed as an OEM-style replacement or new-installation gate closer and hinge for self-closing gates weighing 50 to 250 pounds in residential and commercial fencing applications.

Installation Notes

Installation should be performed by a qualified gate installer or contractor familiar with local fencing and gate codes. Ensure the gate frame and post are structurally capable of supporting the combined weight of the gate and the mechanical load of the closer before mounting. Follow the manufacturer's hardware torque guidance and use fasteners appropriate for the gate and post material. Verify local pool barrier or access control codes if installing on a pool enclosure gate, as self-closing and self-latching requirements may apply.
