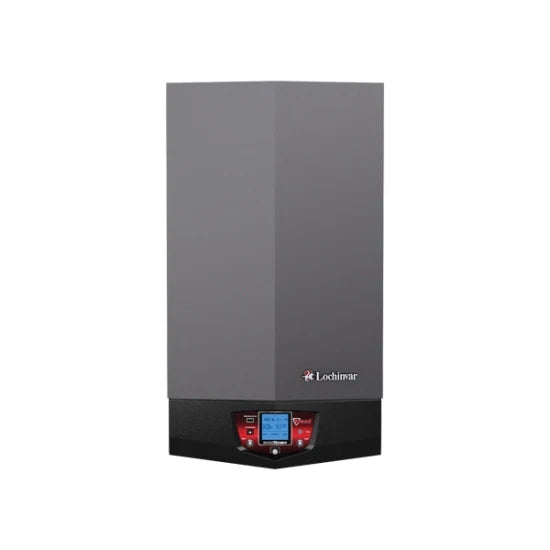

Lochinvar WHB085N Knight Wall Mount Fire Tube Boiler - Nat 85,000 BTU/HR Input

Product Description

The Lochinvar WHB085N is a wall-mounted fire tube boiler designed for natural gas use. This model has an input rating of eighty-five thousand BTU per hour. It features advanced technology that aids in installation and operation, while ensuring optimal efficiency and safety. The appliance is designed for environments that require reliable and effective heating solutions.

• High efficiency with a thermal effectiveness rating of ninety-five percent.
• Built with durable stainless steel for longevity.
• Equipped with a SMART SYSTEM control for ease of operation.

Product Highlights

The WHB085N is designed to perform with low emissions and reduced operational costs. The modulating burner adjusts its output to meet demand, enhancing efficiency.

Product Information

Standard Information

• Brand: Lochinvar
• MPN: WHB085N

Technical Specifications

• Sub Brand: Knight
• Item Name: Fire Tube Boiler
• Fuel Type: Natural Gas
• BTU Rating: 85000 Input, 79000 Output BTU/HR
• Voltage Rating: 120 VAC at 60 Hz
• Phase: 1 PH
• Material: Stainless Steel Heat Exchanger
• Thermal Efficiency: 95%
• Ignition Type: Direct Spark
• Gas Connection: 1/2 In
• Water Connection: 1 In
• Air Inlet: 2 In
• Vent Size: 2 In
• Mounting: Wall
• Height: 39-3/4 In
• Width: 18-3/4 In
• Depth: 16 In
• Industry Standards: AHRI Certified, CSA Design Certified, ASME Certified H Stamped, Energy Star Rated
• Additional Specifications: Net BTU/HR: 69000
