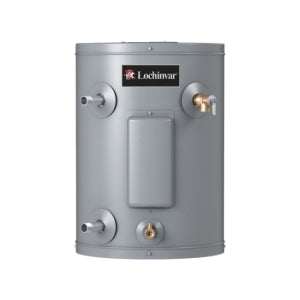

Lochinvar JEC002BS Residential Electric Water Heater 1500 W (2.5 gal) 100290069

Product Description

The Lochinvar JEC002BS is a 2.5 gallon residential electric water heater rated 1500 W at 120 V single-phase. It features a glass-lined steel tank with a fused lining, provides approximately 6 GPH recovery at a 100 F rise, and uses 3/4 in NPT water connections. The compact unit (13.75 x 13.75 x 11 in) is rated 300 PSI test / 150 PSI working and is AHRI, CSA (low lead), and UL certified.

• 2.5 gal capacity; 1500 W power rating; 120 V, single-phase input
• Glass-lined steel tank with corrosion protection; factory-installed T&P relief valve and sacrificial anode rod
• Compact 13.75 x 13.75 x 11 in footprint; 3/4 in NPT connections; recovery 6 GPH at 100 F rise; 300 PSI test / 150 PSI working

Product Highlights

Point-of-use residential electric heater with glass-lined tank, 6 GPH recovery, 3/4 in NPT connections, CSA/ASME certified T&P valve

Product Information

Standard Information

• Brand: LOCHINVAR
• Manufacturer Part Number: JEC002BS
• Country of Origin: United States
