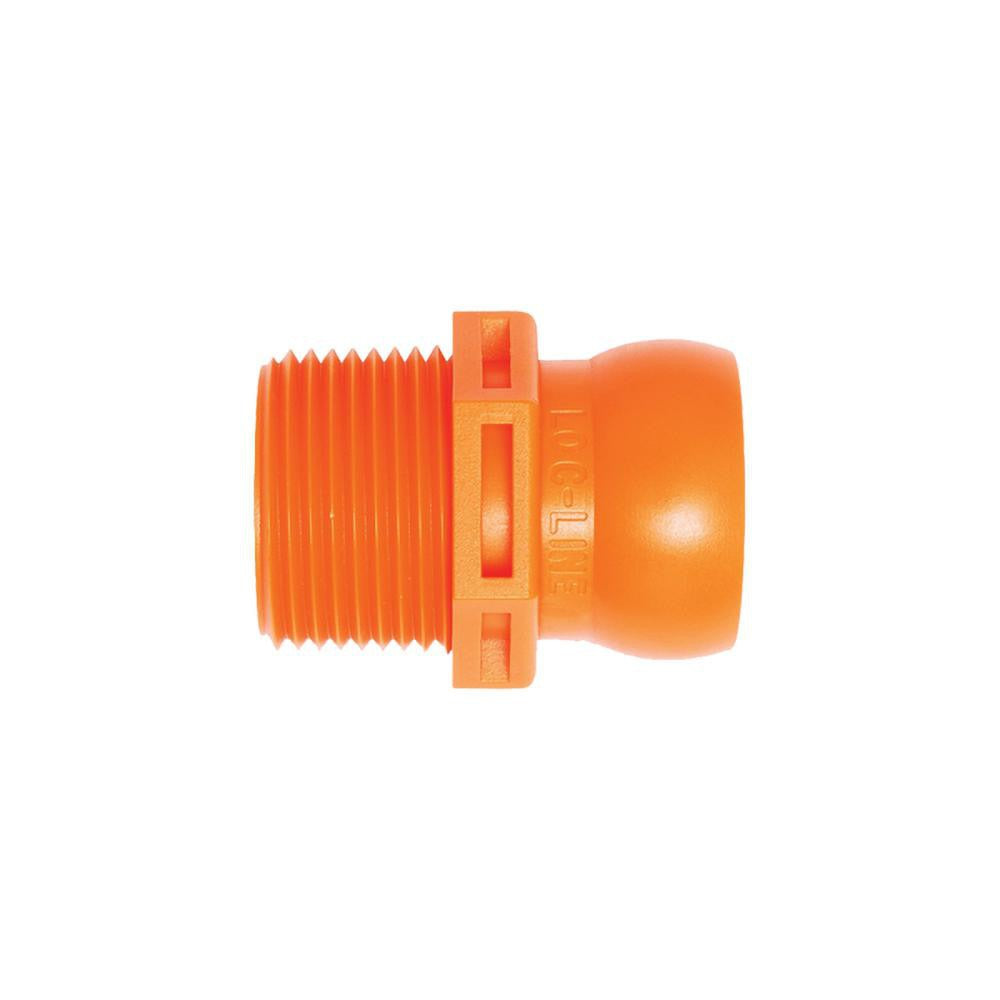

Loc-line 61505 3/4 Inch Coolant Hose Connector 4 Piece

Product Description

The LOC-LINE 61505 is a four-piece male-to-female coolant hose connector set designed for use with Loc-Line modular hose systems. Each connector features a 3/4 inch hose inside diameter and a 3/4 inch NPT thread, allowing techs and machinists to extend, branch, or terminate modular coolant lines with a secure, repeatable connection. The overall length of each connector is 1.6 inches, and the set is rated for a maximum flow rate of 1,140 gallons per hour at pressures up to 40 psi. Suitable for coolant delivery applications where temperatures do not exceed 170 degrees F.

These connectors are used in machine tool coolant systems, CNC machining centers, and similar industrial fluid delivery setups where Loc-Line modular hose assemblies are already installed. The male-to-female configuration makes them practical for in-line extensions or directional changes within an existing run of modular hose. Installation is straightforward and requires no special tooling beyond standard hand pressure to snap segments into place. Sold as a package of four connectors per unit.

Key Features

• 3/4 inch hose inside diameter with 3/4 inch NPT male-to-female thread connection
• Rated up to 40 psi maximum operating pressure
• Maximum flow rate of 1,140 gallons per hour
• Rated for service up to 170 degrees F
• Overall connector length of 1.6 inches
• Sold as a set of four pieces per package

Compatibility

Designed for use with Loc-Line modular hose systems with a 3/4 inch hose inside diameter.

Installation Notes

These connectors are typically installed by machinists or fluid system technicians maintaining CNC or machine tool coolant lines. Shut off coolant flow and relieve system pressure before disassembling or adding connectors to an existing modular hose run. Snap-fit connections should be fully seated before returning the system to service. Do not exceed the rated pressure or temperature limits during operation.
