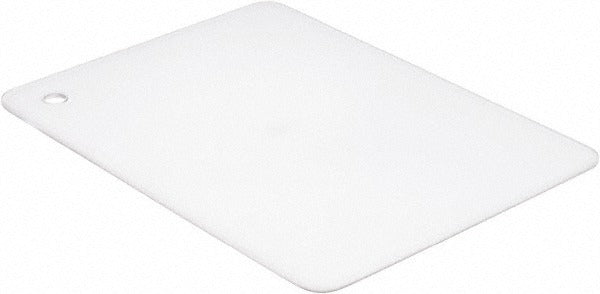

Loc-line 60528 Replacement Shield 8x6 Inch Polycarbonate

Product Description

The LOC-LINE 60528 is a polycarbonate replacement shield designed for use with modular coolant hose and nozzle systems. Measuring 8 inches long by 6 inches wide, this shield provides a physical barrier that directs or contains fluid flow in machining and industrial cooling applications. It is constructed from polycarbonate for impact resistance and chemical compatibility with common water-based coolants. Maintenance technicians and machine operators install this part when the original shield becomes cracked, warped, or missing from an active coolant delivery assembly.

This replacement shield is suited for use in CNC machining centers, lathes, mills, and other machine tool environments where modular coolant delivery systems are employed. The polycarbonate material withstands repeated exposure to cutting fluids and coolant mist. Its 8 by 6 inch footprint makes it appropriate for mid-size nozzle assemblies where chip and fluid deflection coverage is needed at the cutting zone.

Key Features

• Polycarbonate construction resists impact and common coolant chemistries
• 8 inches long by 6 inches wide for broad deflection coverage
• Direct replacement for the shield used with assembly 09777905
• Lightweight at 0.41 pounds for easy handling during service
• Package quantity of 1 shield per unit

Compatibility

Designed as a replacement shield for use with LOC-LINE assembly 09777905. Verify fitment against the specific modular coolant system assembly before installation.

Installation Notes

Disconnect and lock out the machine coolant system before removing the worn shield. Polycarbonate shields in modular coolant systems typically snap or clip into place and require no tools beyond hand pressure for removal and reinstallation. Do not overtighten any retaining clips, as polycarbonate can crack under excessive point loading. Follow the machine tool manufacturer and coolant system guidelines for proper shield positioning relative to the cutting zone.
