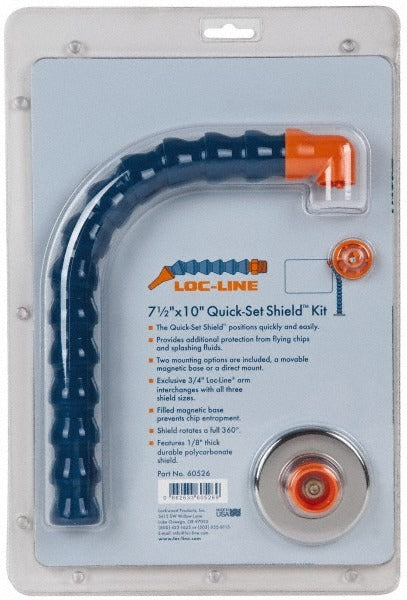

Loc-line 60526 Polycarbonate Base Shield Magnetic Mount

Product Description

The LOC-LINE 60526 is a flat polycarbonate base shield assembly designed for general-purpose machine tool and coolant system applications. The shield measures 7.5 inches wide by 10 inches long and 0.125 inches thick, providing a clear protective barrier at the point of work. It mounts via a magnetic bracket base, allowing fast repositioning on any ferrous surface without additional fasteners. The assembly includes an articulating arm with 14 inches of reach, giving technicians the flexibility to position the shield precisely where needed. Typical installers include machine operators, maintenance technicians, and fluid system specialists working in shop environments.

This base shield assembly is suited for use on CNC machines, lathes, mills, and other metalworking equipment where chip, coolant, or debris deflection is needed at the work zone. The magnetic base attaches directly to machine tables, housings, or frames, making it easy to deploy and reposition without drilling or permanent mounting. The polycarbonate shield withstands operating temperatures up to 170 degrees F, making it appropriate for standard cutting fluid and coolant splash environments. The LOC-LINE modular arm system allows the shield angle and position to be adjusted by hand.

Key Features

• Flat polycarbonate shield: 7.5 inches wide, 10 inches long, 0.125 inches thick
• Magnetic bracket base mounts to any ferrous machine surface without tools or fasteners
• 14-inch articulating arm reach for precise shield positioning
• Rated for maximum operating temperature of 170 degrees F
• Includes arm and shield, magnetic base, and mount hardware
• Available in blue, orange, and white

Compatibility

Designed for use with LOC-LINE modular hose and shield systems in general-purpose machine tool applications where a magnetic base mount is required.

Installation Notes

Installation is performed by placing the magnetic base on any clean, flat ferrous surface on the machine frame or table. Confirm the magnetic base is fully seated and secure before operating equipment. Adjust the articulating arm by hand to the desired shield position. No special tools or electrical shutoff is required for mounting, but always follow your facility safety procedures before reaching into or near an active machine work zone.
