Loc-line 56863 Coolant Hose 13in 1/2in Id Snap-together

Product Description

The LOC-LINE 56863 is a modular coolant hose assembly designed for use in machine tool and industrial coolant delivery applications. Built from polyester and measuring 13 inches in length with a 1/2 inch inside diameter, this assembly connects to snap-together hose systems via quick-connect fittings. It is rated for a maximum pressure of 30 psi and a maximum temperature of 115 degrees F. The kit includes multiple nozzle and connector options, making it adaptable to varying coolant flow and direction requirements on the shop floor. Installation is handled by machining professionals and maintenance technicians.

This coolant hose assembly is suited for CNC machining centers, lathes, milling machines, and similar metal-cutting equipment where directed coolant flow is required at the cutting zone. The snap-together modular design allows the hose to be repositioned without tools, making it practical for setups that change frequently. The included nozzle assortment supports fine-tuned coolant targeting at the workpiece.

Key Features

• 13-inch hose length with 1/2 inch inside diameter for substantial coolant flow capacity
• Polyester construction rated to 115 degrees F and 30 psi maximum operating pressure
• Quick-connect snap-together design allows tool-free repositioning

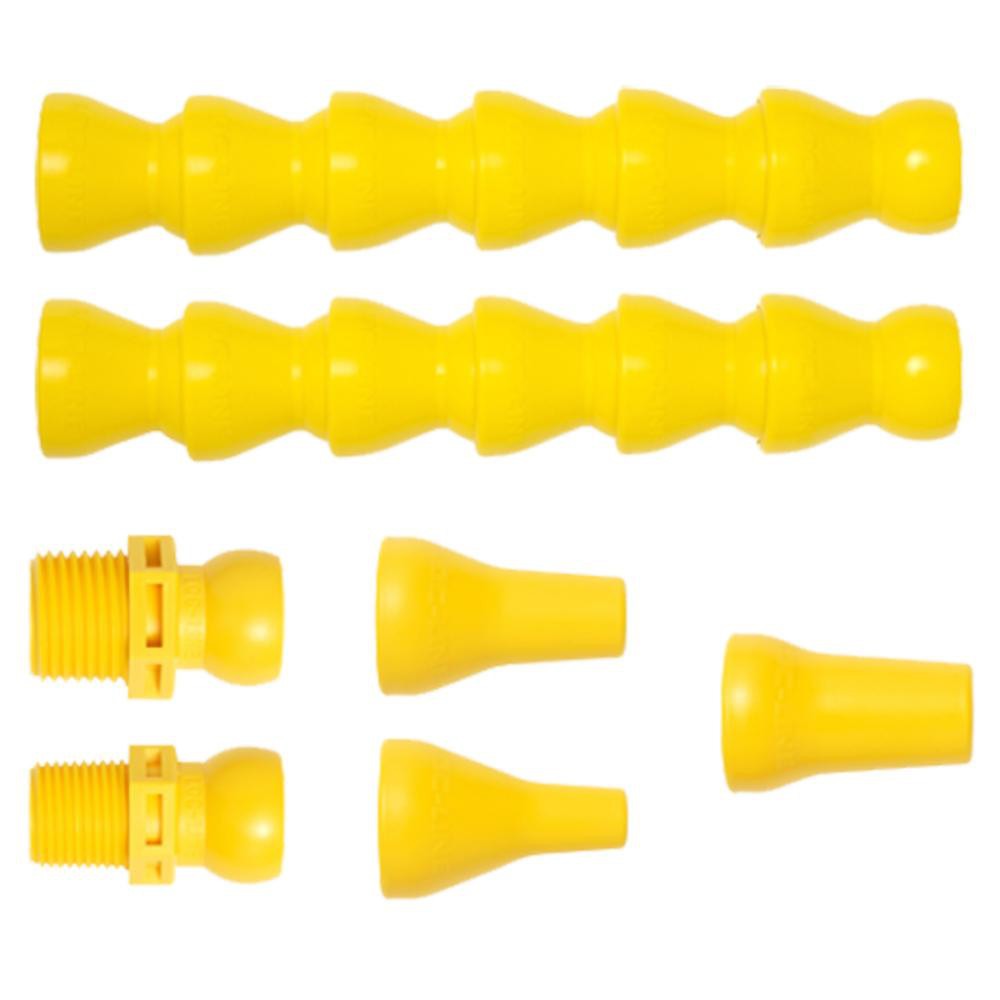

• Includes 1/2 inch NPT connector, 3/8 inch NPT connector, and three round nozzles (1/4 inch, 3/8 inch, and 1/2 inch)
• Two 5-1/2 inch hose segments included for flexible routing
• Single-piece kit ships as one unit with all listed components

Compatibility

Designed for use with snap-together modular coolant hose systems accepting 1/2 inch quick-connect fittings.

Installation Notes

Installation is typically performed by machine tool operators or maintenance technicians. Shut off coolant flow and depressurize the supply line before disassembling or connecting hose segments. Verify that system operating pressure does not exceed 30 psi and that fluid temperature remains at or below 115 degrees F. Snap segments together firmly and confirm all connections are fully seated before restoring coolant flow.
