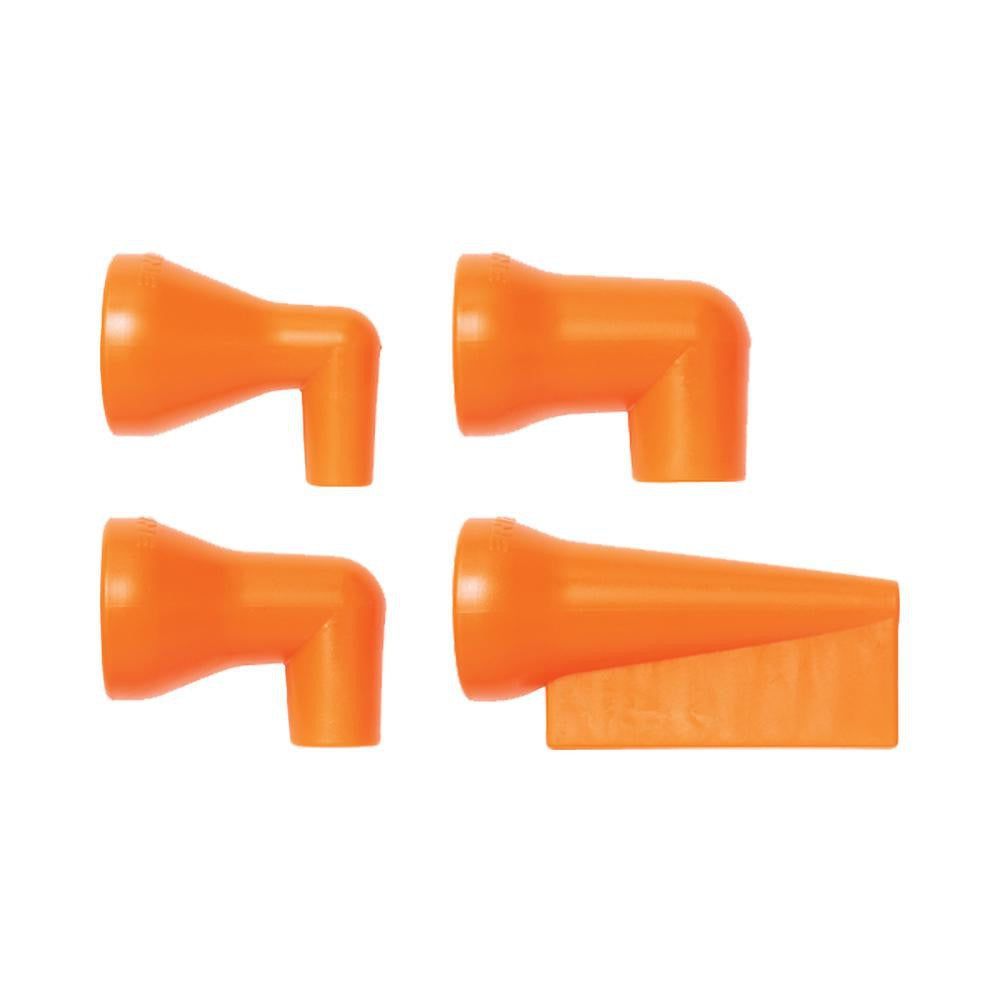

Loc-line 51832 90 Spray Coolant Hose Nozzle Kit 1/2 Inch

Product Description

The LOC-LINE 51832 is a 90-degree spray coolant hose nozzle kit made from acetal copolymer, designed for use with the Loc-Line Modular Hose System. Each kit includes four pieces: three spray bar nozzles in 1/4, 3/8, and 1/2 inch sizes, plus one additional nozzle component. The kit fits 1/2-inch inside diameter Loc-Line hose assemblies and handles pressures up to 30 psi at temperatures up to 170 degrees F. Machinists, toolroom techs, and CNC operators install these nozzles to direct cutting fluid precisely at the tool-workpiece interface, improving chip evacuation and extending cutting tool life.

This nozzle kit is suited for light to medium-duty machining coolant delivery applications in job shops, production machine shops, and toolroom environments. The 90-degree spray orientation allows the coolant stream to be aimed directly at the cutting zone without repositioning the entire hose assembly. The included assortment of three spray bar nozzle sizes makes this kit adaptable to different cutting tool diameters and coolant flow requirements in a single installation.

Key Features

• 90-degree spray nozzle geometry for direct coolant targeting at the cut zone
• Acetal copolymer construction for durability in coolant fluid environments
• Rated to 30 psi maximum operating pressure
• Maximum service temperature of 170 degrees F
• Fits 1/2-inch inside diameter Loc-Line Modular Hose System assemblies
• Kit includes three spray bar nozzles in 1/4, 3/8, and 1/2 inch sizes - four pieces total

Compatibility

Designed for use with the Loc-Line Modular Hose System in 0.5-inch system size configurations.

Installation Notes

Installation is performed by qualified machine tool operators or maintenance technicians. Shut off coolant flow and relieve system pressure before disassembling or replacing nozzle components. Snap-fit Loc-Line segments should be assembled and disassembled by hand; avoid using pliers or other tools that can crack acetal fittings. Verify that system operating pressure does not exceed 30 psi to prevent joint separation or nozzle failure.
