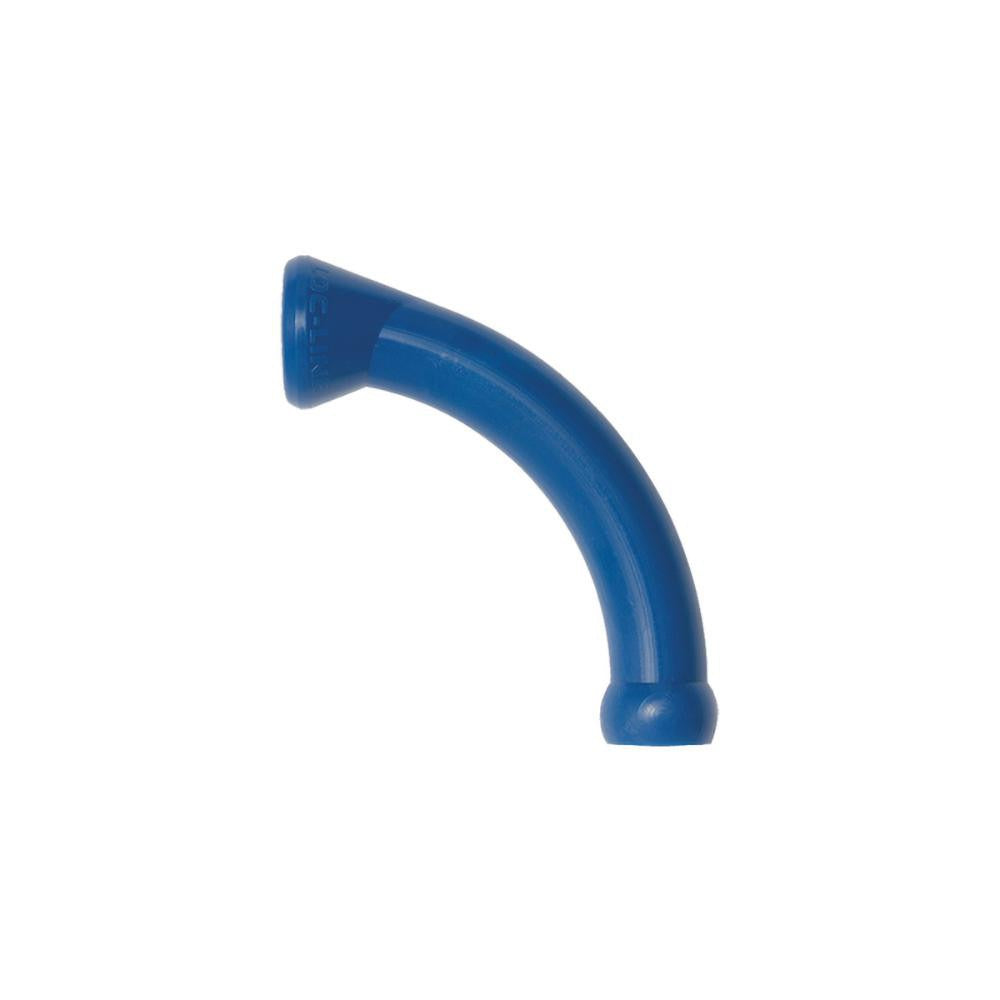

Loc-line 41491 Coolant Hose Extended Elbow 1/4 in 4-pack

Product Description

The LOC-LINE 41491 is an extended elbow fitting designed for use within the Loc-Line Modular Hose System, a snap-together coolant delivery platform widely used in machining and metalworking environments. This fitting connects to 1/4-inch inside diameter modular hose segments and allows the hose assembly to change direction at an extended angle, giving technicians precise control over coolant stream positioning. Each package contains 4 fittings. The system supports a maximum flow rate of 500 gallons per minute and a maximum operating pressure of 110 psi, making it suitable for demanding production environments where consistent coolant delivery is critical.

This extended elbow fitting is used in CNC machining centers, manual mills, lathes, and other machine tool applications where coolant must be directed accurately at a cutting tool or workpiece. It is compatible with the 0.25-inch Loc-Line modular hose system and is assembled by hand without special tooling. Machinists, machine tool maintenance technicians, and shop setup personnel are the primary installers. The fitting is not acid-resistant and should not be used in chemical environments where corrosive fluids are present.

Key Features

• Extended elbow configuration for precise coolant stream redirection
• 1/4-inch (0.25 inch) inside diameter fits standard Loc-Line modular hose segments
• Maximum operating pressure of 110 psi
• Maximum flow rate of 500 gallons per minute
• Hand-assembly snap-together connection - no tools required
• Sold in a package of 4 fittings

Compatibility

Designed for use with the Loc-Line 0.25-inch modular coolant hose system. Not compatible with acid-resistant or chemical fluid applications.

Installation Notes

This fitting is installed by hand by snapping it into the adjoining Loc-Line hose segment - no tools are required for assembly or disassembly. Before servicing or reconfiguring a coolant line on a machine tool, shut off coolant flow and power down the machine per shop lockout/tagout procedures. Do not exceed the rated maximum pressure of 110 psi during operation. Inspect fittings periodically for wear or cracking, especially in high-cycle applications.
