Lloyd Industries CRD50-NI-BT-26GS-EA6X6X6 Damper Box

Product Description

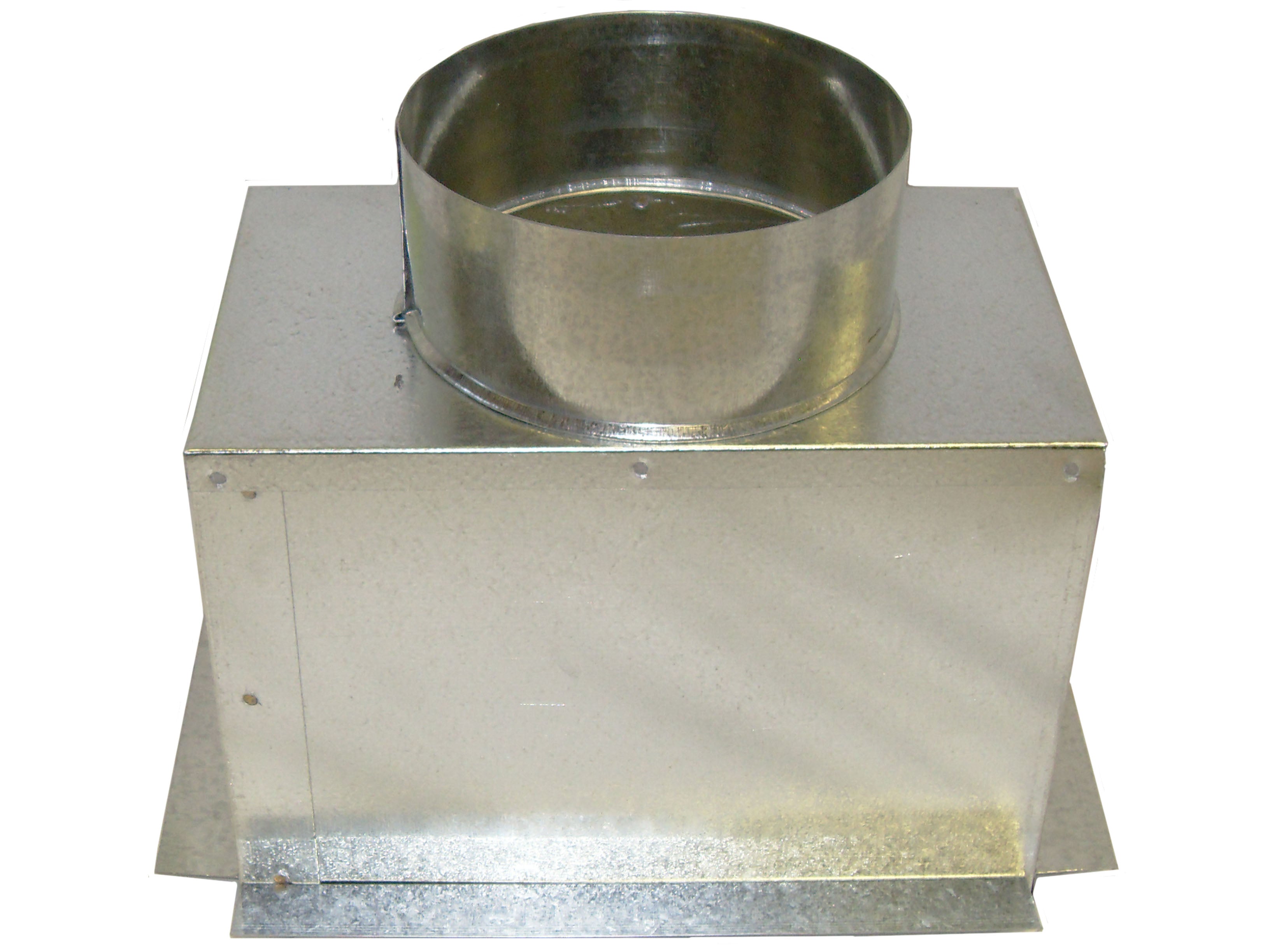

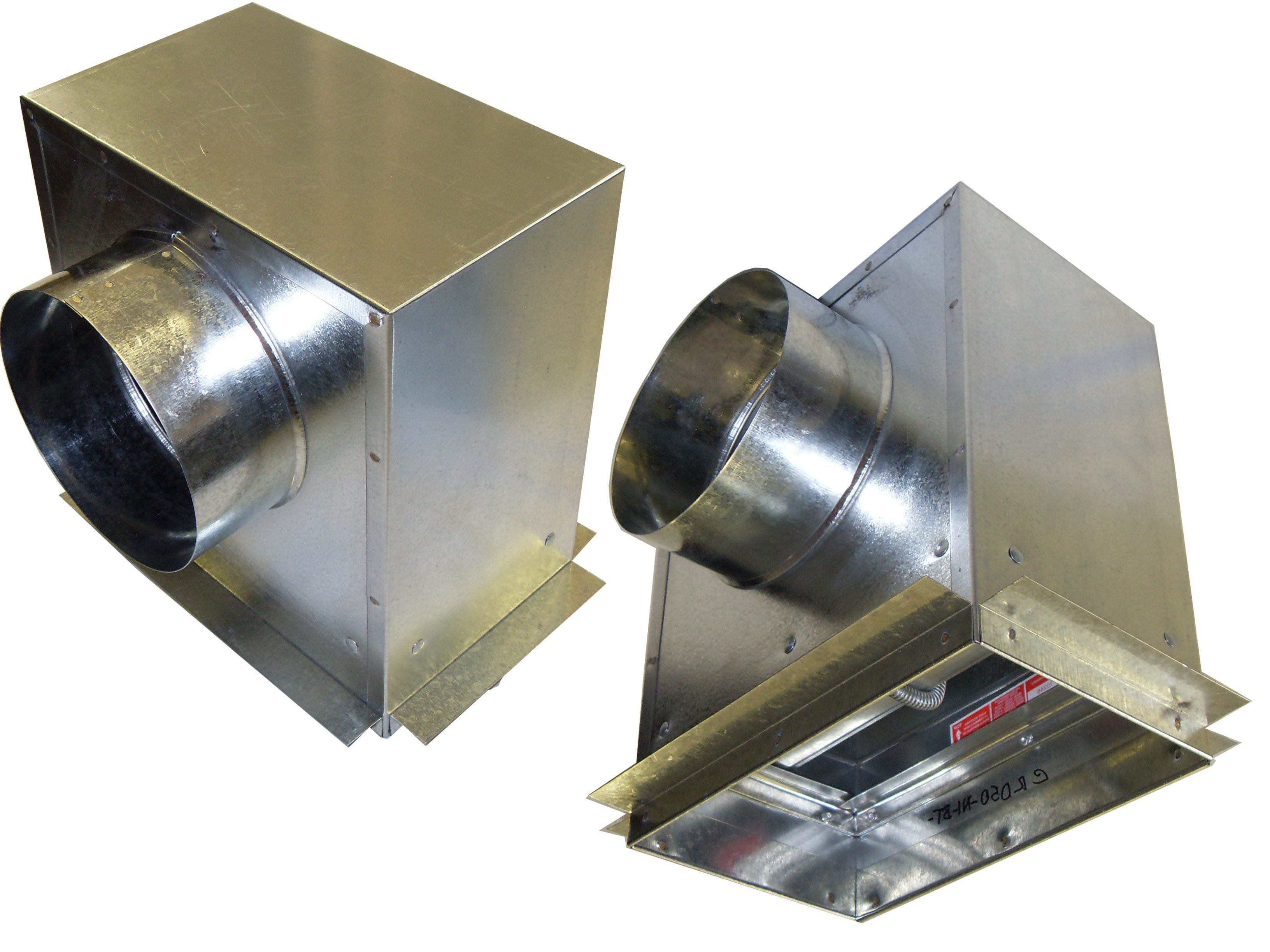

The Lloyd Industries CRD50-NI-BT-26GS-EA6X6X6 is a ceiling radiation damper and box assembly that is rated for one hour. This product features a rectangular damper design with a non-insulated galvanized steel register box and a side outlet with a round collar. The damper is UL listed and designed for use in various ceiling and roof assemblies. It comes with a standard fusible link rated at one hundred sixty-five degrees Fahrenheit for fire safety.

• UL listed ceiling radiation damper compliant with UL-555C.
• Constructed with outer box made of twenty-six gauge galvanized steel.
• Blades made of twenty-two gauge galvanized steel with a ceramic fiberglass cover.

Product Highlights

Product Information

Standard Information

• Damper Type: Side Collar
• Neck Diameter: Six inches

Technical Specifications

• Rating: UL listed ceiling radiation damper UL-555C
• Fusible Link: One hundred sixty-five degrees Fahrenheit standard
• Blades: Twenty-two gauge galvanized steel with ceramic fiberglass cover
• Frame: Roll formed twenty-two gauge galvanized steel
• Outer Box: Twenty-six gauge galvanized steel
• Collar: Roll formed twenty-six gauge galvanized steel with roll formed one-quarter inch beading
• Dimensions: Six by six by six inches
