LLOYD INDUSTRIES CRD50-NI-BT-26GS-EA6X6X5

Product Description

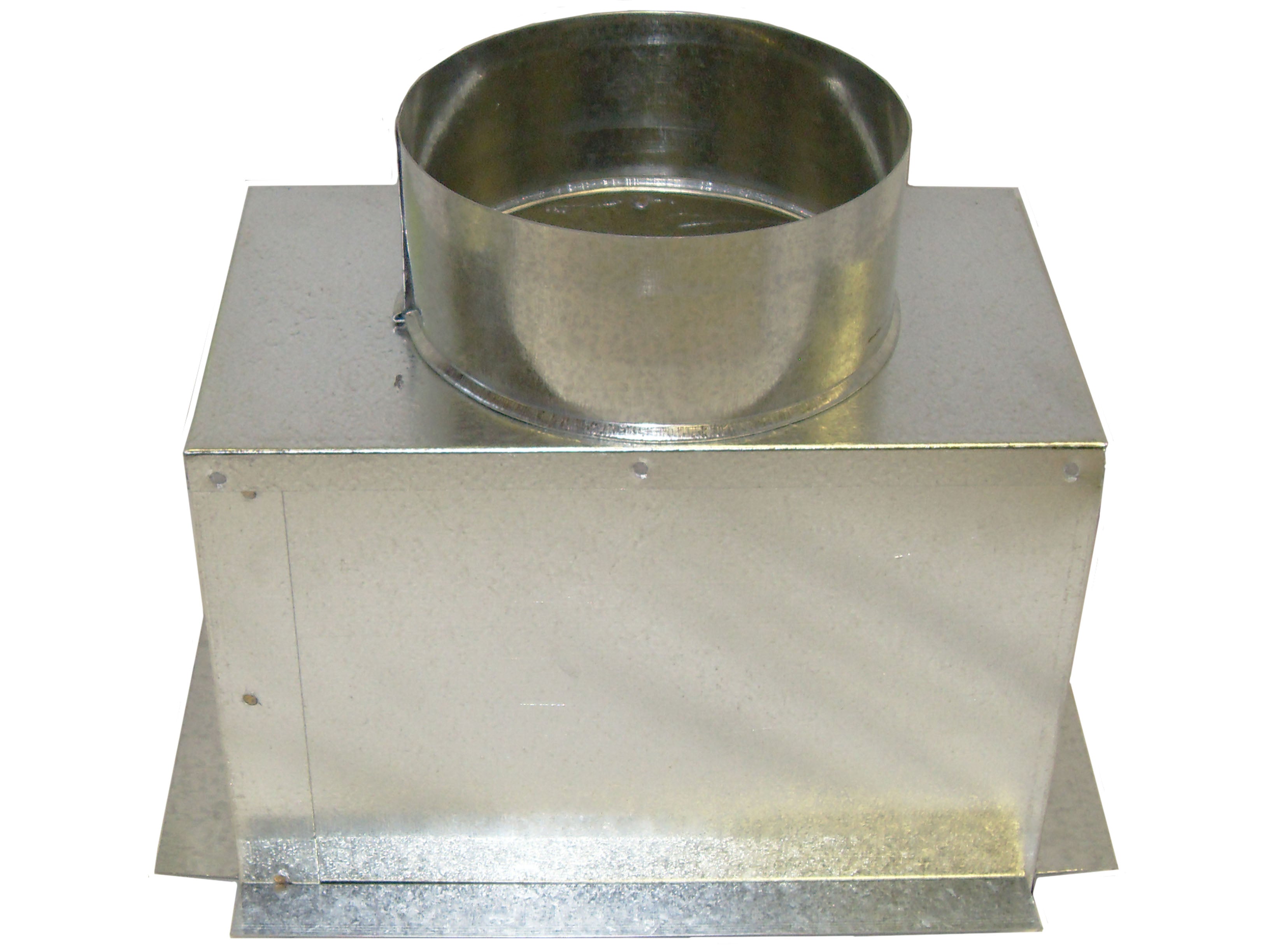

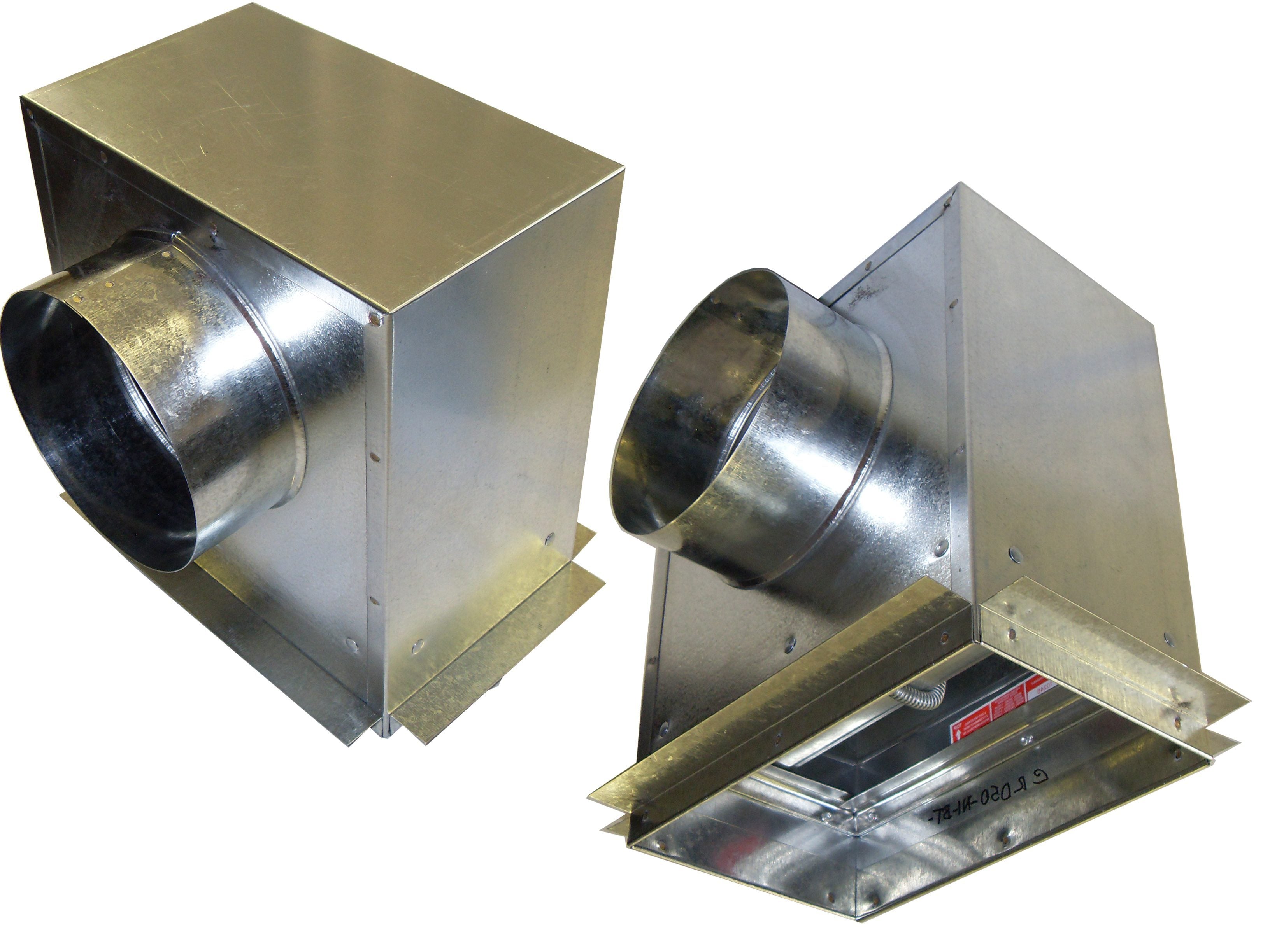

The LLOYD INDUSTRIES CRD50-NI-BT-26GS-EA6X6X5 is a one-hour rated ceiling radiation damper and box assembly. It is UL fire-rated for ceiling/floor and ceiling/roof assemblies. The damper includes a fusible link rated at one hundred sixty-five degrees Fahrenheit. The blades are made from twenty-two-gauge galvanized steel, covered with ceramic fiberglass. The frame is constructed using roll-formed twenty-two-gauge galvanized steel, enhancing its durability. Additionally, the outer box of the plenum is crafted from twenty-six-gauge galvanized steel, while the collar is roll-formed from twenty-six-gauge galvanized steel with a roll-formed quarter-inch beading.

• UL listed ceiling radiation damper UL-555C
• Fusible Link: 165°F standard
• Durable construction with galvanized steel

Product Highlights

Designed to meet UL standards, this radiation damper ensures safety in fire scenarios while maintaining optimal airflow.

Product Information

Standard Information

• Model: CRD50-NI-BT-26GS-EA6X6X5
• Type: Ceiling radiation damper

Technical Specifications

• Rating: UL listed ceiling radiation damper UL-555C
• Fusible Link: 165°F standard
• Blades: 22 Ga. galvanized steel with ceramic fiberglass cover
• Frame: Roll formed 22 Ga. galvanized steel
• Outer Box: 26 Ga. galvanized steel
• Collar: Roll formed 26 Ga. galvanized steel with roll formed 1/4 beading
• Damper Type: Side collar
• Neck: 5 inches
• Width: 6 inches
• Height: 6 inches
