Lloyd Industries 4DLF33 4 inches drainable 33° flanged louver

Product Description

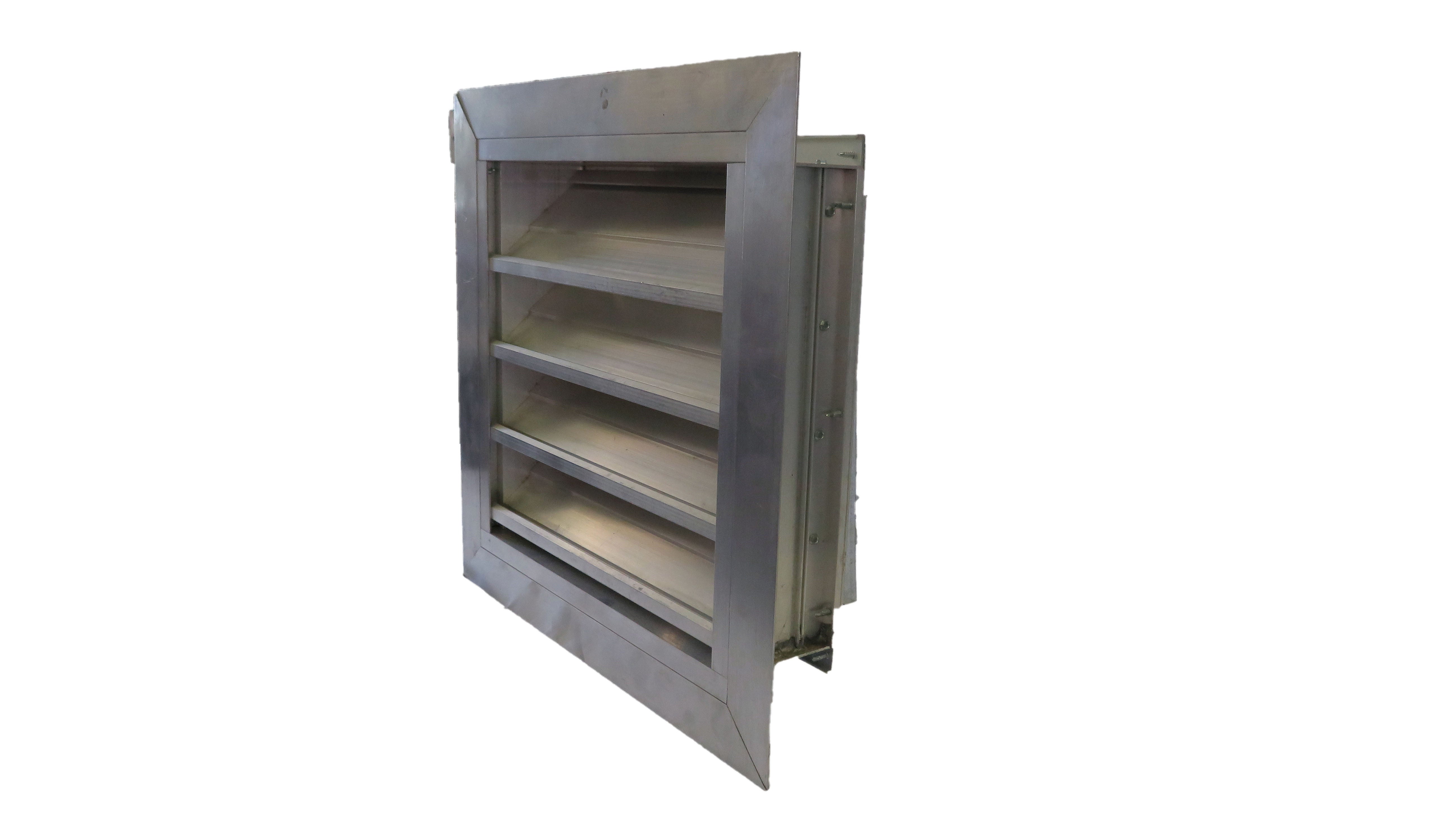

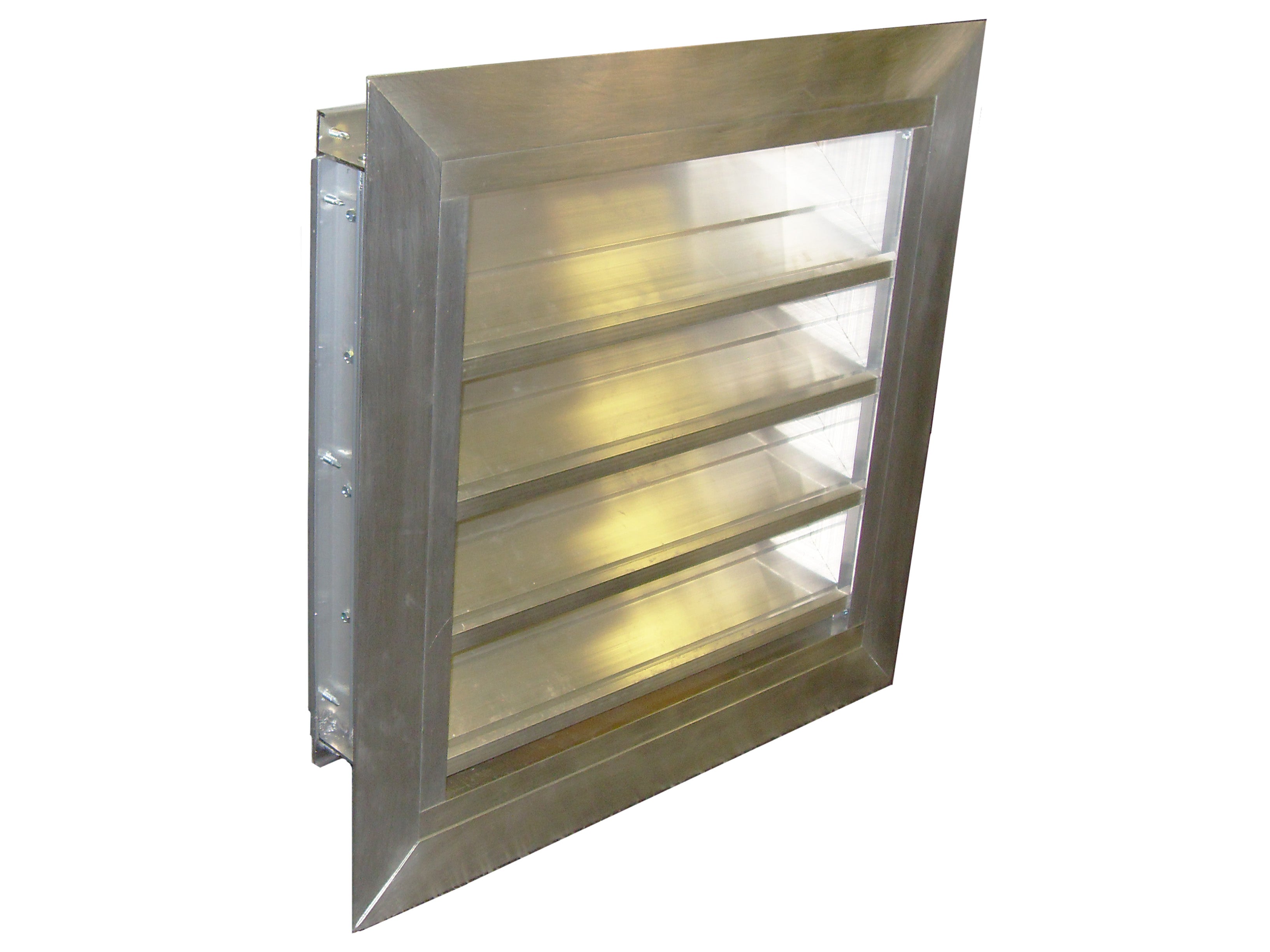

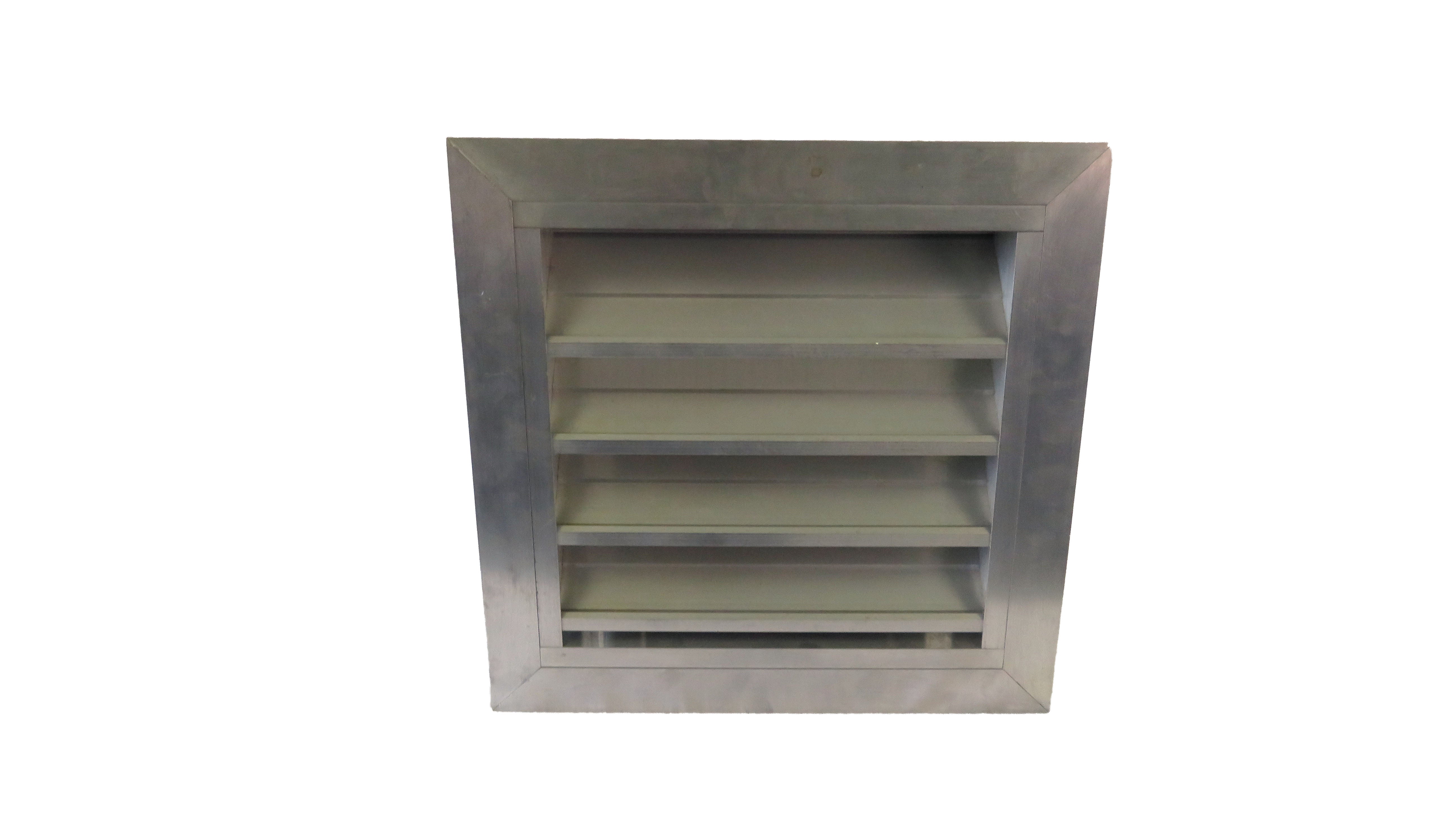

The LLOYD INDUSTRIES 4DLF33 is a 4-inch drainable 33-degree flanged louver, constructed from 0.081 thick extruded aluminum 6063-T5 mill finish for both its frame and blades. This louver features a 33-degree blade angle, designed for efficient drainage in various applications. It includes a standard 1/2"x1/2" galvanized steel bird screen, ensuring protection while maintaining airflow. The flanged design allows for secure installation.

• Constructed with 0.081 thick extruded aluminum 6063-T5 mill finish frame and blades.
• Features a 33° blade angle for efficient drainage.

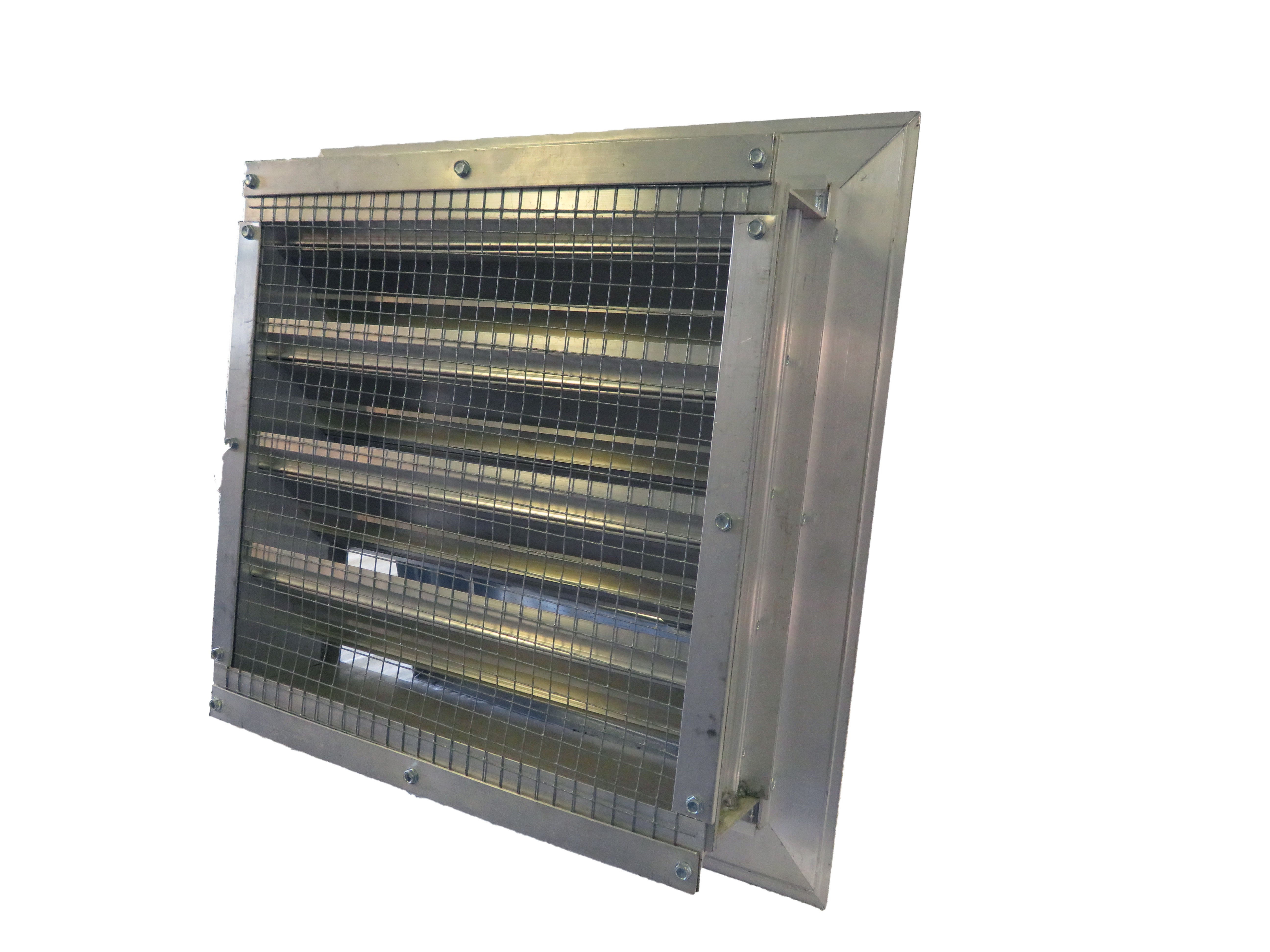

• Includes a standard 1/2"x1/2" galvanized steel bird screen.

Product Highlights

Durable extruded aluminum louver with 33-degree drainable blades and integrated bird screen.

Product Information

Standard Information

• Brand: LLOYD INDUSTRIES
• Manufacturer Part Number: 4DLF33

Technical Specifications

• Frame Material: 0.081 thick extruded aluminum 6063-T5 mill finish
• Blade Material: 0.081 thick extruded aluminum 6063-T5 mill finish
• Blade Spacing: Approximately 3-1/4” center to center (except at head and sills)
• Fasteners: 10” x 3/4” tek screws
• Blade Angle: 33º
• Minimum Height: 8”
• Standard Screen: Bird screen 1/2”×1/2” galvanized steel
• Optional Insect Screen: 1/16” x 1/16” mesh aluminum
• Optional Bird Screen: 1/2” x 1/2” aluminum
• Available Finishes: Clear Anodized, Bronze Anodized, Powder Coat Paint, Baked Enamel Paint
