Product Description

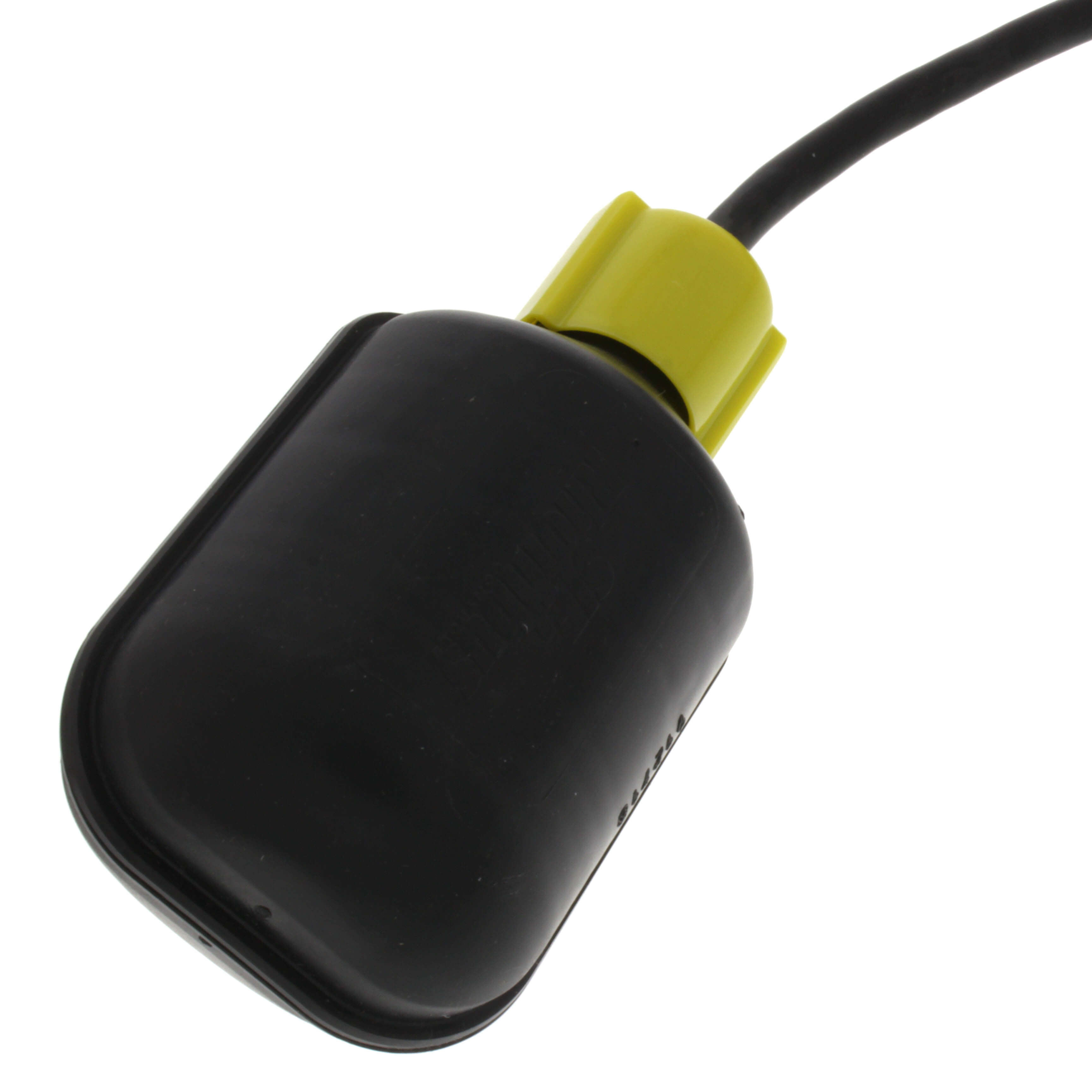

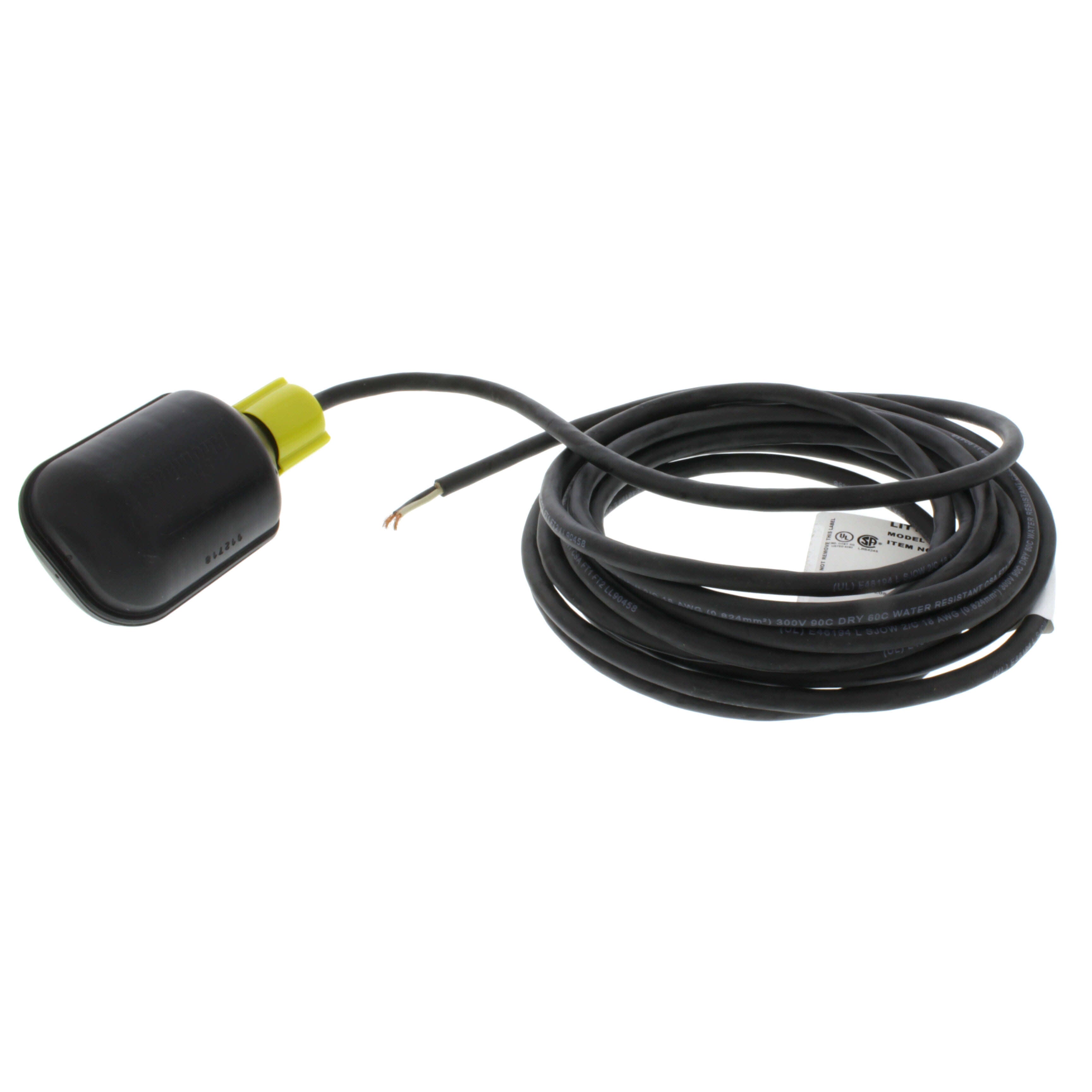

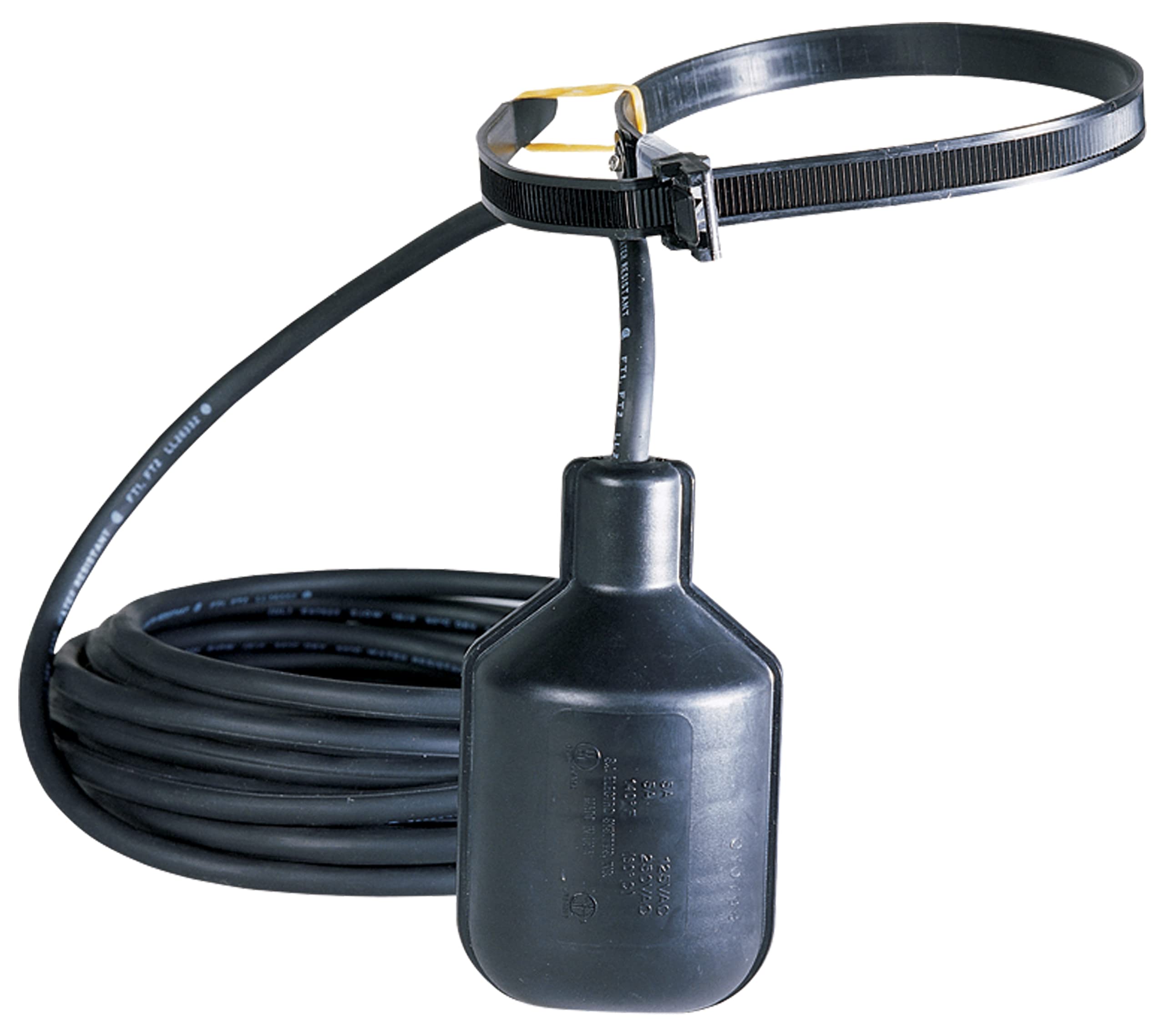

The LITTLE GIANT 950267 CFST control float switch provides automatic pump control in water and sewage effluent applications. It features mechanically activated contacts and is not sensitive to rotation. Designed for use with control panels and alarms. The float switch is suitable for MGP series control panels.
- Mechanically activated contacts
- Not sensitive to rotation
- Tethered control float switch provides automatic control of a pump in water and sewage effluent applications
Product Highlights
The LITTLE GIANT CFST control float switch is ideal for automatic pump control in water and sewage applications.
Product Information
Standard Information
-
Brand: LITTLE GIANT
-
Manufacturer Part Number: 950267
Technical Specifications
-
Voltage: 115/230 VAC
-
Frequency: 50/60 Hz
-
Application: For use with control panel and alarms
-
Amperage: 5 amp
-
Cord Length: 20'
-
Brand: Little Giant
-
Material: Polypropylene (PP)
-
Unit Count: 1.0 Count
-
Number of Items: 1
-
Number of Packs: 1
-
Manufacturer: Franklin Electric Co., Inc.
-
Amperes: 5.0 Amps
-
Maximum water depth/pressure: 30 feet, 13 psi
-

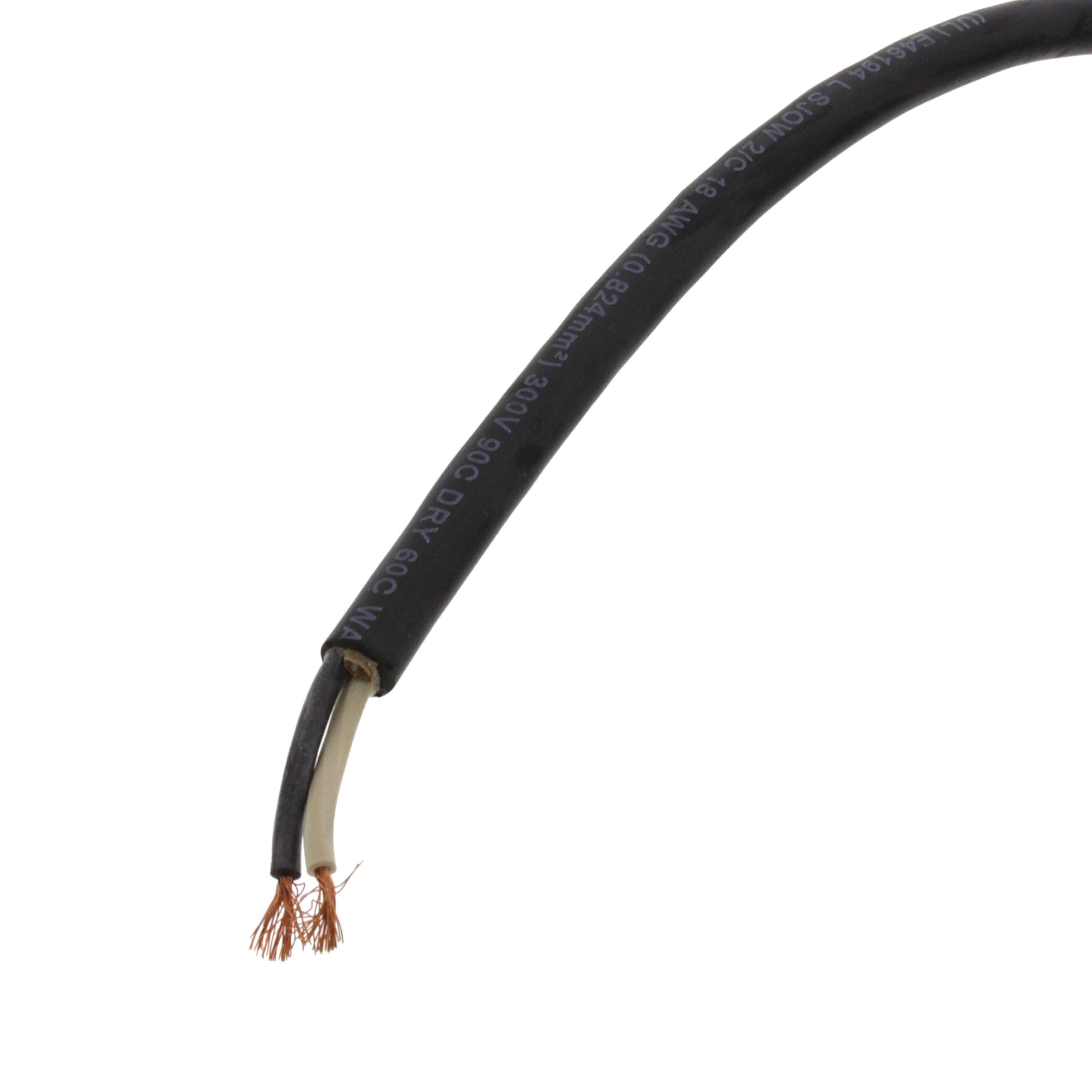

Lead wire specifications: 20-foot lead wires (plug not included); 18 gauge, 2 conductor SJOW, water resistant cable
-
Features: Not sensitive to rotation
-
Limitations: Must be used with a CONTROL PANEL with or without an alarm. This switch is not recommended for controlling: electrical loads less than 100 milliamps, 12 VAC non-arcing electrical loads
-
Compatible products: Little Giant 513258 - 1221W120H6A17A Duplex Indoor/Outdoor Alarm System & Pump Control; Little Giant 513267 - 1121W120H17A Simplex Alarm System/Pump Control; Franklin Electric 515354 - A-SF230CBG-215 Control Panel for IGP manual grinder series; Franklin Electric 515355 - 1026540 Duplex Control Panel
-
Model: 950267, CFST
-
MPN: 950267
