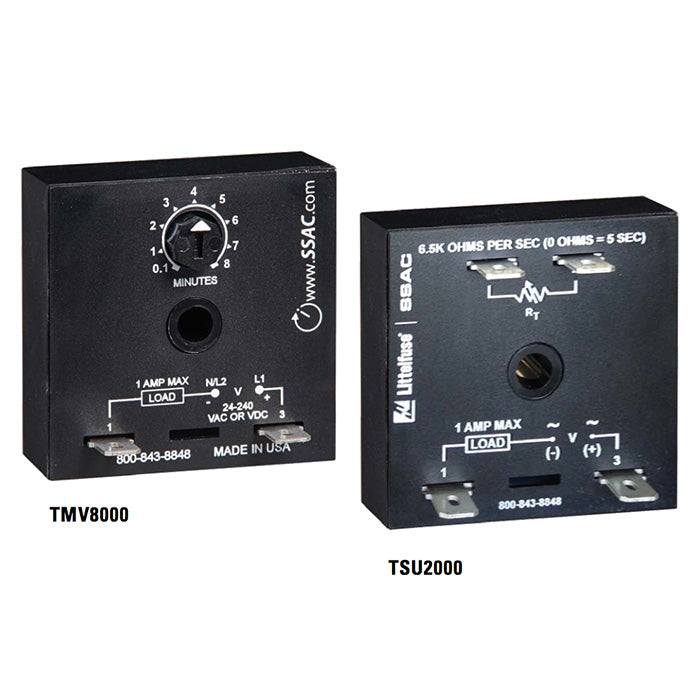

Littelfuse TMV8000 Multi-Voltage Timer 0.1 to 8 min Setting

Product Description

Littelfuse TMV8000 is a multi-voltage timer designed for reliable performance across diverse electrical systems. This timer operates on voltage ranges from twenty-four to two hundred forty volts AC or DC. It allows for a time delay setting between 0.1 to 8 minutes.

• Universal AC/DC operating voltage for diverse applications
• Solid-state design ensures high durability without moving parts
• Simple installation with a two-terminal series connection

Product Highlights

This timer features an adjustable onboard design that provides flexibility in timing control. The operating mode is fixed as Delay On Make, which enhances efficiency in various industrial tasks.

Product Information

Standard Information

• Manufacturer: Littelfuse
• MPN: TMV8000

Technical Specifications

• Contact Form: SPDT/NO-NC (1 Form C)
• Dimensions: 2 inches H x 2 inches W x 1.21 inches D
• Electrical Connections: Male Quick-Connect Terminal
• Mounting Type: Surface
• Operation Mode: Delay On Make
• Temperature Rating: -20 to 70 degrees F
• Standards/Approvals: CE Certified, CSA Certified, UL Recognized, PPROP65
• Time Setting: 0.1 to 8 minutes
• Voltage Rating: 24 to 240 VAC/VDC
