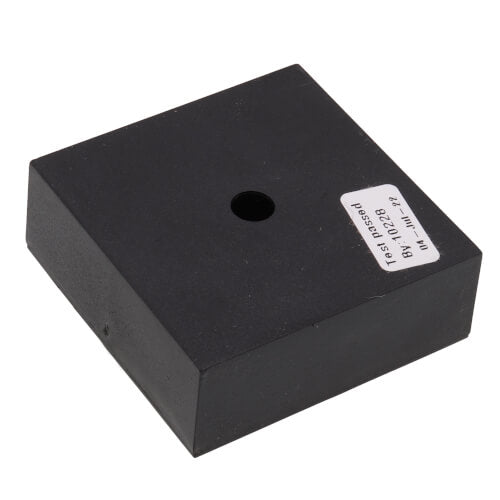

Littelfuse TDUH3001A Solid State Timer Universal Voltage

Product Description

The TDUH3001A from Littelfuse is a state-of-the-art solid state timer designed for high precision time delay applications across multiple voltage platforms. This device is ideal for use in process control systems and various types of manufacturing equipment.

• Universal voltage compatibility from 100 to 240 volts.
• Digital timing accuracy with adjustments via DIP switches.
• Robust encapsulated design suitable for all industrial environments.

Product Highlights

This time delay unit stands out with its microcontroller-based operation ensuring repeat accuracy of plus or minus 0.1 percent. It features 3 distinct time ranges, providing flexibility from 0.1 seconds up to 2.8 hours.

Technical Specifications

• Model Number: TDUH3001A
• Time Delay Range: 0.1 seconds to 2.8 hours
• Voltage Rating: 100 to 240 volts
• Frequency: 50-60 Hz
• Output Type: Isolated contacts for both AC and DC load control
• Dimensions: Shipping depth 2 inches, width 2 inches, height 1.21 inches
• Weight: 0.2 pounds
