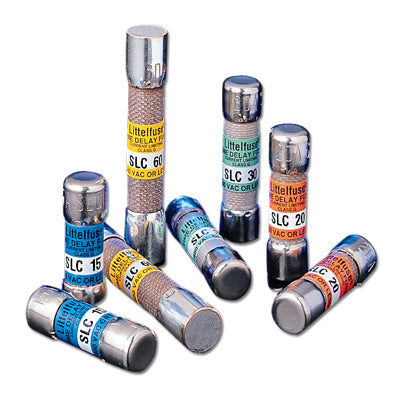

Littelfuse SLC025 LFSE SLC025 Fus 480V Med T/D Class G Fuse

Product Description

The Littelfuse SLC025 fuse is engineered for precise operation in branch circuit protection applications, featuring a medium time-delay design and a terminal type cartridge. This 25 amp, 480V AC, Class G fuse offers enhanced safety with a 100,000 A.I.R., ensuring reliable performance in electrical setups.

• Increased system reliability due to unique time-delay characteristics.
• Designed to prevent the usage of incorrect ampere and voltage rated fuses.
• Class G dimensions offer compactness and compliance with NEC standards.

Product Highlights

This fuse is recognized for its advanced protection capabilities, including a current-limiting design that minimizes equipment damage during short circuits. Its size allows for closer sizing to actual equipment needs, thus reducing unnecessary oversizing and enhancing performance efficiency.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: SLC025
• Product Type: Time Delay Fuse
• Applications: Branch Circuit Protection

Technical Specifications

• Type: Class G
• Amperage Rating: 25 Amp
• Voltage Rating: 480 VAC
• Interrupting Rating: 100 kA at 480 VAC
• Body Type: Cartridge
• Terminal Type: Ferrule
• Body Size: 13/32 in Dia x 1-5/8 in L
• Standards/Approvals: UL 248-5, CSA Certified, PROP65 Warning
