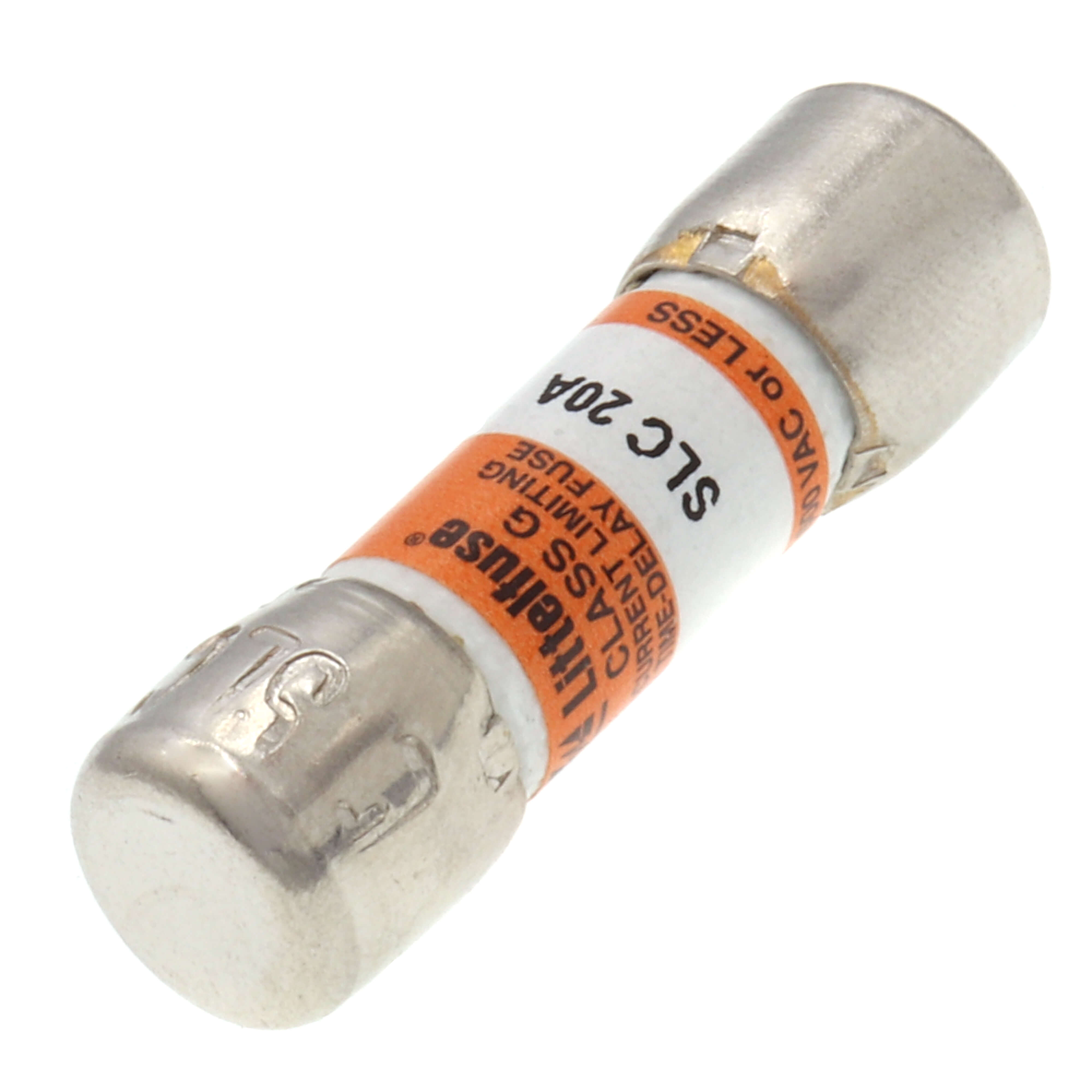

Littelfuse SLC020 20 Amp 600 VAC Time Delay Fuse

Product Description

The Littelfuse SLC020 Time Delay Fuse is designed for reliability in protecting electrical circuits. Offering a 20 Amp capacity and handling up to 600 VAC, this fuse is ideal for branch circuit protection. It's engineered to prevent damage by allowing a controlled response to overcurrents.

• Rated for 100,000 AIC, ensuring robust circuit protection.
• Class G fuse with medium time-delay feature for enhanced protection.
• Compact design compatible with midget fuse dimensions to meet NEC requirements.

Product Highlights

This fuse features a non-indicating, cylindrical body style with a length of 1-13/32 inches and a diameter of 13/32 inches. Its advanced current-limiting design minimizes damage from short circuits and overloads by isolating and clearing the faulted circuit efficiently.

Product Information

Standard Information

• Brand: Littelfuse
• Type: Time Delay

Technical Specifications

• AC Voltage Rating: 600 VAC
• DC Voltage Rating: 170 VDC
• Interrupt Rating: 100kA at 600VAC, 10kA at 170VDC
• Mounting Type: Holder
• Body Material: Melamine
• Standards: CE, UL 248-5 Class G, UL Listed, CSA Certified
• Dimensions: 1-13/32inch L x 13/32inch dia
