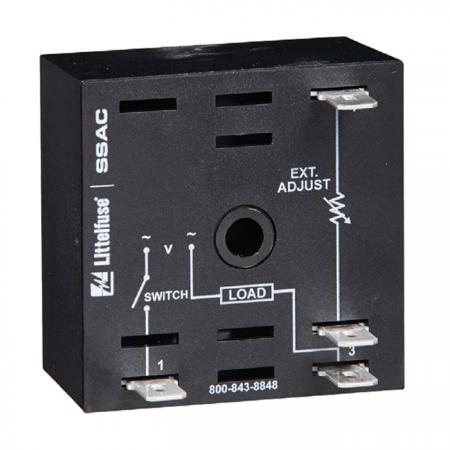

LITTELFUSE PHS120A20 AC PHASE CONTROL 20 A

Product Description

The LITTELFUSE PHS120A20 is an AC phase control relay designed for effective load management. It is suitable for applications requiring control of heavy electrical loads. This relay operates within a frequency range of fifty to sixty Hertz and can handle up to twenty amperes of steady current. The product features a single pole, single throw (SPST) normally open contact form. The relay is built for surface mounting with quick-connect terminals, allowing for straightforward installation.

• Handles up to 20 A steady state and 200 A inrush current
• Temperature rating of -20 to 60 degrees Celsius
• CSA certified and UL recognized for safety and reliability

Product Highlights

This relay offers solid state design longevity, allowing it to manage heavy loads efficiently. It features an external adjustment potentiometer rated for 230 VAC, which provides ease of use in controlling electrical systems.

Product Information

Standard Information

• Manufacturer: LITTELFUSE
• Series: PHS

Technical Specifications

• Amperage Rating: 20 A
• Contact Form: SPST/NO (1 Form A)
• Dimensions: 2 inches H x 2 inches W x 1.51 inches D
• Frequency Rating: 50/60 Hz
• Mounting Type: Surface
• Temperature Rating: -20 to 60 degrees Celsius
• Terminal Type: Male Quick-Connect
