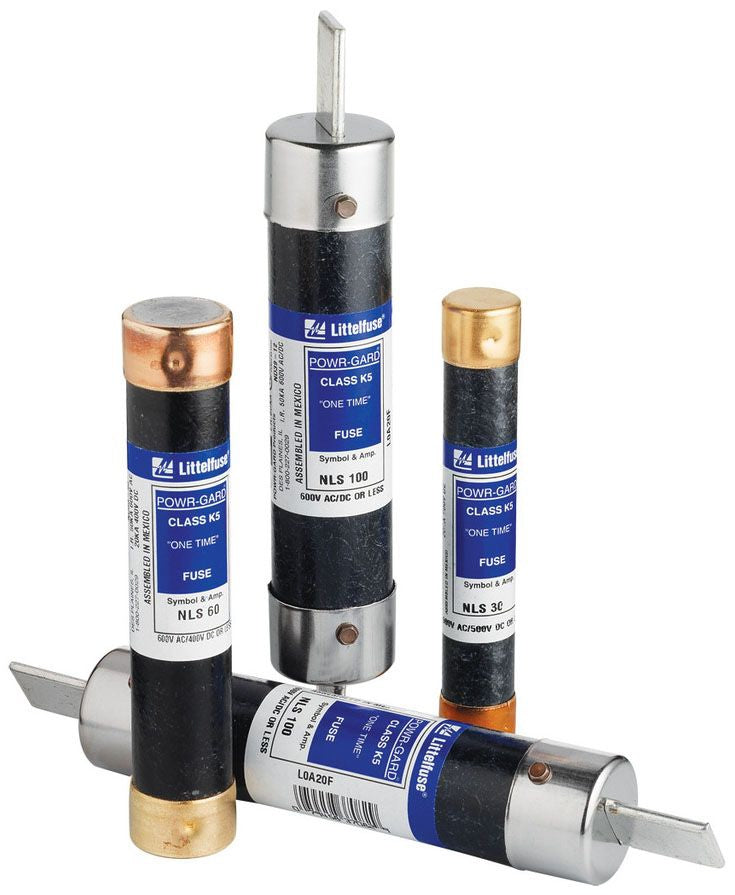

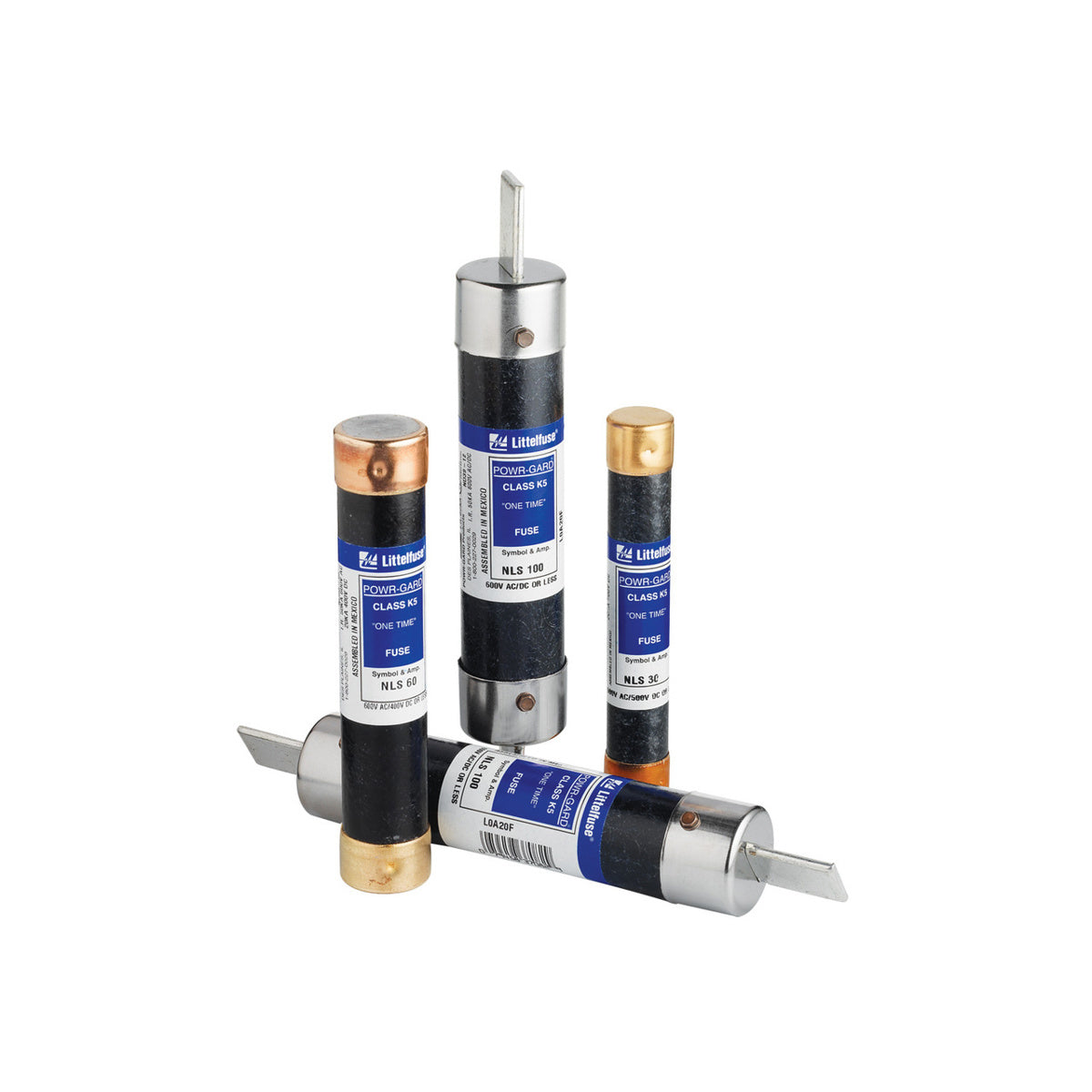

Littelfuse NLS150 NLS Series Fuse 150A 600V Class K5

Product Description

The Littelfuse NLS150 is a reliable fast-acting fuse designed for general-purpose applications. With a current rating of one hundred fifty amperes and operating voltage of six hundred volts, it serves in both AC and DC systems. The NLS150 is suited for various residential and commercial settings where short circuit current protection is necessary.

• Class K5 rating provides adequate interrupting capacity
• Economical solution for feeder and branch circuit protection
• Rated for short circuit currents up to fifty thousand amperes

Product Highlights

This fuse is critical for applications with little or no motor load, ensuring safety and functionality in critical power distribution circuits.

Product Information

Standard Information

• Catalog Number: NLS150
• Manufacturer: Littelfuse

Technical Specifications

• Amperage Rating: 150A
• Voltage Rating: 600V AC/DC
• Interrupting Rating: 50000A (Symmetrical, DC)
• Terminal Type: Blade
• Body Type: Cartridge
• Body Size: 1-27/32 inches diameter x 9-5/8 inches length
• Approval Standards: UL 248-9, CSA
• Country of Origin: Mexico
