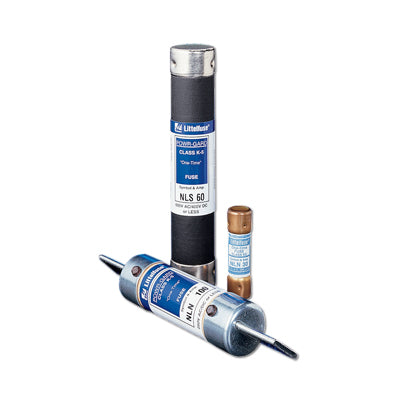

Littelfuse NLS050 UL CLASS K5 ONE-TIME FUSE 50 A 600 VAC/400 VDC

Product Description

Littelfuse NLS050 is a one-time fuse designed for quick operation. This fuse is part of the POWR-GARD series and has a fast blow action, rated at fifty amperes for both six hundred volts alternating current and four hundred volts direct current. With an interrupting capacity of up to twenty to fifty kiloamperes, this fuse meets the needs of many residential and commercial applications.

• Suitable for general-purpose circuits
• Non-indicating type for simple applications
• Ferrule terminal design for easy integration

Product Highlights

This fuse is economical and intended for applications requiring lower initial costs. It is ideal for circuits with little or no motor load, ensuring safety with adequate interrupting capacity for residences and smaller facilities.

Product Information

Standard Information

• Manufacturer: Littelfuse
• MPN: NLS050

Technical Specifications

• Amperage Rating: 50 A
• Voltage Rating: 600 VAC / 400 VDC
• Interrupt Rating: 20/50 kA
• Body Type: Cartridge
• Body Size: 1-1/16 inches Dia x 5-1/2 inches L
• Class: K5
• Mounting Type: Holder
• Terminal Type: Ferrule
• Indicating: Non-Indicating
• Standards/Approvals: UL E81895, CSA LR29862, Standard 248-9
