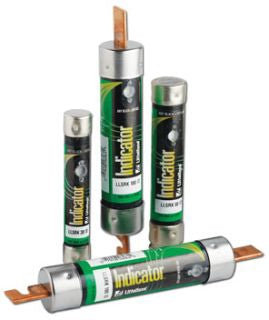

Littelfuse LLSRK090 Time Delay Fuse 90A 600VAC Dual Element Fuse

Product Description

Littelfuse LLSRK090 is a time delay fuse rated for ninety amps at six hundred volts AC. This is a dual element Class RK1 fuse designed to protect electrical circuits from overloads and short circuits. It features a current limiting design that reduces damage to circuits and equipment. The LLSRK090 stops damaging short circuits faster than typical protective devices.

• Current limiting design minimizes circuit damage.
• Three hundred kA interrupting rating for high short circuit currents.
• Low resistance design decreases power consumption and reduces utility bills.

Product Highlights

This fuse is suitable for various applications, including general-purpose circuits, motors, and transformers. Its design allows it to withstand repeated surges without opening unnecessarily.

Product Information

Standard Information

• Manufacturer: Littelfuse
• MPN: LLSRK090

Technical Specifications

• Amperage Rating: 90 A
• Voltage Rating: 600 VAC / 300 VDC
• Interrupting Rating: 200 kA (symmetrical)
• Diameter: 1.31 inches
• Type: Class RK1
• Terminal Type: Blade
• Body Type: Cartridge
• Material: Fiberglass
