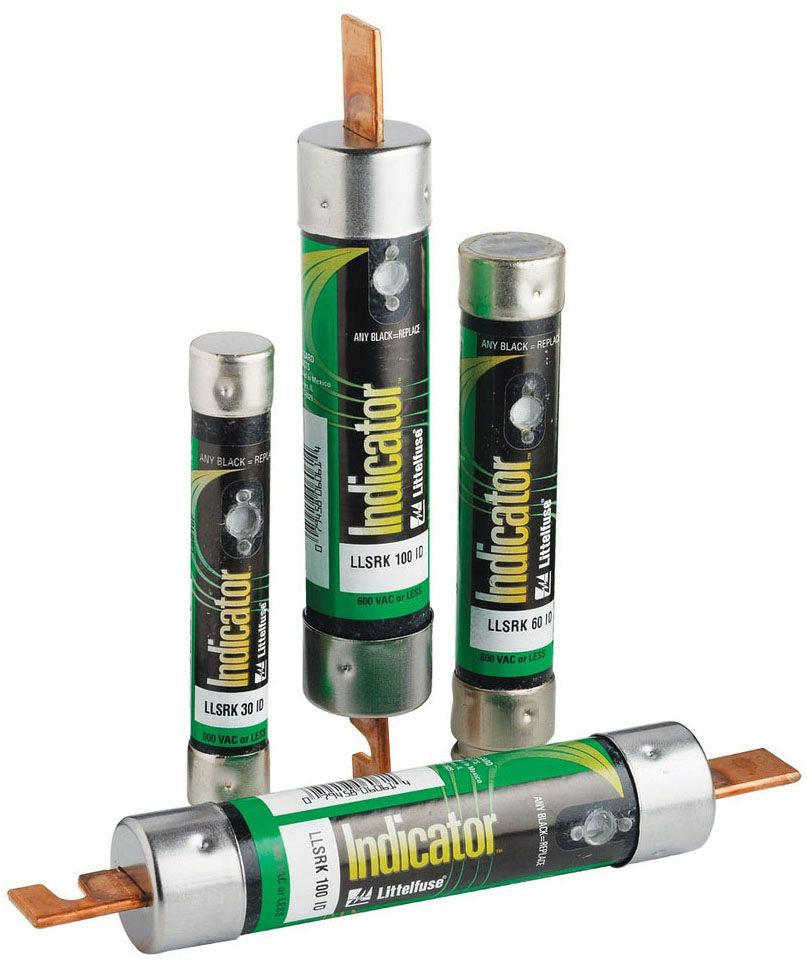

Littelfuse LLSRK060 Time Delay Fuse 60A 600VAC/300VDC

Product Description

Littelfuse LLSRK060 is a time delay fuse rated at sixty amperes for use up to six hundred volts alternating current or three hundred volts direct current. This dual-element fuse provides effective protection against overloads and short circuits in electrical systems.

• Current limiting to protect circuits
• Interrupting rating of two hundred kilowatts at six hundred volts
• Suitable for general purpose applications

Product Highlights

This fuse is designed to minimize damage to electrical circuits under fault conditions. Its fast acting mechanism stops short circuits quickly, contributing to system reliability.

Product Information

Standard Information

• Manufacturer: Littelfuse
• MPN: LLSRK060

Technical Specifications

• Amperage Rating: 60 A
• Voltage Rating: 600 VAC / 300 VDC
• Class: RK1
• Interrupting Rating: 200000 Ampere (Symmetrical), 20000 Ampere (DC)
• Body Size: 1-1/16 inches diameter x 5-1/2 inches length
• Material: Fiberglass
• Terminal Type: Ferrule
• Approval: UL 248-12, CSA
