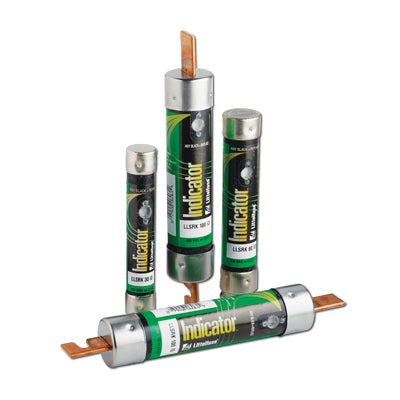

Littelfuse LLSRK015 UL CLASS RK1 DUAL ELEMENT TIME DELAY FUSE

Product Description

Littelfuse LLSRK015 is a UL Class RK1 dual element time delay fuse. It has a current limiting feature suitable for various applications including motors and transformers. This fuse operates at fifteen amperes and is rated for six hundred VAC and three hundred VDC. It features a cartridge body with a fiberglass construction, making it reliable in protecting circuits under fault conditions. The LLSRK015 effectively interrupts fault currents of up to two hundred kA at six hundred VAC and twenty kA at three hundred VDC.

• Current limiting design minimizes damage during short circuits.
• Dual element construction for excellent time delay performance.
• Non-indicating fuse with a ferrule terminal type for holder mounting.

Product Highlights

This fuse is designed for general purpose applications, enhancing safety and reducing downtime due to electrical faults.

Product Information

Standard Information

• Manufacturer: Littelfuse
• UPC: 07945835068

Technical Specifications

• Amperage Rating: 15 A
• Voltage Rating: 600 VAC/300 VDC
• Interrupt Rating: 200/20 kA
• Body Size: 13/16 inches Dia x 5 inches L
• Body Type: Cartridge
• Element: Dual
• Material: Fiberglass
• Mounting Type: Holder
• Class: RK1
• Rejection Type: Rejection
• Standards/Approvals: UL 248-12, UL File No. E81895, CSA LR29862
