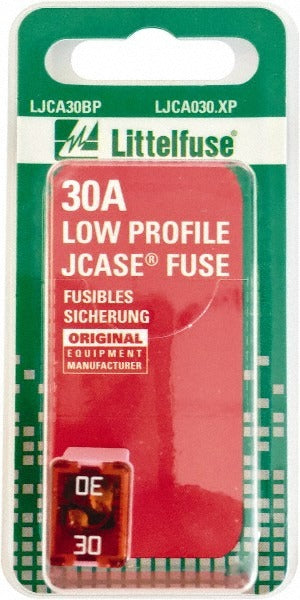

Littelfuse LJCA030.XP Low Profile Jcase Fuse 30A 58VDC

Product Description

The LITTELFUSE LJCA030.XP is a low-profile JCASE blade-style automotive fuse rated at 30 amps and 58 volts DC. It is designed for use in fuse boxes and power distribution centers found in passenger cars and commercial vehicles. The housing is constructed from PA66-GF13 glass-filled nylon for dimensional stability and heat resistance, with a PSU cover material. A measured resistance of 2.68 milliohms supports low heat generation under normal operating loads. Licensed electricians and automotive technicians install this fuse during circuit protection service or as a direct replacement in existing fuse panels.

This fuse is suited for both passenger car and commercial vehicle electrical systems where low-profile packaging is required. Its LP JCASE series form factor fits fuse holders and blocks designed for JCASE-style blades. The standard blade configuration allows straightforward insertion into compatible fuse cavities without additional tooling. It meets ISO 8820-4, RoHS, and SAE J2741 requirements, making it appropriate for OEM and aftermarket service applications across a broad range of 12-volt and 24-volt vehicle platforms.

Key Features

• 30-amp rating with 58 VDC maximum voltage for automotive circuit protection
• Low-profile LP JCASE form factor fits space-constrained fuse centers
• Standard blade style for drop-in replacement in compatible JCASE holders
• PA66-GF13 glass-filled nylon housing resists heat and vibration
• Meets ISO 8820-4, RoHS, and SAE J2741 compliance standards
• Pink color coding for quick 30-amp visual identification

Compatibility

Designed for passenger car and commercial vehicle electrical systems requiring a low-profile JCASE standard blade fuse rated at 30 amps and 58 VDC. Verify fuse holder compatibility with LP JCASE blade dimensions before installation.

Installation Notes

Disconnect the vehicle battery or isolate the affected circuit before removing or installing any fuse. Automotive technicians should confirm the replacement fuse amperage matches the circuit protection requirement exactly — never substitute a higher-amperage fuse to resolve a repeated open. Use a fuse puller tool to avoid bending the blade terminals. Installations in commercial vehicles may be subject to FMCSA or OEM wiring standards.
