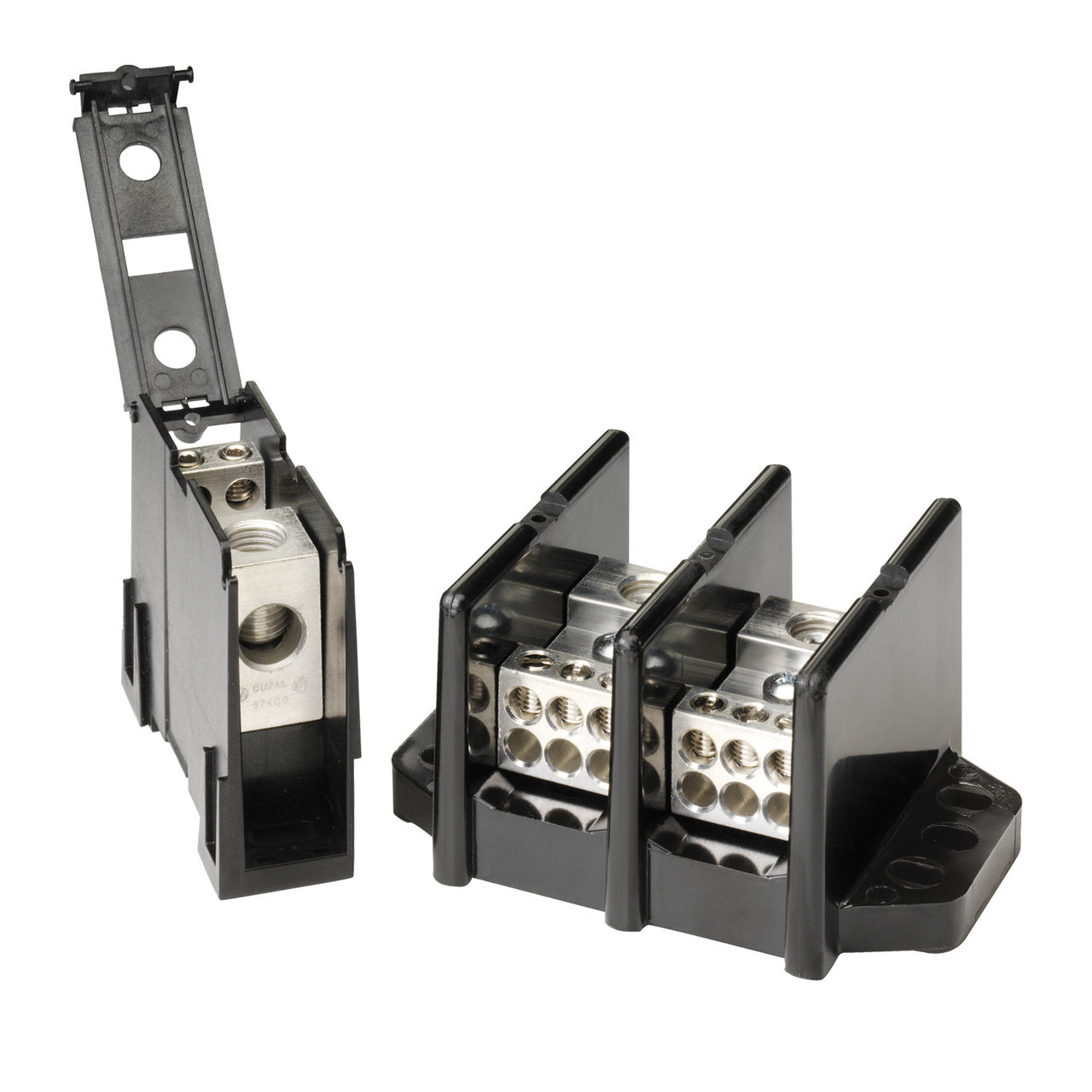

Littelfuse LD2570-3DIN ACS 600V Distribution Block 175A 3 Pole DIN Mount

Product Description

The Littelfuse LD2570-3DIN is a power distribution block designed for effective electrical systems. It supports a voltage rating of six hundred VAC and accommodates amperage of one hundred seventy-five A. The unit consists of three poles and allows for connections with wires ranging from fourteen to two/zero AWG.

• UL Listed and CSA Certified for safety and reliability
• DIN rail mounting for easy installation
• Fixing junction tap-off point for enhanced user convenience

Product Highlights

The Littelfuse LD2570-3DIN is suitable for distributing power to multiple loads, making it ideal for diverse industrial applications.

Product Information

Standard Information

• Brand: Littelfuse
• Manufacturer Part Number: LD2570-3DIN
• Country of Origin: United States

Technical Specifications

• Amperage Rating: 175 A
• Voltage Rating: 600 VAC
• Dimensions: 3 inches H x 2.57 inches W x 2.42 inches D
• Material: Thermoplastic
• Number of Poles: 3
• Primary Connections Pole: 1
• Secondary Connection Pole: 4
• Short Circuit Current Rating: 100 kA
• Series: LD Series
• Application: For power distribution to more than one load
• Standards/Approvals: UL Listed, UL Recognized, CSA Certified
