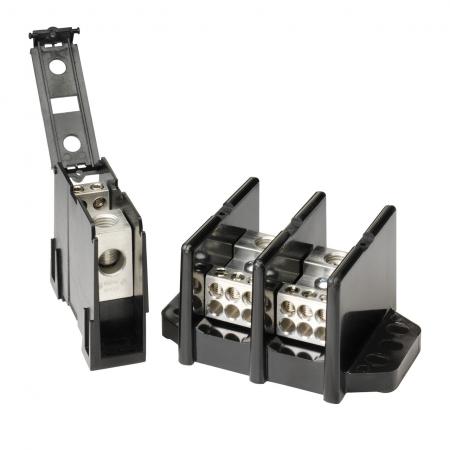

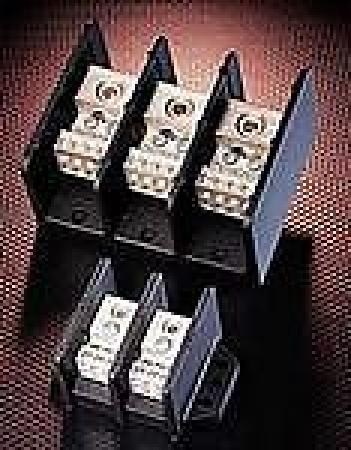

LITTELFUSE LD0402-3 POWER DISTRIBUTION BLOCK 600 VAC 175 A

Product Description

The LITTELFUSE LD0402-3 Power Distribution Block is a crucial component for effectively distributing electrical power. This model operates at a voltage of six hundred VAC and a current rating of one hundred seventy-five amperes. It comes with three poles, with one primary connection and four secondary connections, making it suitable for various electrical applications.

• Features multiple connection points for efficient power distribution.
• Designed for wire sizes ranging from fourteen to two/zero AWG.
• Rated for a short circuit current of one hundred kA.

Product Highlights

The LD0402-3 is designed to meet the demands of various industrial applications, providing reliability and performance.

Product Information

Standard Information

• Manufacturer: LITTELFUSE
• Product Series: LD Series

Technical Specifications

• Amperage Rating: 175 A
• Voltage Rating: 600 VAC
• Color: Black
• Material: Thermoplastic
• Dimensions: 2.9 in H x 5.38 in W x 3.38 in D
• Number of Poles: 3
• Primary Connections/Pole: 1
• Secondary Connections/Pole: 4
• Short Circuit Current Rating: 100 kA
• Wire Size: 14 to 2/0 AWG
