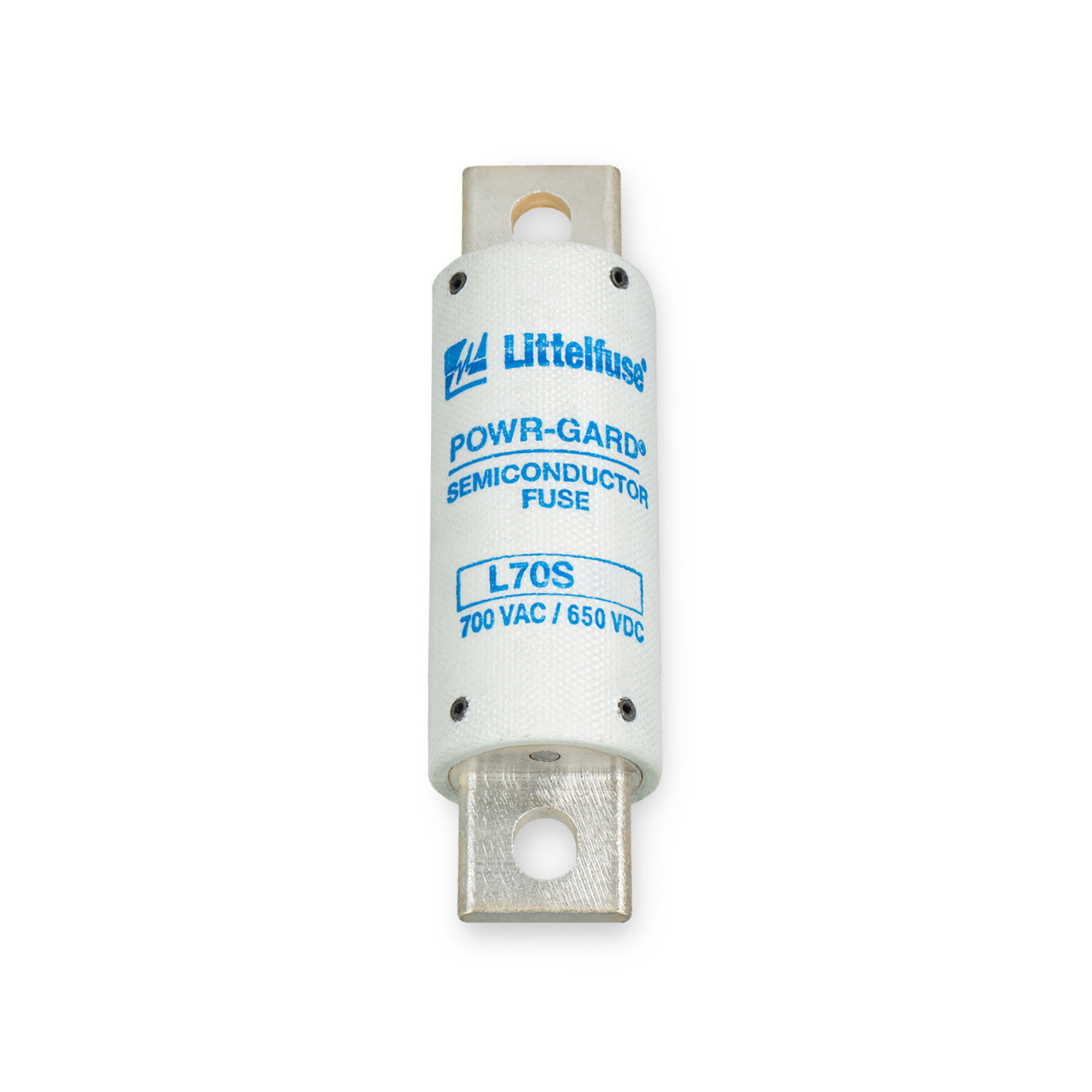

Littelfuse L70S070 Fus 700V Semiconductor 70A

Product Description

The Littelfuse L70S070 is a high-speed fuse designed to protect modern equipment and systems. Manufactured with advanced technology, this 700V semiconductor fuse offers accuracy and consistent quality. It features very fast-acting opening and reliable interruption of overcurrents to meet system requirements. The L70S070 provides supplementary protection in UL listed equipment.

• AC: 200 kAIC
• DC: 20 kAIC — Reliable interruption of all overcurrents meets present and future system requirements.
• Extremely Current Limiting — Low I2t and peak let-through currents meet most semiconductor requirements.

Product Highlights

This high-speed fuse minimizes heating and power consumption while controlling transient overvoltages to reduce semiconductor failure.

Product Information

Standard Information

• Brand: Littelfuse
• Manufacturer Part Number: L70S070

Technical Specifications

• Current Rating (Continuous) in Amps: 70
• Interrupting Rating: 20 kA @ 650 Vdc
• Opening: Very Fast-Acting (FF)
• Maximum AC Voltage (V): 700
• Maximum DC Voltage (V): 650
• Family style: Traditional Round Body
• Indicating: No
• Mounting Method: Bolt-In
• Brand: LITTELFUSE
• Manufacturer Part Number: L70S070.V
