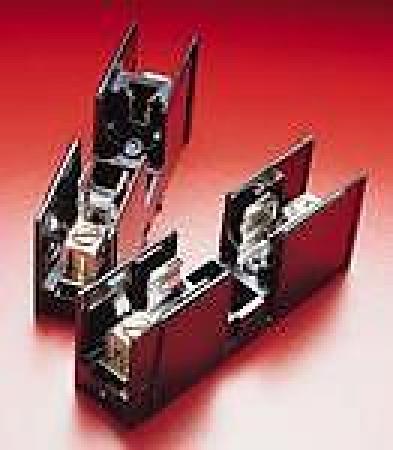

LITTELFUSE L60030M-3SQ Fuse Block 600 VAC/VDC 30 A 10 Pack

Product Description

Littelfuse L60030M-3SQ is a gangable midget fuse block designed for use in electrical systems. It is rated for a maximum of 600 VAC/VDC and 30 amps. This fuse block is compatible with wire sizes ranging from 14 to 10 AWG and features three poles.

• Gangable design allows for multiple fuse blocks to be combined.
• Screw connection type for secure attachment.
• DIN rail mounting for easy installation.

Product Highlights

This fuse block is suitable for use with BLF, BLN, BLS, FLA, FLM, FLQ, FLU, KLK, KLKD, and KLQ series fuses. Constructed from thermoplastic material, it withstands temperatures up to 125 degrees Celsius.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Material: Thermoplastic

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 600 VAC/VDC
• Number of Poles: 3
• Fuse Length: 38 mm
• Fuse Diameter: 10 mm
• Dimensions: 2.283 inches W x 1.25 inches D x 3 inches H
• Mounting Type: DIN Rail
• Temperature Rating: 125 degrees Celsius
