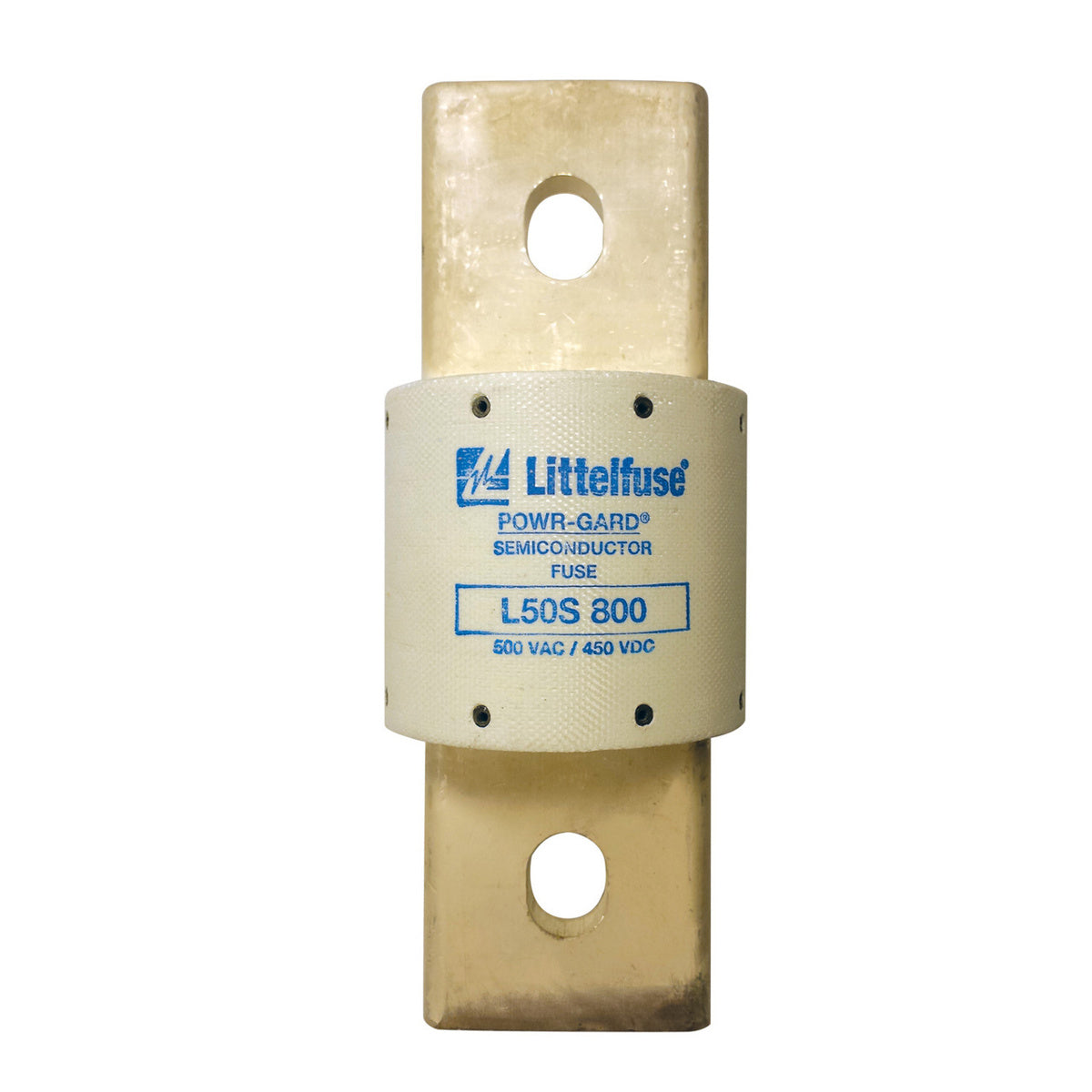

Littelfuse L50S800 Very Fast Acting Semiconductor Fuse

Product Description

The Littelfuse L50S800 is a very fast acting semiconductor fuse designed to provide reliable protection for various electrical systems. This fuse is ideal for safeguarding AC and DC drives, power converters, and UPS applications. It is built using advanced materials technology and metallurgical research to ensure consistent quality and dependability.

• Designed to protect semiconductors
• UL recognized for safety and performance
• Low watts loss and controlled transient over voltages

Product Highlights

Very fast acting fuse that reduces the risk of equipment damage from overcurrent.

Product Information

Standard Information

• Brand: Littelfuse
• Catalog Number: L50S800

Technical Specifications

• Amperage Rating: 800 A
• Voltage Rating: 500 VAC / 450 VDC
• Interrupt Rating: 200/20 kA
• Body Size: 2-1/2 inches Dia x 6-15/32 inches L
• Body Type: Traditional/Round
• Terminal Type: Blade
• Mounting Type: Bolt
• Material: Fiberglass
