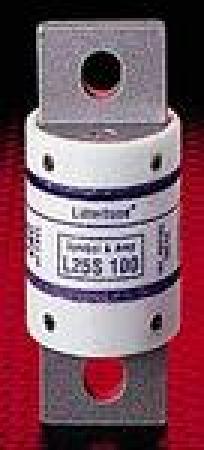

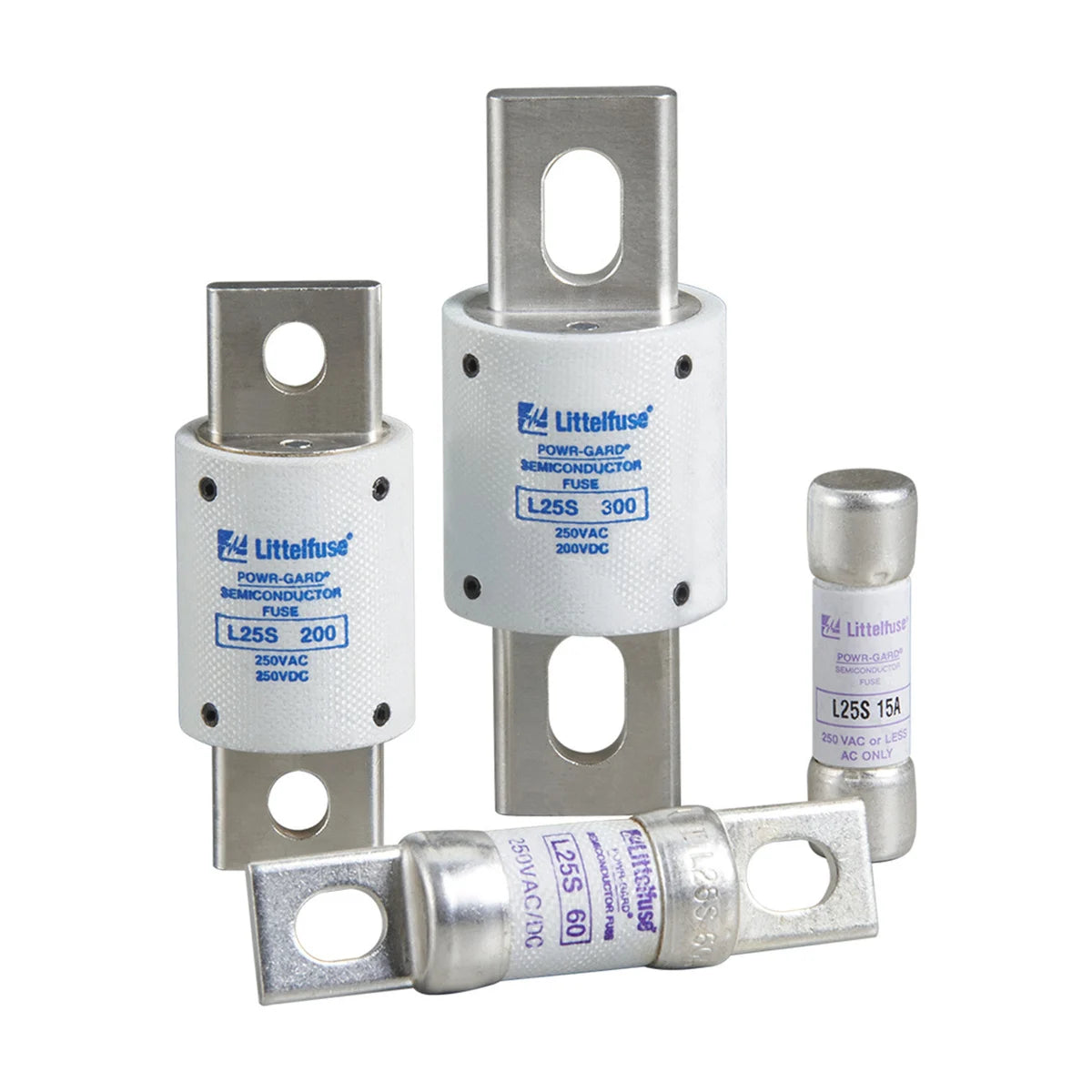

Littelfuse L25S250 Very Fast Acting Semiconductor Fuse

Product Description

Littelfuse L25S250 is a very fast acting semiconductor fuse designed for protecting electronic circuits. This fuse is engineered with advanced technology for improved accuracy and reliability. It is suitable for both AC and DC applications, making it an essential component in electronic systems.

• High speed fuse for semiconductor protection
• Suitable for both 250 VAC and 200 VDC
• Very fast acting for immediate response to overcurrent

Product Highlights

This Littelfuse product is designed for use in semiconductor applications. It protects components like silicon controlled rectifiers, diodes, and transistors. Its fast acting characteristics reduce the risk of damage during overcurrent events.

Product Information

Standard Information

• Catalog Number: L25S250
• Manufacturer: Littelfuse

Technical Specifications

• Amperage Rating: 250 A
• Voltage Rating: 250 VAC/200 VDC
• Body Size: 1-1/2 in Dia x 3-27/32 in L
• Material: Fiberglass
• Mounting Type: Bolt
• Terminal Type: Blade
• Interrupt Rating: 200/20 kA
• Indicating Type: Indicating
