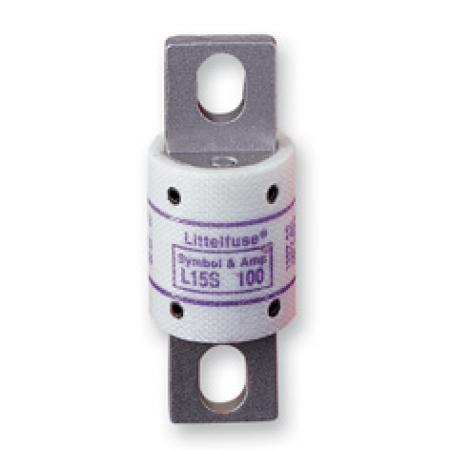

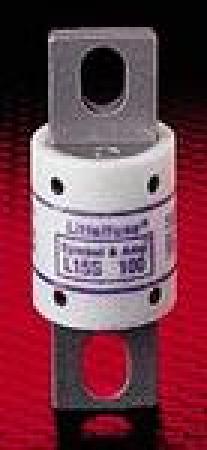

LITTELFUSE L15S080 Very Fast-Acting Semiconductor Fuse 80 A 150 VAC/100 VDC

Product Description

Littelfuse L15S080 is a very fast-acting semiconductor fuse designed for high-speed applications. This product has an amperage rating of eighty amps and is suitable for use in circuits with voltage ratings of one hundred fifty volts AC and one hundred volts DC. It features a fiberglass body with a diameter of thirteen thirty-seconds of an inch and a length of one and one-half inches.

• Very fast-acting and current-limiting
• Indicating and available with blade terminals
• Suitable for high-voltage applications

Product Highlights

This fuse is essential for the protection of semiconductor devices including SCRs, diodes, and similar components.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: L15S080
• UPC: 079458002393

Technical Specifications

• Amperage Rating: 80 A
• Body Size: 13/32 in Dia x 1-1/2 in L
• Body Type: Traditional/Round
• Indicating: Yes
• Interrupt Rating: 100/20 kA
• Material: Fiberglass
• Mounting Type: Stud
• Series: L15S
• Terminal Type: Blade
• Type: Very Fast Acting High Speed
• Voltage Rating: 150 VAC/100 VDC
