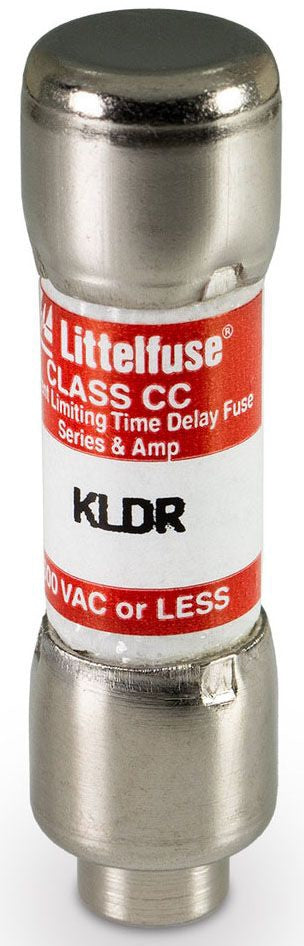

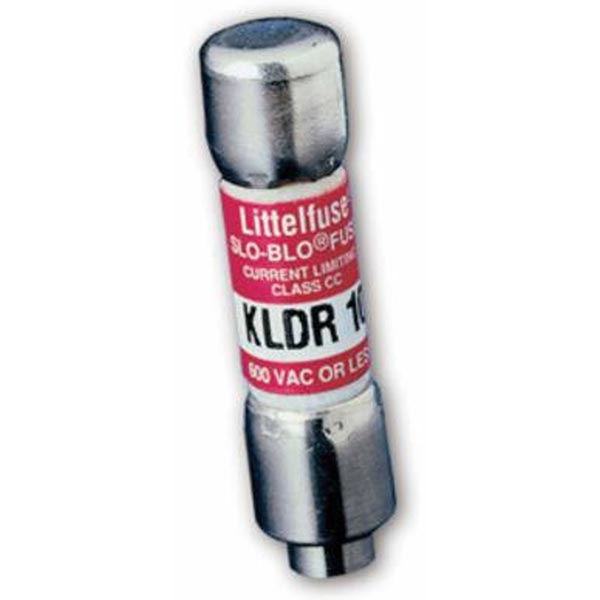

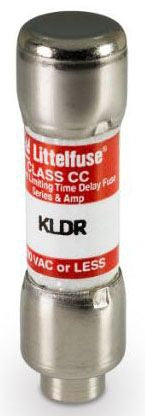

Littelfuse KLDR1.12TXP LIT Current Limiting Time Delay Fuse 1.12 A 600 VAC/300 VDC 20/200 kA Interrupt

Product Description

Littelfuse KLDR1.12TXP is a current limiting time delay fuse designed for transformer protection. This fuse is ideal for safeguarding control transformers, solenoids, and similar inductive components during high magnetizing currents.

• 1.12 amp current rating, suitable for high voltage applications.
• Rated for 600 VAC and 300 VDC with a high interrupting capacity.
• Time delay feature protects motor branch circuits effectively.

Product Highlights

Designed to provide reliable protection for electrical circuits, ensuring safety and durability during electrical surges.

Product Information

Standard Information

• Brand: Littelfuse
• Part #: KLDR1.12TXP

Technical Specifications

• Type: Current Limiting
• Class: CC
• Amperage Rating: 1.12 A
• Voltage Rating: 600 VAC/300 VDC
• Interrupt Rating: 20/200 kA
• Response Time: 12 s
• Body Size: 13/32 inches Diameter x 1-1/2 inches Length
• Mounting Type: Holder
• Material: Melamine
• Terminal Type: Ferrule
