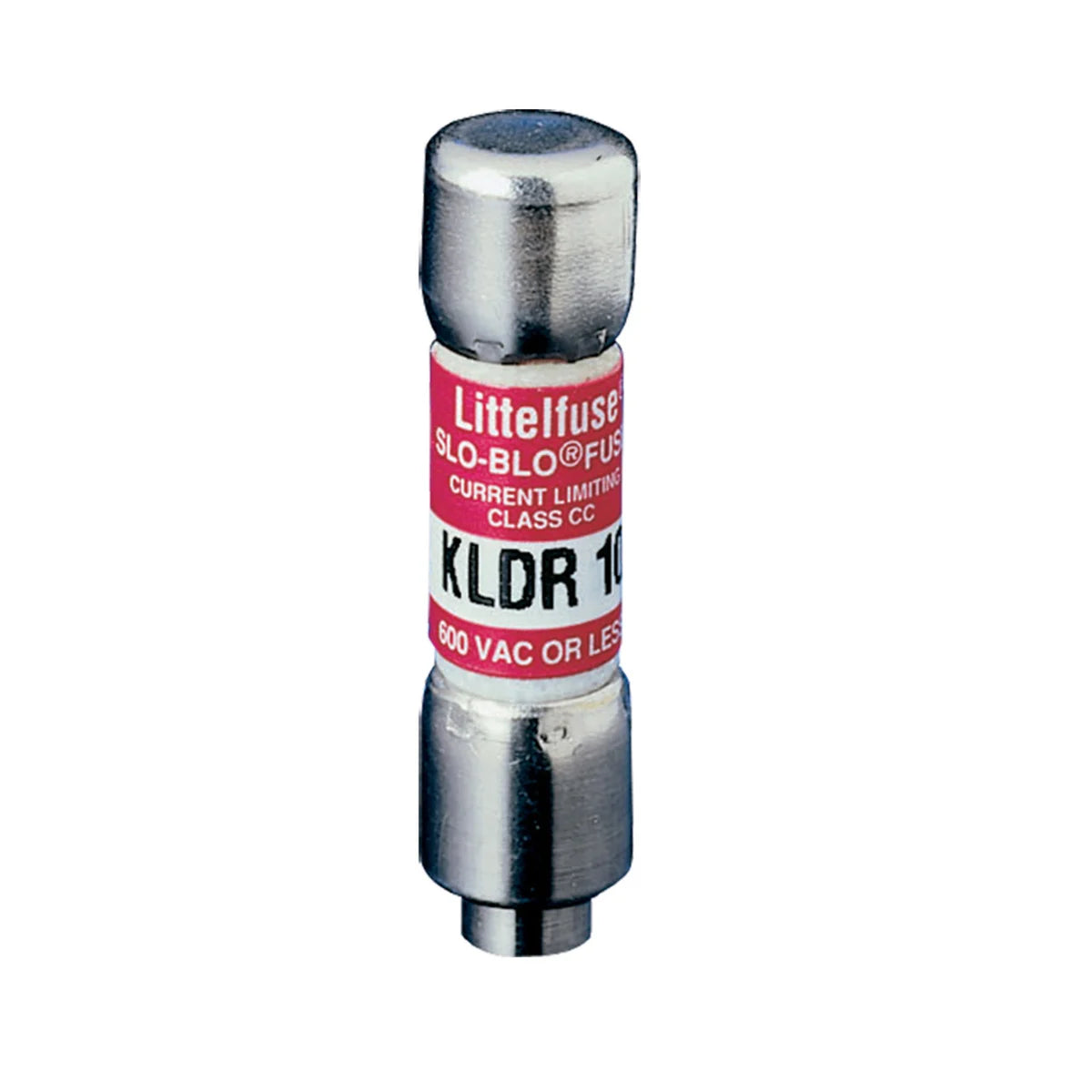

Littelfuse KLDR006.TXP KLDR Time Delay Fuse 6A 600VAC/300VDC

Product Description

The Littelfuse KLDR006.TXP is a time-delay fuse designed to protect control transformers and solenoids. This fuse is suitable for inductive components that have high magnetizing currents during the initial half-cycle. It also provides protection for motor branch circuits containing IEC or NEMA rated motor controllers or contactors.

• Time-delay feature for effective protection
• Current limiting design minimizing damage from short circuits
• UL listed for safety and reliability

Product Highlights

The KLDR fuses offer significant protection in electrical applications, particularly for transformers.

Product Information

Standard Information

• Brand: Littelfuse
• Manufacturer Part Number: KLDR006.TXP

Technical Specifications

• Amperage Rating: 6 A
• Voltage Rating: 600 VAC / 300 VDC
• Body Size: 13/32 in Dia x 1-1/2 in L
• Type: Current Limiting
• Class: CC
• Response Time: 12 s
• Material: Melamine
• Interrupt Rating: 20/200 kA
