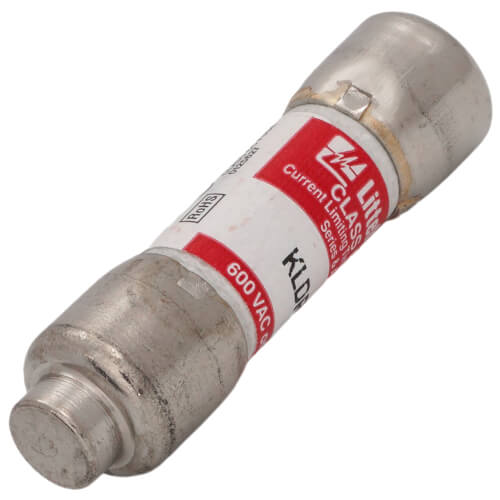

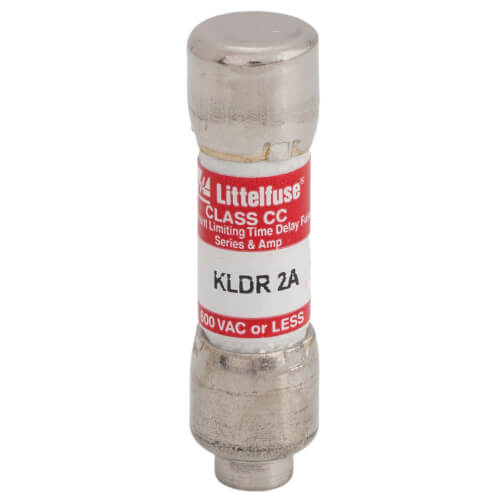

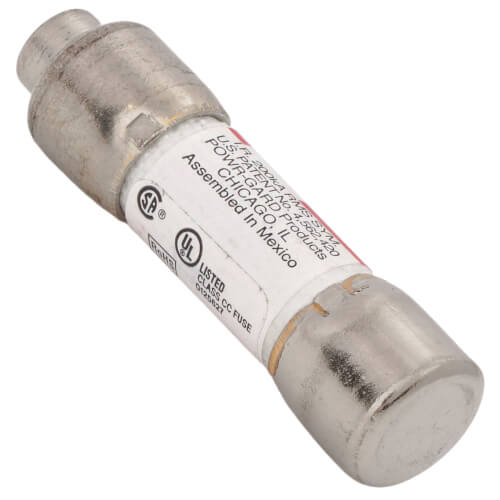

Littelfuse KLDR002.TXP Class CC Fuse 600V Time Delay 2 Amp

Product Description

The Littelfurge KLDR002.TXP is a Class CC fuse with a time-delay feature, rated for 600 volts and 2 amps. It is designed to protect control transformers, solenoids, and similar inductive components with high magnetizing currents.

• Time-delay characteristic to handle transient currents without tripping.
• Class CC size for compact fit in electrical panels.
• Capable of interrupting up to 200,000 amperes at rated voltage.

Product Highlights

This fuse provides enhanced protection by limiting current and reducing potential damage from short-circuit currents. Suitable for industrial settings with IEC or NEMA rated motor controllers.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: KLDR002.TXP
• Voltage: 600V
• Amperage: 2A

Technical Specifications

• Type: Class CC
• Response Time: Time-Delay
• Body Material: Melamine
• Mounting Type: Holder Mount
• Terminal Type: Ferrule
• Dimensions: 13/32 inch Dia x 1-1/2 inch L
• Safety Standards: UL 248-4, CSA LR29862
