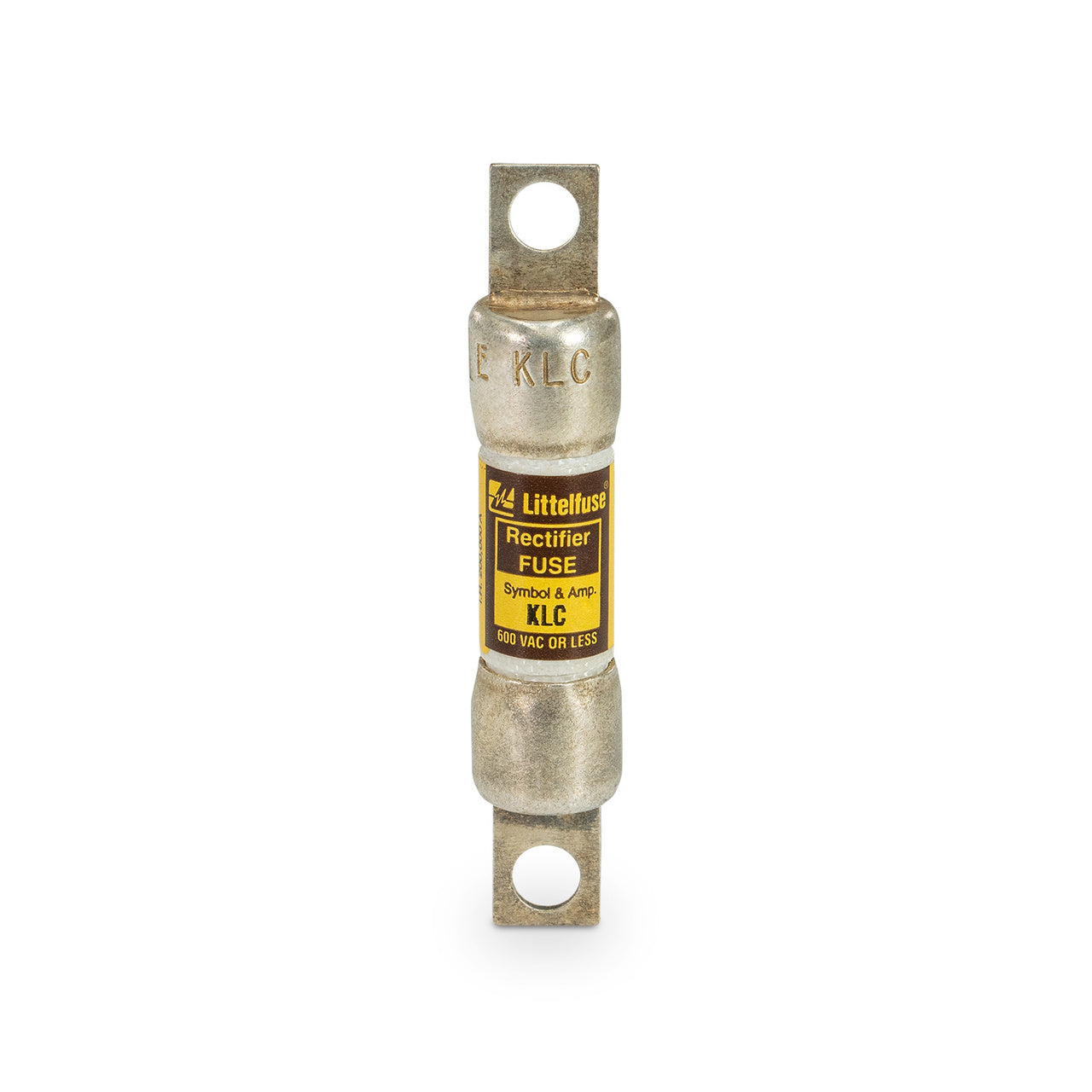

LITTELFUSE KLC045 Very Fast-Acting Semiconductor Fuse 45 A 600 VAC 200 kA

Product Description

Littelfuse KLC045 is a very fast-acting semiconductor fuse designed to provide reliable overcurrent protection. With a current rating of forty-five amps, a voltage rating of six hundred volts AC, and an interrupt rating of two hundred kiloamperes, this fuse is suitable for various electronic applications. The cartridge body measures thirteen-sixteenths inches in diameter by four and five-sixteenths inches in length.

• High-speed operation to limit current surges
• Designed for semiconductor device protection
• Meets safety standards with UL and CSA approvals

Product Highlights

This semiconductor fuse is critical in protecting diodes, SCRs, and other solid-state devices under fault conditions.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Series: KLC

Technical Specifications

• Amperage Rating: 45 A
• Voltage Rating: 600 VAC
• Interrupt Rating: 200 kA
• Body Size: 13/16 in Dia x 4-5/16 in L
• Mounting Type: Bolt
• Terminal Type: Blade
• Type: High Speed Traditional Very Fast Acting
• Body Type: Cartridge/Round
