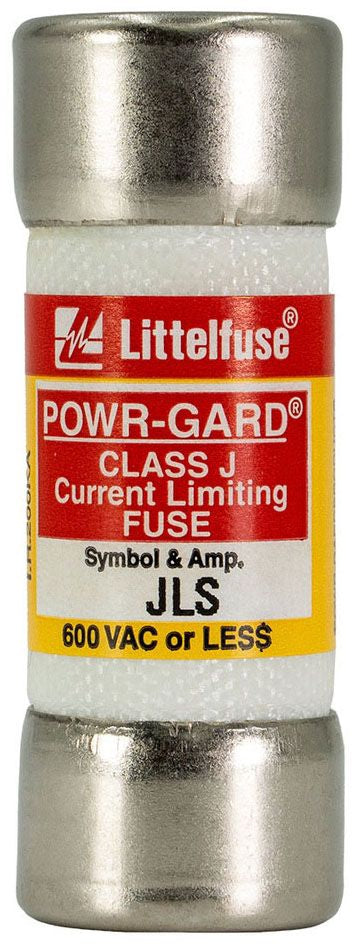

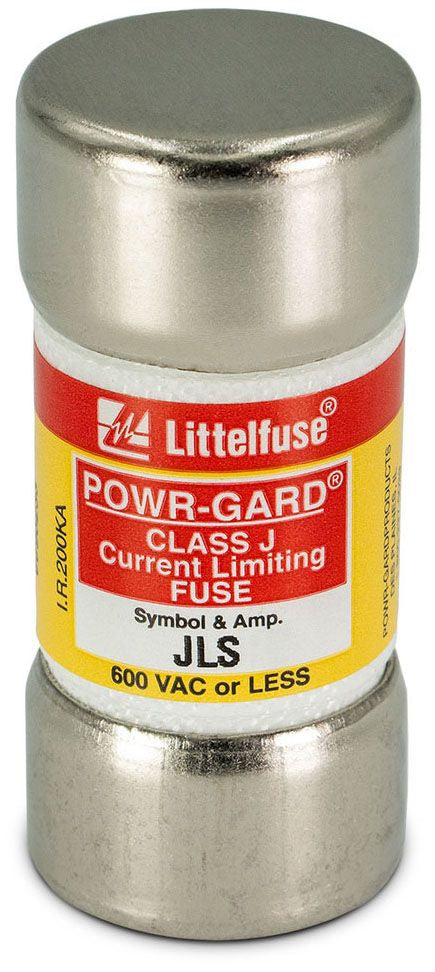

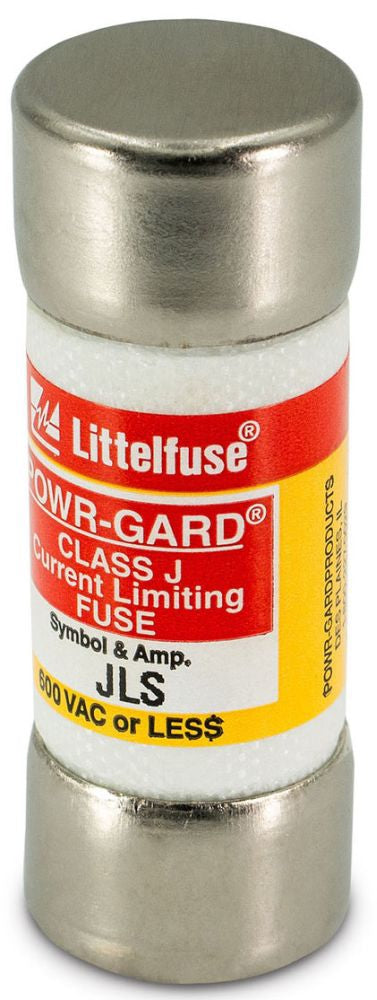

Littelfuse JLS025 Fast Acting Fuse 25 A 600 VAC 200 kA Interrupt

Product Description

Littelfuse JLS025 is a high-speed fast-acting fuse designed for overload and short circuit protection for non-inductive loads. This fuse is especially effective in general-purpose applications that require quick response times. Spacesaving design allows for easier installations.

• Rated for 25 Amperes and 600 Volts AC
• Interrupt rating of 200 kA ensures reliable protection
• Single element construction with a cartridge body style

Product Highlights

Ideal for protecting motors and other sensitive equipment from damage caused by overloads and short circuits. Use in applications where fast response is critical.

Product Information

Standard Information

• Brand: Littelfuse
• Manufacturer: Littelfuse

Technical Specifications

• Amperage Rating: 25 A
• Voltage Rating: 600 VAC
• Interrupt Rating: 200 kA
• Body Type: Cartridge
• Body Size: 13/16 in Dia x 2-1/4 in L
• Element: Single
• Material: Melamine
• Mounting Type: Bolt-On
• Frequency Rating: 50/60 Hz
• Indicating/Non-Indicating: Non-Indicating
• Application: General Purpose
