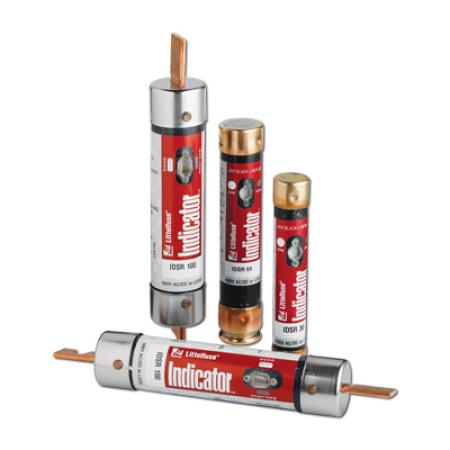

LITTELFUSE IDSR060 UL CLASS RK5 DUAL ELEMENT TIME-DELAY FUSE WITH INDICATION

Product Description

The LITTELFUSE IDSR060 is a UL Class RK5 dual element time-delay fuse designed for current limiting applications. This fuse offers performance in critical circuits, rated at 60 A and suitable for both AC and DC voltages up to 600 VAC/VDC.

• Features patented design for immediate fault isolation.
• Prevents equipment downtime with superior time delay.
• Indicating design helps identify blown fuses quickly.

Product Highlights

This time-delay fuse is helpful for use in DC circuits, solar inverters, motors, transformers, and fluorescent lighting applications.

Product Information

Standard Information

• Brand: LITTELFUSE
• MPN: IDSR060

Technical Specifications

• Amperage Rating: 60 A
• Body Size: 1-1/16 in Dia x 5-1/2 in L
• Body Type: Cylindrical
• Class: RK5
• Element: Dual
• Indicating/Non-Indicating: Indicating
• Interrupt Rating: 200/20 kA
• Material: Composite
• Mounting Type: Holder
• Rejection/Non-Rejection: Rejection
• Response Time: 10 s
• Series: IDSR
• Terminal Type: Ferrule
• Type: Current Limiting
• Voltage Rating: 600 VAC/VDC
