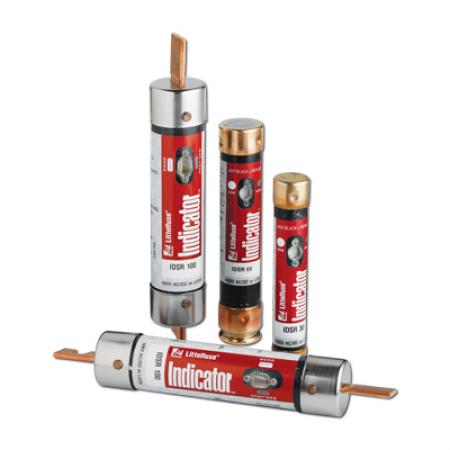

Littelfuse IDSR008 UL CLASS RK5 DUAL ELEMENT TIME-DELAY FUSE WITH INDICATION

Product Description

The Littelfuse IDSR008 is a UL Class RK5 dual element time-delay fuse designed for protection in electrical circuits. It features a strong cylindrical body and is suitable for a variety of applications, including solar inverters, motors, and fluorescent lighting. The fuse has an amperage rating of eight amps and operates at a voltage rating of six hundred VAC or VDC.

• Time-delay functionality reduces nuisance tripping
• Indicating feature clearly shows status of the fuse
• Designed for high interrupt ratings up to two hundred kA

Product Highlights

This fuse is engineered for current limiting, with a rejection type design that ensures compatibility with holder mounts.

Product Information

Standard Information

• Manufacturer: Littelfuse
• UPC: 079458015546

Technical Specifications

• Amperage Rating: 8 A
• Voltage Rating: 600 VAC/VDC
• Interrupt Rating: 200/20 kA
• Response Time: 10 s
• Body Size: 13/16 in Dia x 5 in L
• Body Type: Cylindrical
• Element: Dual
• Terminal Type: Ferrule
