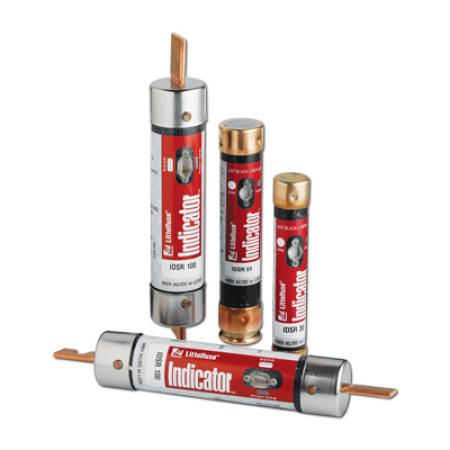

LITTELFUSE IDSR001 UL CLASS RK5 DUAL ELEMENT TIME-DELAY FUSE WITH INDICATION

Product Description

The LITTELFUSE IDSR001 is a UL Class RK5 dual element time-delay fuse featuring indication capabilities. It is designed for use in various applications where reliable circuit protection is essential. This fuse has a rating of one amp with a voltage capability of six hundred volts AC and DC. It supports a significant interrupt rating of twenty thousand at six hundred volts DC and two hundred thousand at six hundred volts AC, ensuring protection against overloads.

• UL Class RK5 fuse - suitable for general purpose applications.
• Durable cartridge/cylindrical body with a diameter of thirteen-sixteenths of an inch and a length of five inches.
• Indicating feature to display fuse status effectively.

Product Highlights

This fuse is ideal for circuits that handle motors, transformers, and solenoids, as well as fluorescent lighting and equipment with high inrush currents.

Product Information

Standard Information

• Manufacturer: LITTELFUSE
• MPN: IDSR001

Technical Specifications

• Amperage Rating: 1 A
• Body Size: 13/16 in Dia x 5 in L
• Body Type: Cartridge/Cylindrical
• Class: RK5
• Element: Dual
• Indicating/Non-Indicating: Indicating
• Interrupt Rating: 20/200 kA
• Mounting Type: Holder
• Rejection/Non-Rejection: Rejection
• Series: IDSR
• Type: Type 3AG Fast Acting
• Voltage Rating: 600 VAC/VDC
