Littelfuse HCTY08H2AF02999 Tran-75va 75

Product Description

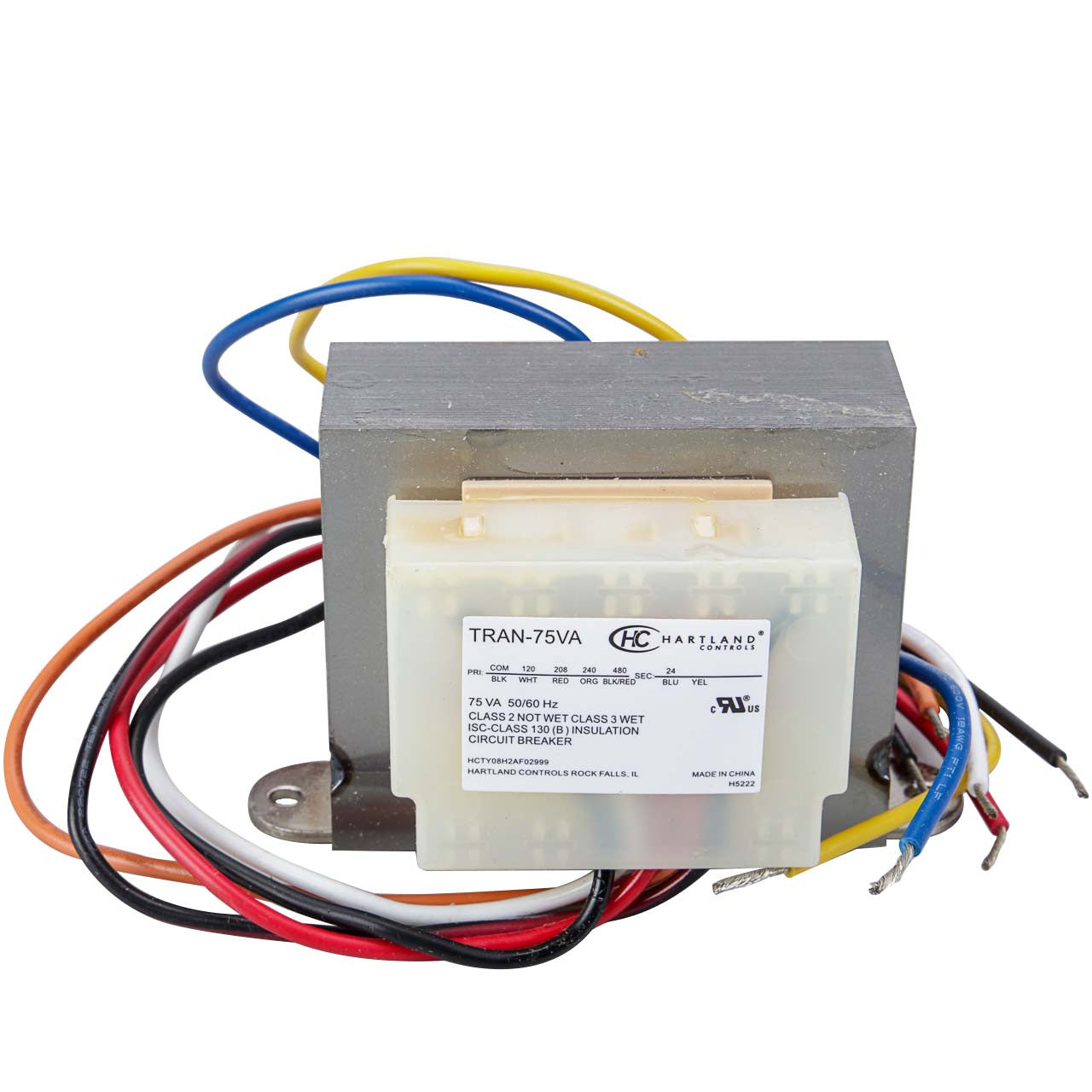

The Littelfuse HCTY08H2AF02999 is a transformer designed for changing one AC voltage to another by using magnetic induction. This transformer is ideal for various applications including HVAC systems, water pumps, pools and spas, food service equipment, and electronics. It supports a maximum power rating of seventy-five VA, with primary voltage options of one hundred twenty, two hundred eight, or two hundred forty volts, and a secondary voltage of twenty-four volts.

• Frequency of 50/60 Hz
• Chassis mount design
• Termination via wire leads

Product Highlights

The transformer requires secondary fusing for safe operation and is packaged in a box for easy handling.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: HCTY08H2AF02999

Technical Specifications

• Frequency (Hz): 50/60
• Max Power Rating: 75 VA
• Mounting Method: Chassis Mount
• Primary Voltage (V): 120/208/240
• Secondary Voltage (V): 24
• Termination Type: Wire leads
• Packaging: Box
• Special Function: Non-inherently limited, secondary fusing required
