Littelfuse H326010P Slo-Blo Ceramic Fuse 10A 250VAC (100-Pack) LFUH326010P

Product Description

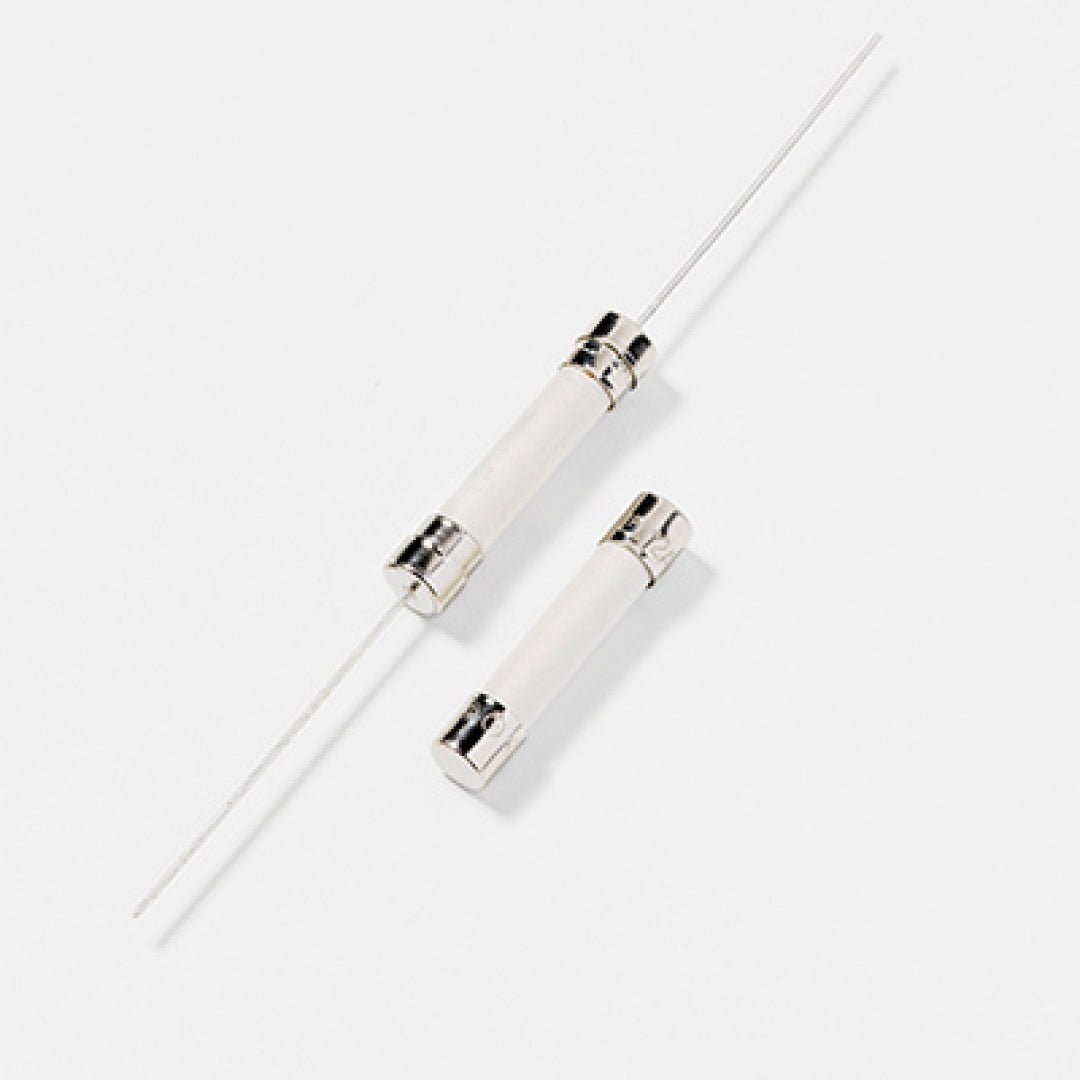

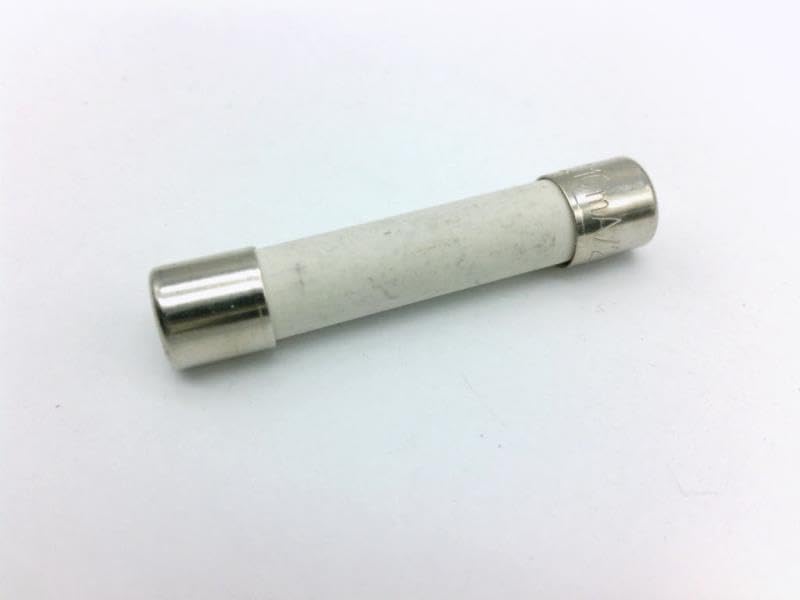

Littelfuse H326010P is a 10 A, 250 VAC Slo-Blo (time-delay) 3AB ceramic cartridge fuse that provides overcurrent protection for electronic and electrical equipment. Its time-delay characteristic tolerates temporary inrush currents while interrupting sustained overloads and short circuits. The ceramic body and metal caps enable higher interrupting and voltage ratings. Typical uses include power distribution, industrial equipment, appliances, and internal circuit protection.

• 10 A current rating, 250 VAC voltage rating; time-delay (Slo-Blo) response for inrush tolerance
• Interrupting rating: 400 A at 250 VAC; 10,000 A at 125 VAC/VDC; response time 5 to 60 s at 200%
• Ceramic 3AB body with nickel-plated brass caps and tin-plated copper leads; 0.25 in x 1.25 in dimensions; packaged in 100-pack

Product Highlights

3AB Slo-Blo ceramic cartridge fuse, 10 A 250 VAC, 400 A interrupt at 250 VAC, UL/CSA/CE/PSE, RoHS compliant, 100-pack

Product Information

Standard Information

• Brand: LITTELFUSE
• Manufacturer Part Number: H326010P
