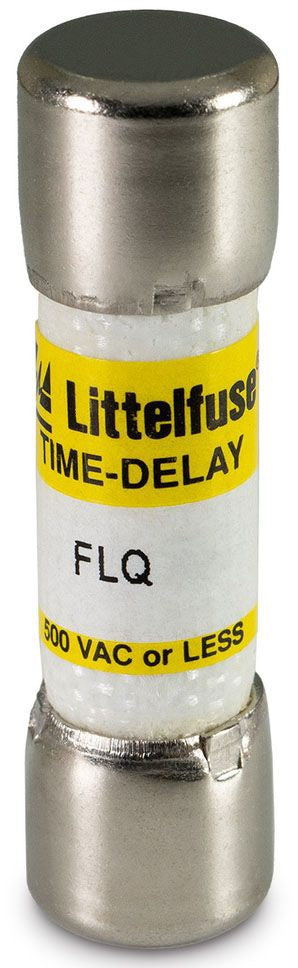

Littelfuse FLQ006 6 Amp 500 VAC 300 VDC Time Delay Midget Fuse

Product Description

The Littelfuse FLQ006 is a time delay midget fuse designed for supplemental protection in various applications. This fuse operates at six amps and can handle voltages up to five hundred AC volts and three hundred DC volts. It provides safety for control power transformers and circuits that have high inrush currents.

• High inrush current protection
• Suitable for use on circuits rated at up to four hundred eighty volts
• UL and CSA approved for reliability

Product Highlights

The FLQ006 fuse is essential for protecting small motors and control transformers, ensuring operational safety and compliance.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: FLQ006

Technical Specifications

• Voltage Rating: 500 VAC / 300 VDC
• Amperage Rating: 6 A
• Body Size: 13/32 inches Diameter x 1-1/2 inches Length
• Type: Time Delay, Non-Indicating
• Interrupt Rating: 10,000 Amperes (Symmetrical)
• Material: Melamine
• Response Time: 12 seconds
• Terminal Type: Ferrule
