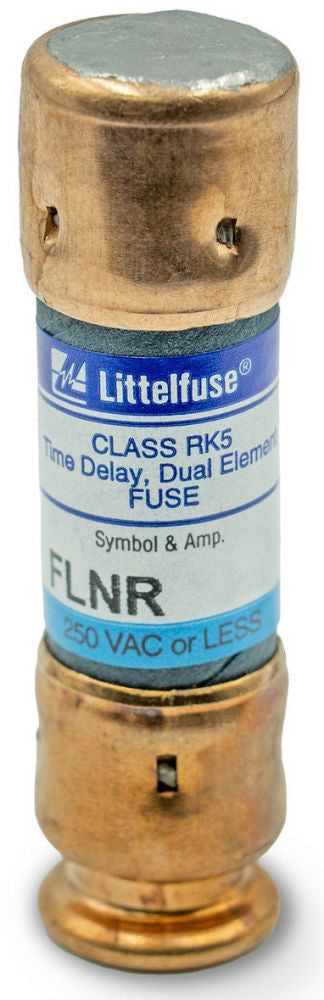

Littelfuse FLNR175 250 Volt 17.5 Amp Class RK5 Time Delay Fuse

Product Description

The Littelfuse FLNR175 is a time delay fuse rated for two hundred fifty volts and seventeen and a half amps. This Class RK5 dual-element fuse offers advanced protection against overloads and short circuits. It is ideal for use in circuits with motors, providing reliable interruption of overcurrents.

• Current Limiting: Effective for interrupting significant fault currents.
• Time Delay Feature: Reduces nuisance blowing during transient surges.
• UL and CSA Approval: Complies with essential safety standards for reliable use.

Product Highlights

Designed for general applications, the FLNR175 fuse is built to handle both motor control circuits and general purpose applications safely.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: FLNR175

Technical Specifications

• Voltage Rating: 250 VAC/125 VDC
• Amperage Rating: 17.5 A
• Interrupting Rating: 200000 A (symmetrical), 20000 A (DC)
• Body Type: Cylindrical
• Diameter: 0.56 inches
• Length: 2 inches
• Type: Class RK5
• Terminal Type: Ferrule
