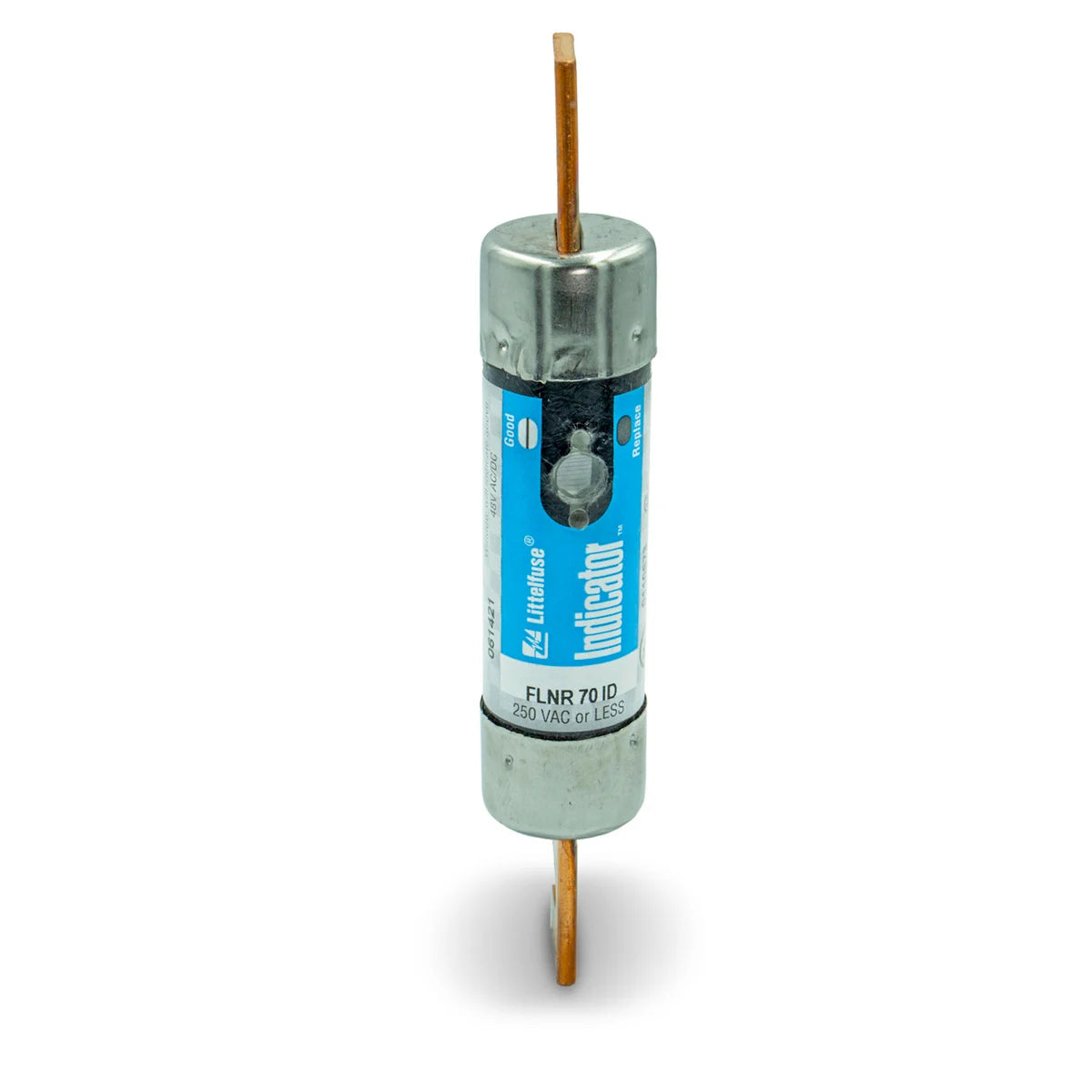

Littelfuse FLNR070ID FUSE - FLNR 70A Class RK5 Dual Element Time DL W Indication

Product Description

The Littelfuse FLNR070ID is a 70 amp dual element time delay fuse designed for reliable performance in various applications. The fuse provides visual indication when it has blown, allowing for easy troubleshooting without the need for testing. This product is suitable for service entrance switches, motor control centers, and distribution panelboards.

• 70 amp capacity with 250 VAC and 125 VDC ratings
• Time-delay characteristics for reduced nuisance openings
• Indicates blown fuses for quick resolution

Product Highlights

Designed for general purpose use, the FLNR070ID enhances safety and reduces downtime by eliminating guesswork in identifying blown fuses.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Part Number: FLNR070ID

Technical Specifications

• Amperage Rating: 70 A
• Voltage Rating: 250 VAC/125 VDC
• Type: Class RK5
• Interrupt Rating: 200/20 kA
• Size: 1-1/16 inches diameter x 5-7/8 inches length
• Response Time: 10 seconds
• Terminal Type: Knife Blade
• Material: Composite
